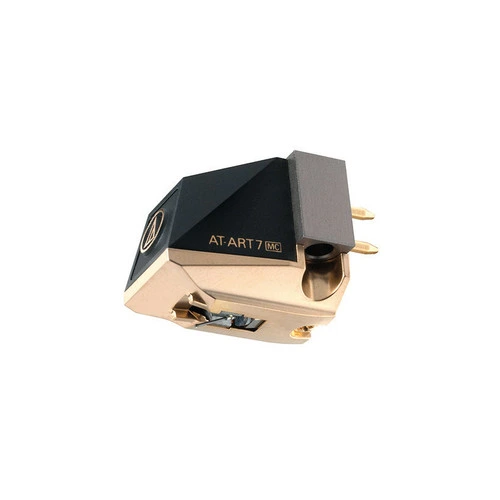

Audio Technica AT-ART7 Dual Moving Coil Cartridge

$1,089.99



Availability: In Stock
In Stock An In Stock item is available to ship normally within 24 business hours.
Preorder A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release "TBA." This means that release date is yet "To Be Announced". The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Out of Stock An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of.
Awaiting Repress Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description.
Special Order A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.
SKU:
AT-ART7
UPC:
4961310118488

Based on the limited-edition AT50ANV premium moving coil cartridge, the AT-ART7 features the same basic design but exchanges the titanium armature (coil-winding frame) for a liquid crystal polymer armature, which is both thinner and stronger and does a better job of suppressing the unwanted vibration from power generation. The cartridge’s magnetic circuit uses a large-sized neodymium magnet and is designed to maximize the strength of the intensive magnetic field in the coil gap, increasing the output voltage and enhancing playback of medium-to-low frequencies. The result is extremely natural, three-dimensional sound quality.

The cartridge’s special line contact stylus, with a 40 µm × 7 µm curvature radius and a 0.26 mm diameter solid boron cantilever, enables an extremely accurate reading of the record groove and faithful transfer of the signal from the stylus tip to the magnetic coil. The dual moving coil (fashioned from high-performance PCOCC wire) offers excellent stereo separation and improved frequency response for long-lasting performance.

The hybrid housing of machined aluminum and hard plastic, along with the machined aluminum base supporting the magnetic circuit and vibration system, reduces unwanted resonance and provides stable playback.

Features

  • Premium magnetic core moving coil type cartridge, based on the design of the limited-edition AT50ANV
  • Liquid crystal polymer armature (coil-winding frame) suppresses unwanted vibration from power generation
  • Special line contact stylus and solid boron cantilever with a 0.26 mm diameter
  • Magnetic circuit with large-sized neodymium magnet significantly increases magnetic energy
  • PCOCC used for coils and terminal pins
  • Hybrid body of machined aluminum and hard plastic, along with the machined aluminum base, reduces unnecessary resonance
  • High-separation, wide-response dual moving coil

Technical Specifications

Frequency Response 15-50,000 Hz
Channel Separation 30 (dB at 1 kHz)
Vertical Tracking Angle 23°
Vertical Tracking Force 1.6-2.0 g (1.8 g standard)
Stylus Construction Nude square shank
Recommended Load Impedance Min. 100 ohms
Coil Impedance 12 ohms (1 kHz)
DC Resistance 12 ohms
Coil Inductance 8 µH (1 kHz)
Output 0.12 mV (1 kHz, 5 cm/sec.)
Channel Balance 0.5 dB (1 kHz)
Stylus Shape Special line contact
Cantilever 0.26 mm diameter solid boron
Static Compliance 35 x 10-6 cm/dyne
Dynamic Compliance 10 x 10-6 cm/dyne (100 Hz)
Mount Half-inch
Weight 8.5 g (0.30 oz)
Dimensions 17.3 mm (0.68") H × 17.0 mm (0.67") W × 25.6 mm (1.01") D
Accessories Included Non-magnetic screwdriver; 2 washers; 2 nuts; cartridge installation screws (12 mm × 2, 18 mm × 2); plastic protector; brush; AT6101 PCOCC lead wire set

Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.

Description

Based on the limited-edition AT50ANV premium moving coil cartridge, the AT-ART7 features the same basic design but exchanges the titanium armature (coil-winding frame) for a liquid crystal polymer armature, which is both thinner and stronger and does a better job of suppressing the unwanted vibration from power generation. The cartridge’s magnetic circuit uses a large-sized neodymium magnet and is designed to maximize the strength of the intensive magnetic field in the coil gap, increasing the output voltage and enhancing playback of medium-to-low frequencies. The result is extremely natural, three-dimensional sound quality.

The cartridge’s special line contact stylus, with a 40 µm × 7 µm curvature radius and a 0.26 mm diameter solid boron cantilever, enables an extremely accurate reading of the record groove and faithful transfer of the signal from the stylus tip to the magnetic coil. The dual moving coil (fashioned from high-performance PCOCC wire) offers excellent stereo separation and improved frequency response for long-lasting performance.

The hybrid housing of machined aluminum and hard plastic, along with the machined aluminum base supporting the magnetic circuit and vibration system, reduces unwanted resonance and provides stable playback.

Features

  • Premium magnetic core moving coil type cartridge, based on the design of the limited-edition AT50ANV
  • Liquid crystal polymer armature (coil-winding frame) suppresses unwanted vibration from power generation
  • Special line contact stylus and solid boron cantilever with a 0.26 mm diameter
  • Magnetic circuit with large-sized neodymium magnet significantly increases magnetic energy
  • PCOCC used for coils and terminal pins
  • Hybrid body of machined aluminum and hard plastic, along with the machined aluminum base, reduces unnecessary resonance
  • High-separation, wide-response dual moving coil

Technical Specifications

Frequency Response 15-50,000 Hz
Channel Separation 30 (dB at 1 kHz)
Vertical Tracking Angle 23°
Vertical Tracking Force 1.6-2.0 g (1.8 g standard)
Stylus Construction Nude square shank
Recommended Load Impedance Min. 100 ohms
Coil Impedance 12 ohms (1 kHz)
DC Resistance 12 ohms
Coil Inductance 8 µH (1 kHz)
Output 0.12 mV (1 kHz, 5 cm/sec.)
Channel Balance 0.5 dB (1 kHz)
Stylus Shape Special line contact
Cantilever 0.26 mm diameter solid boron
Static Compliance 35 x 10-6 cm/dyne
Dynamic Compliance 10 x 10-6 cm/dyne (100 Hz)
Mount Half-inch
Weight 8.5 g (0.30 oz)
Dimensions 17.3 mm (0.68") H × 17.0 mm (0.67") W × 25.6 mm (1.01") D
Accessories Included Non-magnetic screwdriver; 2 washers; 2 nuts; cartridge installation screws (12 mm × 2, 18 mm × 2); plastic protector; brush; AT6101 PCOCC lead wire set

Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
