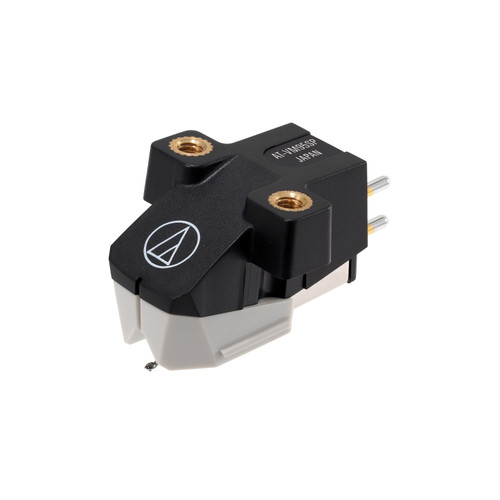

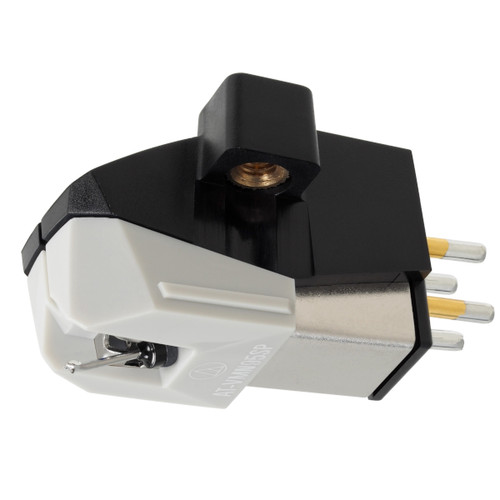

This VM95 Series cartridge with 3.0 mil conical stylus fits half-inch mount turntables. While this cartridge is designed to play 78 RPM mono records, it is, nevertheless, a stereo cartridge, allowing users to choose between the left and right channels, which can be especially helpful in archiving applications to minimize noise and distortion. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
Features
- VM95 Series dual magnet cartridge with 3.0 mil conical stylus for 78 RPM records
- Aluminum cantilever
- Durable low-resonance polymer housing
- Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts or washers required
- Compatible with any AT-VMN95 replacement stylus
Technical Specifications
| Frequency Response | 20-20,000 Hz |
|---|---|
| Channel Separation | NA |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force | 4.5-5.5 g (5.0 g standard) |
| Stylus Construction | Bonded round shank |
| Recommended Load Impedance | 47,000 ohms |
| Coil Impedance | 3.3 k ohms (1 kHz) |
| DC Resistance | 485 ohms |
| Coil Inductance | 550 mH (1 kHz) |
| Recommended load capacitance | 100 to 200 pF |
| Output | 2.7 mV (1 kHz, 5 cm/sec.) |
| Channel Balance | 1.5 dB (1 kHz) |
| Stylus Shape | 3.0 mil conical |
| Cantilever | Aluminum pipe |
| Static Compliance | 12 x 10-6 cm/dyne |
| Dynamic Compliance | 2 x 10-6 cm/dyne (100 Hz) |
| Mount | Half-inch |
| Weight | 6.1 g (0.22 oz) |
| Dimensions | 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D |
| Replacement Stylus | AT-VMN95SP |
| Accessories Included | Two 11 mm installation screws, two 8 mm installation screws, two washers |
