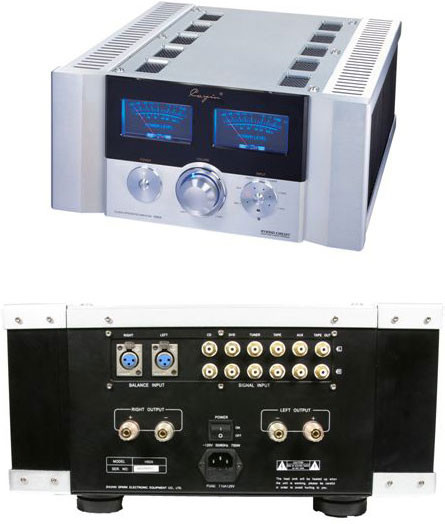

Another gorgeous, hand-crafted tube piece from Cayin, this one designed to deliver the sound of the classic McIntosh. The hybrid circuitry, originally created by Cayin, provides the perfect balance between tube and solid state electronics in an integrated amplifier. Like all Cayin components, the Cayin H-80A Integrated Amplifier is built in a heavy, solid chassis and comes with a full-function aluminum remote control. The front panel is easily navigated with simple buttons, a jog dial and dual blue back-lit VU meters. Experience the smoothness of a tube input stage. For depth and dynamics, dual Class A, 80 wpc amplifiers!
Specifications:
Power Supply: 120V AC, 50-60Hz
Inputs (Gold Plated): (4) pair RCA fixed level inputs, (1) pair RCA for Pre In, (1) pair Tape In, (1) pair Tape Out
Remote Control: Full function including Triode and Ultralinear Mode. Also Preamp Bypass for using A-300B as a power amp
Power Cord: Detachable power cord with IEC chassis mount receptacle
Tube Compliment: Two 12AU7 Input Tube
Power Output (8 ohms): 80W+80W 8, Class A type; 150W+150W 4, Class A/B type
Frequency Response: 10Hz-40kHz
THD: less than 0.2% 1kHz, 80W, 8
S/N Ratio: 91dB
Input sensitivity: 380mv
Input impedance: 100kOhm (RCA)
Output impedance (WBT Style): 4, 8, 16 Ohm
Power consumption: 280W
Weight: 80 lbs
Dimensions (WxDxH): 17" x 19" x 8"
Other: Dual 450W power transformers, Extra large cooling radiator, Black acrylic decorated panel, Heavy duty knockdown amp feet, each foot can adjust the height independently, Index type peak VU value ampere meter with blue background light
Warranty
90 day guarantee for the tubes, 2 year parts & labor (shipping not included)
Click Here for a downloadable PDF file!
