Certified Pre-Owned! You save $900!
Educes the Music Reality and Even the Artist's Passion

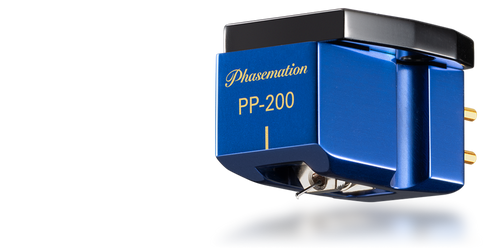

To respond to the demand for a new basic model of Phasemation cartridges, they've created the PP-200, which allows you to feel the essence of Phasemation's top model. The PP-200 has been refined in detail while maintaining the basic performance. The PP-200 pursues the same sound image localization, spatial reproducibility, fresh mids and highs, and a rich bass that are inherited from the upper model.
Features
- Adopted neodymium magnets for the magnetic circuit. Brought about an increase in output along with powerful sound quality.
- Improved the vibration system which enhanced the tracking ability. Improved the tracing capability.
- Inherited high sound quality materials that were proven in PP-2000 and other models such as diamond stylus tips, cantilevers made of solid boron material, and 6N oxygen-free copper wires for the generator coil.
- Adopted a newly shaped body to control unwanted vibrations and achieved a direct sound quality.
Technical Specifications
| Power Generation Method | Moving Coil Type |
|---|---|
| Impedance | 4 ohm |
| Appropriate Stylus Force | 1.7 to 2.0g |
| Output Voltage | 0.3mV (1kHz 50mm/s horizontal direction) |
| Compliance | 8.5μ/mN [8.5x10-6cm/dyne] |
| Playing Frequency Range | 10 Hz to 30 kHz |
| Separation | 25dB (1kHz) |
| Channel Balance | Within 1dB (1kHz) |
| Cantilever | Pure Boron Ø0.26mm |
| Stylus Chip | Diamond (line-contact / curvature 0.03×0.003mm) |
| Magnet | Neodymium |
| Magnetic Circuit Material | Pure Iron |
| Base Material | Machined Duralumin |
| Body Material | Machined Aluminum |
| Weight | 10.5g |
