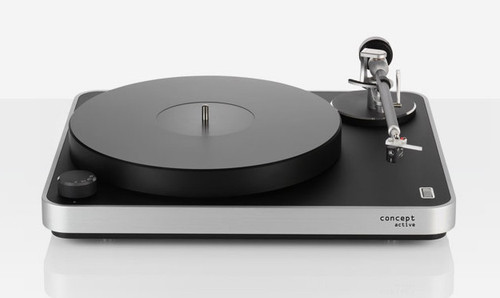

Clearaudio's All-In-One System, Ready to Play
The concept active package (also available in a 'wood' version) is available with either Clearaudio's innovative, frictionless, magnetic bearing concept tonearm or their Satisfy Kardan Aluminium tonearm. Choose too, from Clearaudio's specially developed moving magnet (MM) or moving coil (MC) concept cartridges.
All critical parameters from cartridge tracking weight to anti-skating are preadjusted in Clearaudio's factory. With the concept active's integrated Clearaudio phonostage, move between headphone listening and listening over amp through your speakers.
The excellent integrated headphone amplifier is suitable for all premium, dynamic headphones.
Technical Specifications
| Construction Details | Resonance-optimised body, highly compressed wood chassis, core of natural medium-density wood fibre within an aluminium surround and upper layer incorporating a high tech synthetic compound |
| Speed ranges | 33 ⅓, 45 and 78 rpm |
| Drive unit | Decoupled and resonance damped DC motor, flat belt-drive and plug-in power supply unit designed for worldwide use with all networks and power frequencies |
| Bearing | Polished and tempered steel shaft in a sintered bronze bushing, runs on a mirror of Teflon |
| Platter | Synthetic material, CNC-precision milled surface, 30mm thickness / 1.18 inch. Aluminium subplatter. |
| Speed accuracy (measured) | ± 0.05 % |
| Power consumption | Max. consumption: 5.5 Watt
Off mode: 0.0 Watt |
| Of the integrated phonopreamp by 1kHz | +52 dB (MM mode)
+72 dB (MC mode) |
| Amplification of the integrated phonopreamp by 1kHz | < 0,02 % (MM mode)
< 0,03 % (MC mode) |
| THD of the integrated phonopreamp | -74 dB (MM mode)
-64 dB (MC mode) |
| S/N of the integrated phonopreamp | ± 0,5 dB |
| RIAA accuracy of the integrated phonopreamp | 47 kOhm |
| Max. output voltage of the integrated phonopreamp | < 10V |
| Total weight | Approx. 7.6kg (incl. tonearm and cartridge) |
| Dimensions (W/D/H in mm) | Approx. 420 x 350 x 125 (with tonearm) |
| Warranty | 2 years*
* Provided the warranty card is fully completed and returned to Clearaudio within 2 weeks of purchase. |

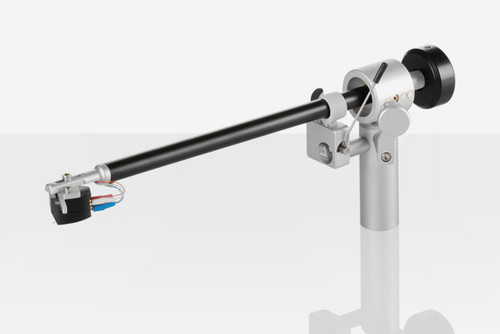

Satisfy Kardan Tonearm
Designed for use with a wide range of turntables and cartridges, the award-winning Satisfy Kardan incorporates a range of features normally associated with some of the very best tonearms.
A precise, magnetic antiskating adjustment with a gentle sensitiveness, without mechanic disturbance - for pure music.
Become a witness of revolutionary direct wiring, where the signal travels uninterrupted from the cartridge to the Phono-preamplifier.
Only a few amongst the best offer this feature - it's one of a kind.
Technical Specifications
| Construction Details | Unique dual oint desn, magnetic antiskating control |
| Cartridge balance range | 2.5 gram - 17 gram |
| Zero points | Inner: 66.0 mm
Outer: 120.9 mm |
| Audio lead | Clearaudio Direkt Wire Plus (1.1 m)
terminated with MPC Cinch |
| Overhang | 17.31 mm |
| Overall length | 302 mm |
| Effective length | 239.31 mm |
| Distance from pivot | 222 mm |
| Tilt angle | 25.54 ° |
| Maximum Tilt angle according to the radius | 0.123 °/cm |
| Anti-skating factor at a radius of 62.9 mm and 126.9 mm | 0.43 |
| Total weight | Satisfy Kardan Black Aluminum: 350 gram |
| Warranty | 2 years*
* Provided the warranty card is fully completed and returned to Clearaudio within 2 weeks of purchase. |

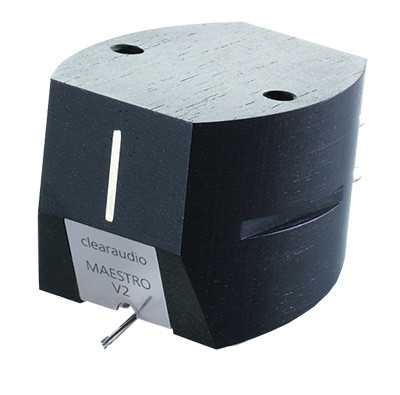

Maestro V2 Moving Magnet Cartridge
Clearaudio's V2 MM technology uses ebony as a resonance-resistant body. Other ingredients of the recipe for success are the most effective reduction of moving mass, an optimized polishing technique for the stylus and highly effective cartridge damping.
The Clearaudio V2 moving magnet cartridges are meticulously measured, analysed, and hand-selected into four performance levels. In this way Clearaudio achieves the best stereo channel matching, minimum phase error and distortion, flattest frequency response and highest dynamic range at each price point.
The cartridges produce an audiophile sound of superlative quality - spatially detailed and vividly textured, with bass that does not wallow and treble that is not harsh. The models of the Clearaudio MM V2 series provide outstanding sound quality on all current tonearms.
With the exception of the MM concept V2, which is made of aluminium, all the cartridges in this series are made with housings of hand-polished ebony - the key to record-breaking weight values.
Technical Specifications
| Total mass | 8.4g (± 0.4g) |
| Frequency response | 20Hz - 20kHz |
| Output voltage (1kHz, 5cm/s) | ~ 3.6mV |
| Channel separation (1kHz) | 28dB |
| Channel balance (1kHz) | 0.3dB |
| Tracking ability | 90μm |
| Recommend tracking force | 2.2g ± 0.3g |
| Coil impedance (1kHz) | 0.66kΩ |
| Coil inductance | 400mH |
| Load resistance | 47kΩ |
| Load capacitance | 100pF |
| Cantilever / stylus shape | Boron / HD Diamond |
| Compliance | 16μ/mN |
| Cartridge body | Ebony wood |
| Manufacturer's warranty | 2 years |
