The Best Concept
Clearaudio's vision for the concept: design an elegantly styled turntable package featuring a level of groundbreaking technology usually only found in high-end turntables, combining plug-and-play simplicity with outstanding sound quality and affordability.
Turntable Details

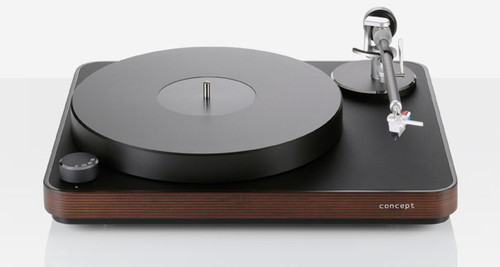

Beneath the sleek, contemporary exterior is a level of technical sophistication unique to Clearaudio.
The concept's body is carefully crafted from medium-density wood fiber (or, optionally, pressure-formed solid wood) with a selection of smart made-to-match surface finishes. The body's upper layer incorporates a special high-tech satined plastic compound designed to minimize unwanted resonance.
The DC motor is fed by an external voltage-stabilized power supply and is completely decoupled from the turntable's body to ensure no mechanical interference.
The concept tonearm features a magnetic bearing that is friction-free for extremely low distortion and superb performance. The package is completed with the high quality concept MM or concept MC cartridge (Upgrade possible).
Innovative, high-performing, user-friendly and affordable. Now that's what Clearaudio calls an unbeatable concept.
Concept Specifications
Construction Details | Resonance-optimized bodywork; body comprises medium-density wood fibre or pressure-formed solid wood; upper layer incorporates high-tech satined plastic compound. |
---|---|
Speed ranges | Electronic speed selection, 33 ⅓, 45 rpm (78 rpm optional) |
Drive unit | Decoupled and resonance damped DC motor, flat belt-drive and plug-in power supply unit designed for worldwide use with all networks and power frequencies. |
Bearing | Polished and tempered steel shaft in a sintered bronze housing, running on a Teflon thrust-pad. |
Platter | Synthetic material, CNC precision milled surface; 30mm / 1.18 inch thickness; aluminum sub-platter |
Speed variation | ± 0.05 % |
Power consumption |
|
Weight | Approx. 7.5kg / Wood: 7.9kg (incl. motor, tonearm and cartridge) |
Dimensions (W/D/H in inches) | Approx. 16.54 x 13.78 x 4.92 (with tonearm) |
Dimensions (W/D/H in mm) | Approx. 420 x 350 x 125 (with tonearm) |
Warranty | 2 years*
* Provided the warranty card is fully completed and returned to Clearaudio within 2 weeks of purchase. |

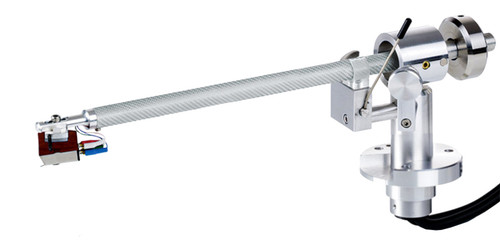

Satisfy Specifications
Construction Details | Unique dual point design, magnetic antiskating control |
---|---|
Cartridge balance range | 2.5 gram - 17 gram |
Zero points | Inner: 66.0 mm
Outer: 120.9 mm |
Audio lead | Clearaudio Direkt Wire Plus (1.1 m)
terminated with MPC Cinch |
Overhang | 17.31 mm |
Overall length | 302 mm |
Effective length | 239.31 mm |
Distance from pivot | 222 mm |
Tilt angle | 25.54 ° |
Maximum Tilt angle according to the radius | 0.123 °/cm |
Anti-skating factor at a radius of 62.9 mm and 126.9 mm | 0.43 |
Total weight | 345 gram |
Warranty | 2 years*
* Provided the warranty card is fully completed and returned to Clearaudio within 2 weeks of purchase. |

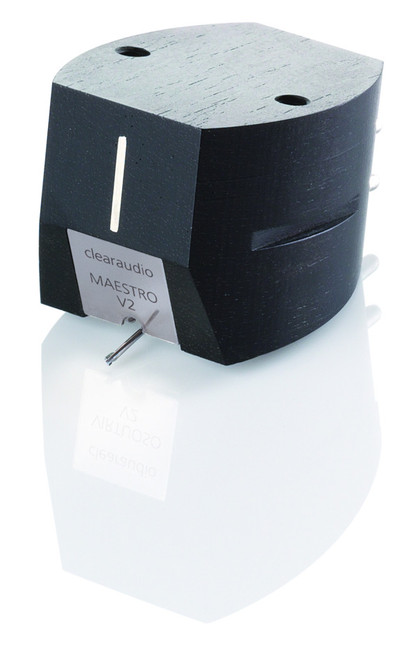

Maestro Specifications
Total mass | 8.4g (± 0.4g) |
---|---|
Frequency response | 20Hz - 20kHz |
Output voltage (1kHz, 5cm/s) | ~ 3.6mV |
Channel separation (1kHz) | 28dB |
Channel balance (1kHz) | 0.3dB |
Tracking ability | 90μm |
Recommend tracking force | 2.2g ± 0.3g |
Coil impedance (1kHz) | 0.66kΩ |
Coil inductance | 400mH |
Load resistance | 47kΩ |
Load capacitance | 100pF |
Cantilever / stylus shape | Boron / HD Diamond |
Compliance | 16μ/mN |
Cartridge body | Ebony wood |
Manufacturer's warranty | 2 years |
