Save 25% on this demo turntable! Only 1 available at this price! There is a crack in the dustcover (pictured). The cartridge is new, less than 30 min of play time for testing purposes!
The Music Hall US-1 comes with the Ortofon 2M Red Cartridge mounted on SH-4 Black Headshell professionally installed!
This item not eligible for any further discount offers!

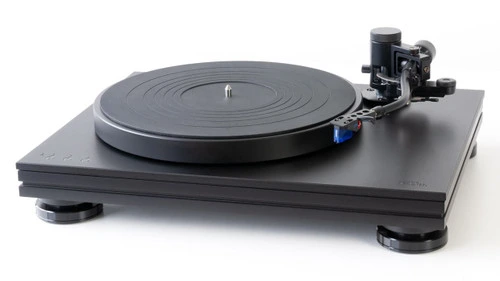

Music Hall's US-1 Turntable with Ortofon 2M Red MM Cartridge (mounted on SH-4 Black Headshell) is a convenient, easy to use, and fun turntable. It's a snap to set up and comes with everything you need to start spinning vinyl.
Whether you're looking to release your inner DJ, or simply discover the joy of spinning vinyl, the US-1 is your answer. The US-1 has a built-in phono preamp, cartridge, dust cover, and includes all necessary cables and software required for simple plug and play operation.
Features
- Extremely quiet belt drive, 2-speed turntable
- Aluminum die-cast platter
- 33 1/3 and 45 rpm playback speeds
- High gloss black finish
- Built-in phono amp or direct line out
- Static balanced S-shaped tonearm w/detachable headshell
- Ortofon 2M Red (mounted on SH-4 Black Headshell) moving-magnet cartridge supplied
- Anti-skating control for increased stereo balance
- +/- 10% adjustable pitch control
- Dust cover included
- Designed and developed in the US and France
- w17.7 x d13.8 x h5.7 in.
- 12 lbs. pkg.
- Includes: 1 year manufacturer warranty
Technical Specifications
General
| Model: | US-1, Professional Belt Drive Turntable |
|---|---|
| Dimensions | 450(W) x 350(D) x145 (H) mm |
| Weight | 4.4Kgs |
| Power Supply: | Dual Voltage: AC 115V~60Hz/230V~50Hz, User Selectable |
| Power Consumption: | 8W |
| Standard Test Condition: | Ambient Temperature: 23+/- 2 Degrees C |
| Relative Humidity: | 65% +/- 5% |
Turntable Section
| Type | 2-Speed Full Manual |
|---|---|
| Motor | DC Motor |
| Driving Method | Belt Drive |
| Turntable Platter | 330mm dia. Aluminum |
| Speeds | 33 1/3 and 45rpm |
| Wow and Flutter | Less than 0.25% WRMS (JIS WTD) with 33 1/3 rpm |
| S/N Ratio | More Than 50dB (DIN-B) |
| Pitch Controls | +/- 10% |
| Starting Time | Less than 1 sec. with 33 1/3 rpm |
| Braking Time | Less than 1 sec. with 33 1/3 rpm |
| Time for Speed Change | Less than 1 sec. from 33 1/3 to 45 rpm / Less than 1 sec. from 45 to 33 1/3 rpm |
| Speed tolerance at pitch=0 | Within +/-1.3% |
Tonearm Section
| Type | Static balanced S-shaped tonearm with detachable headshell |
|---|---|
| Effective Arm Length | 220 mm |
| Tracking Error Angle | Less than 3 degree |
| Applicable Cartridge Weight | 6~10g |
| Anti-skating Range | 0~4g |
| Phono Output Level | 1.5~3.6 mV at 1KHz 5cm/sec (HP-4005) |
| Line Output Level | 90~216mV at 1KHz 5cm/sec (HP-4005) |
| Frequency Response | 20Hz-20KHz |
| Channel Separation | More than 15dB |
| Channel Balance | Within 2.5dB at 1KHz |
| Needle Pressure range | 3~4g |
| High of cue (first track) | 6~10.5mm |
| Descend of cue | 1~3 sec |
EQ AMP
| Output | 150mV +/-4dB (IN: 2.5 mV 1KHz) |
|---|---|
| RIAA | 20Hz~20KHz +1/-3dB (IN: 1.5 mV 1KHz) |
Cartridge Specifications
| Output voltage at 1000 Hz, 5cm/sec. | 5.5 mV |
|---|---|
| Channel balance at 1 kHz | 1.5 dB |
| Channel separation at 1 kHz | 22 dB |
| Channel separation at 15 kHz | 15 dB |
| Frequency range at - 3dB | 20-22.000 Hz |
| Frequency response | 20-20.000 Hz + 3 / - 1 dB |
| Tracking ability at 315Hz at recommended tracking force | 70 µm |
| Compliance, dynamic, lateral | 20 µm/mN |
| Stylus type | Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Tracking force range | 1.6-2.0g (16-20 mN) |
| Tracking force, recommended | 1.8 g (18 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 1.3 kOhm |
| Internal inductance | 700 mH |
| Recommended load resistance | 47 kOhm |
| Recommended load capacitance | 150-300 pF |
| Cartridge colour, body/stylus | Black/Red |
| Cartridge weight | 7.2 g |
| 2M PnP MkII cartridge with integrated headshell weight | 20 g |
| 2M PnP MkII cartridge with integrated headshell length | 52 mm |
| Replacement stylus unit | 2M Red (interchangeable with 2M Blue and 2M Silver) |
