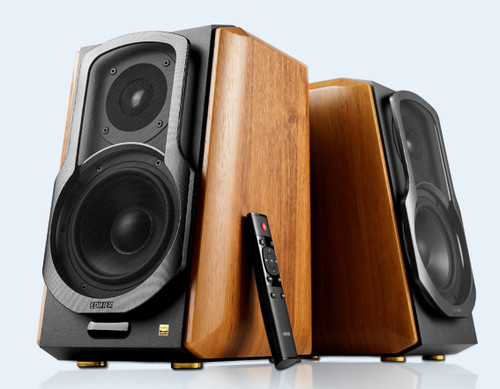

Hi-Fi Acoustic System with True Stereo Sound!
The 1" titanium diaphragm dome tweeters reproduce high frequency up to 40kHz, conveying crisp treble. The aluminum alloy diaphragm of 5.5" mid-bass drivers features fast transient response and low acoustic distortion, which produces clear mid-range and strong bass.
Less Resonance with Minimum Distortion!
Quality wooden enclosure minimizes acoustic resonance and further reduces distortion. The inclined front panel enables the drivers to direct sound right to your ears.
216kHz Digital Audio Interface Transceiver (DIX) with Stereo ADC and Routing.
The DIX supports the transmission and reception of digital signals with a bit depth and sampling rate up to 24bit/216kHz. The integrated ADC supports the conversion of analogue signals into digital signals with a bit depth and sampling rate up to 24bit/96kHz, as well as with the dynamic range up to 101dB. Using the RCA input, you can still enjoy high quality sound.
Stereo Audio CODEC with Embedded miniDSP.
The codec supports stereo signals with a sampling rate up to 192kHz. Its embedded miniDSP precisely performs the dynamic range management and active crossover control. Using the optical input or coaxial input, you can enjoy lossless sound reproduction.
Dual Digital Input Class-D Audio Amplifiers.
The high-efficiency audio amplifiers support stereo signals with a sampling rate up to 192kHz. Each of two audio amplifiers enhances 2-way treble signals and mid-range / bass signals and transmits to the tweeter and the mid-bass driver respectively. With the high PWM frequency up to 768kHz, the distortion and noise can be minimized.
Bluetooth Connectivity for Seamless Music Streaming.
Qualcomm® aptX™ HD is supported. Enjoy high-quality music with the bit depth and sampling rate up to 24bit/48kHz.
Multiple interfaces are available for the connection to different audio sources. Enjoy the music from Optical, Coaxial, and Line In, just as you like. The knobs on the rear panel and the remote control, easily operate the product and enjoy full functions
Craftsmanship Inherited for a Long-lasting Classic:
Designed with dedication. Converted from critically selected materials, and carrying exquisite craftsmanship, this product proves itself as classic.
Features
- Hi-Fi 2.0 Active Bookshelf Speakers
- Wooden Side Panels and Black Matte Finish
- Advanced Titanium Dome Tweeter
- Connect Wirelessly with Bluetooth aptX®
- 216kHz Digital Audio Interface Transceiver (DIX) with Stereo ADC & Routing
- Stereo Audio CODEC with Embedded miniDSP
- Dual Digital Input Class-D Audio Amplifiers
Technical Specifications
Signal-to-Noise-Ratio | >90dB(A) |
---|---|
Frequency Response | 48Hz~20KHz, 45Hz~40KHz |
Treble Unit | 1 inch |
Midrange / Bass Unit | 5.5 inch |
Dimensions | 198mm x 343mm x 276mm |
Power Output | RMS 25Wx2(Treble) + 35Wx2 (Mid-range and bass) |
Input Types | Line 1, Line 2, Optical, Coaxial, Bluetooth |
PC | 900 ± 50mV |
AUX | 700 ± 50mV |
OPT, COX | 350 mFFs ± 50 mFFs; Bluetooth: 450 mFFs ± 50 mFFs |
Bluetooth Version | 5.0 |
