The MMF-11.3SE with Project 9CC Evolution Tonearm & Four-Plinth Design is Music Hall's Flagship Turntable!
Call for Special Package Pricing: 1-800-782-3472 or 1-765-608-5340.
A cartridge is not included with this turntable, but you can add any cartridge we sell! Call us today!
All cartridges available professionally installed and adjusted! Click Here for available cartridges!

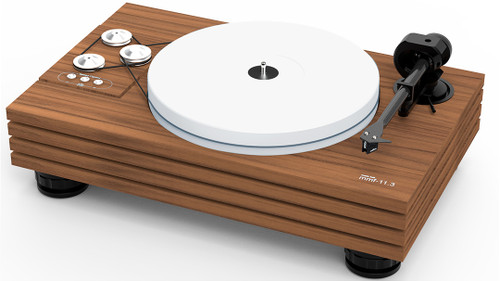

The Music Hall MMF-11.3SE Turntable, their flagship model, is a 2-speed belt driven audiophile turntable featuring the unique quadruple-plinth construction originated by Music Hall. The distinctive design isolates the critical sound reproducing components; platter, main bearing, tone arm, and cartridge on the top platform from the adjustable magnetic-levitation feet, microprocessor speed control, motors, flywheel, and wiring which are mounted to the bottom plinth.
The Music Hall MMF-11.3SE Turntable's motors, flywheel, and speed control are further isolated on their own vibration damped dual-plinth platform which is isolated from the upper three main plinths. Sorbothane hemispheres separate each of the three main plinths and provide additional vibration damping. The bottom plinth operates as a mass-loaded resonant sink for the entire turntable. Two motors and a flywheel are used to increase torque and speed stability. The Music Hall MMF-11.3 Turntable comes in a high-gloss piano black lacquer finish and ships without cartridge. A large encapsulating acrylic dust cover is included.
"The Music Hall MMF 11.3 is the company's most expensive turntable andÂ… also their best. It produced a pleasingly smooth, well-detailed sonic picture that makes up in relaxation and long-term listenability what it gives up in terms of transient attack speed and precision and ultra-tight punchy bassÂ… if you listen mostly to acoustic music-jazz, folk and classical-it's definitely worthy of your attention." -Analog Planet
Features:
• Music Hall's Unique Quadruple-Plinth Design w/Sorbothane Vibration Isolation
• One-Piece Project '9CC Evolution' Carbon Fiber Tonearm
• Tonearm uses four Hardened Swiss ABEC 7 Ball Races in an Inverted Bearing Design
• Tonearm is Internally Wired with Flexible Wire drawn from High Purity Copper with only two contact points from cartridge to output connectors
• Counterweight’s center of gravity is level with the stylus tip is decoupled from the arm and acts as a resonance damper
• Fully adjustable azimuth, VTA, and dampened arm lift
• Exclusive microprocessor electronic speed controlled dual motor single flywheel drive system
• 33 1/3 and 45 rpm speed change at the touch of button
• Motors and flywheel assembly are isolated on mass loaded resonant sink connected to the lower plinth
• Dual motor flywheel system sits on the left side of the turntable thus eliminating all motor and belt vibration from the cartridge

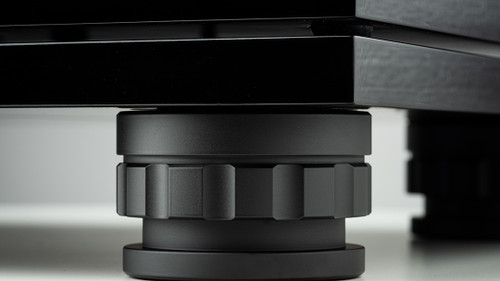

• Magnetic-levitation adjustable feet
• Inverted ceramic main bearing for super quiet fluid operation
• Thick acrylic platter
• Removable acrylic dust cover
• High quality gold RCA connectors with detachable phono cable
• Low noise fully manual belt-drive design, dust cover, 45rpm adaptor
• Ships securely in a substantial wood box
• Excellent instruction manual and easy assembly
Specifications:
Speed of turntable: 33 1/3 or 45 RPM
Change speed: Electronically, luminous buttons
Deviation speed: Less Than +/-0.1%
variance speed: Less Than +/-0.08%
Mechanical distance: Greater Than -45dB
Electrical distance: Greater Than -65dB
Drive: Silicone belt over pulley
Motor: 2 x synchronous motors, the motor is controlled via microprocessor
Platter: Acrylic (11.8 in.) Weight – (7.4lbs.)
Power: Switching power supply (90 – 246 VAC, 47-63Hz) type EU,UK,USA
Electric input: 23W DC
Effective arm length: 9in. (230 mm)
Effective arm mass: 8.5g
Mounting distance: 8.3 in (212 mm)
Overlap: 0.71 in (18 mm)
Angle crank: 24 Degrees
Course zero error angle: 130.5, 243.7
Force on the tip: 0-3g
Material of plinth: MDF
Material of belt: silicone rubber
Dimensions: 21.3 x 13.8 x 7.8 in (540 x 350 x 197 mm)
Weight: 39.5 lbs. (17.9 kg)
Click Here for the Music Hall MMF-11.3 Turntable Manual!
