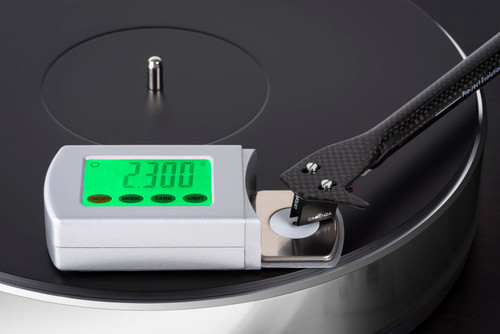

Electronic Stylus Balance
The Measure it S2 Stylus Tracking Force Gauge is a highly accurate electronic balance that is designed for measuring stylus tracking forces up to 5.0 grams in 0.001 gram increments. Each Measure it S2 can easily be calibrated with the included calibration weight. The Measure it S2 has a solid aluminum housing with a 4-digit LCD backlit display. Whenever in doubt about the actual amount of pressure on the diamond tip the 4 digit display of this smart tool will help. Armed with precise information about tracking force, your stylus tip wear can be significantly reduced.
Scope of Delivery
- stylus balance
- calibration weight
- screwdriver
- 2x AAA batteries
- protection case for the meter
- user guide
Features
- 4 digit LCD-Display with backlight
- Capacity 0 - 5g
- Variance ±0,001g
- Auto calibration function
- Auto off after 60 seconds
- Replacement batteries supplied
Technical Specifications
Capacity | 0 - 5g |
Variance | ±0,001g |
Weighting modes | gram (1g = 10mN), ounce (oz), pennyweight (dwt) and carat (ct) |
Display | 4 digit LCD with backlight |
Calibration | Auto calibration using a 5g weight |
Auto off | 60 seconds off |
Replacement battery | 2 x AAA cells, 1,5V |
Operating temperature | +10 - +30°C (50 - 86 degrees Fahrenheit) |
Dimensions (W x H x D) | 122 x 27 x 55mm |
Weight | 170g |
