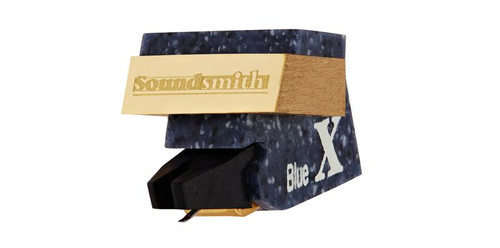

Soundsmith Irox Blue Cartridge 2.12mV (Elliptical Titanium Bonded Stylus) 1
Brand: Soundsmith

Share:

Soundsmith Irox Blue Cartridge 2.12mV (Elliptical Titanium Bonded Stylus)

$999.95

Availability: In Stock
In Stock An In Stock item is available to ship normally within 24 business hours.
Preorder A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release 'TBA.' This means that release date is yet 'To Be Announced'. The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.

SKU:
SSMIIROXB
UPC:
SSMIIROXB
Adding to cart… The item has been added

Made in the USA.

Trade-Up Pricing: Receive a credit valued at 30% of the original retail price of a Soundsmith moving iron cartridge towards the purchase of a new Soundsmith moving iron cartridge of equal or greater value.

All original owners of this cartridge are eligible for a rebuild done by Soundsmith directly!
$180 ~ Only 20% (or less) of MSRP!
Click here to fill out Soundsmith's Cartridge Rebuild Form

2 year warranty to the original owner.

The Irox Blue features a two-year warranty to the original owner.

Soundsmith introduces two levels of performance in "unbreakable" designs. A perfect solution for heavy duty use, parties, institutions, and anywhere there is a potential handling issue or danger of misuse.

Enter the IROX series. High and ultra-high performance from a low-mass moving iron design that will make you a believer.

Also available in dual-coil mono for $300 additional.

Technical Specifications

Type Fixed Coil / Moving Iron
Mount Standard ½"
Stylus Elliptical Titanium Bonded, 0.20 mm round
Radius of Curvature 6 x 17 µm
Cantilever Aluminum Alloy
Recommended Tracking Force 2.0 - 2.5 g
Effective Tip Mass 0.55 mg
Compliance 10 µm/mN
Frequence Response 20 - 20,000 Hz ± 2.5 dB
Channel Separation @ 1000 Hz > 26 dB
Channel Separation @ 50 - 15,000 Hz > 20 dB
Channel Difference < 1.6 dB
Output Voltage @ 5cm/sec > 2.12 mV
DC Resistance (DCR) 680O
Coil Inductance per channel 190 mH
Suggested Preamp Gain 38 - 44 dB
Cartridge Weight 10.25 g
Recommended Load Resistance = 47kO
Recommended Load Capacitance n/a
