Clearaudio Absolute Phono Active Headshell MC Phonostage (Silver)
Clearaudio Absolute Phono Active Headshell MC Phonostage (Silver) Clearaudio Absolute Phono Active Headshell MC Phonostage (Silver)

Share:

Clearaudio Absolute Phono Active Headshell MC Phonostage (Silver)

$14,999.99



Availability: In Stock
In Stock An In Stock item is available to ship normally within 24 business hours.
Preorder A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release "TBA." This means that release date is yet "To Be Announced". The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.
SKU:
CLEAABSPS
UPC:
CLEAABSPS

Special order: typically ships in 2-3 weeks.

This product can only be shipped to U.S. addresses.

Requires a Clearaudio tonearm and any moving coil cartridge to function.

The world's first active headshell moving coil phonostage

Clearaudio's absolute phono is the world's first active headshell moving coil phonostage. A tiny circuit board installed in the headshell of the tonearm amplifies the highly sensitive output signal from the cartridge at its source. Now the delicate signal only has to travel a few millimeters rather than along the usual 1-2 metres of internal and external arm wiring before being amplified to a more resilient level. This amplified signal then passes to the specially designed main RIAA phonostage, along a signal path free of the usual relays and coupling capacitors, which again enables a more clean, pure and accurate sound. The signal is then equalized and fed to both unbalanced RCA and balanced XLR outputs, each with its own output driver to ensure the utmost fidelity. The result? The signal to noise ratio is improved by approximately ten decibels across the entire audio spectrum.

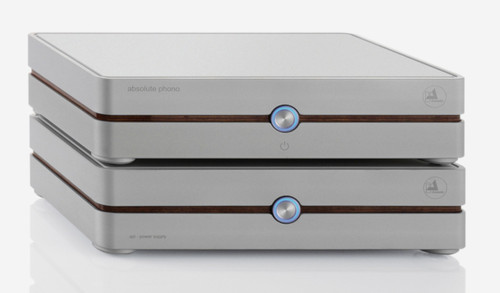

The absolute phono is built without compromise, incorporating an anti-resonance sandwich construction machined from solid blocks of aluminium and panzerholz wood. The sophisticated power supply, located in a separate chassis, keeps mains interference to a minimum. Hand-selected state-of-the-art nonmagnetic silver Clearaudio Glimmer capacitors positioned at key areas of the circuit further ensure excellent clarity and purity of sound. A single multi-function switch for 'On', 'Off' and 'Mute' modes ensures a sleek finish.

The absolute phono is suitable for all Clearaudio tonearms and is designed to work perfectly with any moving coil cartridge from any manufacturer. This is ensured due to the selected current amplification control which eliminates the need to set the correct load resistance and load capacitance. The optimum operating condition is always set automatically.

Technical Specifications
Power Supply: Switching power supply, Input: 50 – 60 Hz / 100 - 265 V AC
Signal To: Noise: Ratio: 90 dB (A-weighted)
Channel Separation: 100 dB
Thd: < 0,001 %
Gain: (@ 1KHZ) 60 dB
RIAA: RIAA standard, deviation less than 0.1 dB
Output: Impedance: 64 Ohm (balanced XLR), 32 Ohm (unbalanced RCA)
Input: D-Sub
Power: Consumption: Consumption in operation: 3.2 Watt, Off mode: 0.0 Watt
Total Weight: approx. 3.25 kg (Preamplifier), approx. 3.20 kg (Power supply)
Dimensions: (W/D/H in inches) Phonostage: approx. 9.45 x 6.30 x 2.56, Power Supply: approx. 9.45 x 6.30 x 2.56
Dimensions: (W/D/H in mm) Phonostage: approx. 240 x 160 x 65, Power Supply: approx. 240 x 160 x 65

Warranty: 1 year, extended to 5 full years with the return of warranty form and receipt to Clearaudio within 2 weeks of purchase.
