Brand: Audio Technica

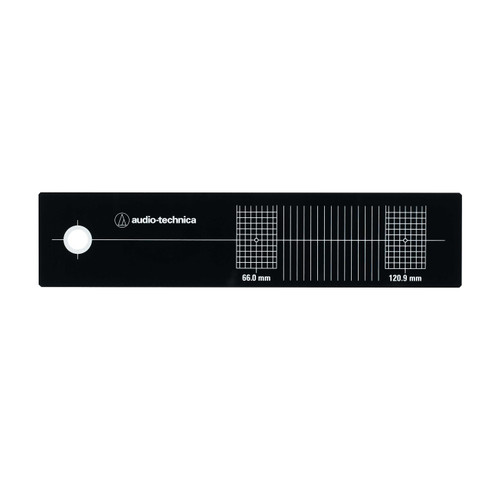

Audio Technica AT-CAP1 Cartridge Alignment Protractor

$17.00

Availability: In Stock

In Stock	An In Stock item is available to ship normally within 24 business hours.
Preorder	A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release 'TBA.' This means that release date is yet 'To Be Announced'. The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered	An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress	Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On	When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order	A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.

SKU:

AT-CAP1

UPC:

4961310164560

Current Stock:

QTY:

Adding to cart… The item has been added

Description

This protractor uses the common Baerwald alignment method* to set a phono cartridge's offset angle and null points (the two points where the stylus tip is perfectly aligned with the record groove). Cartridge alignment is critical for optimal playback, ensuring that the stylus tip remains as tangent to the record groove as possible as it travels across the record.

* Typically, if your tonearm's effective length (the distance from the tonearm pivot to the stylus tip) falls between 222 mm (8.7") and 250 mm (9.8"), you can use the Baerwald method to align the cartridge.

Features

Protractor uses the common Baerwald alignment method to set a phono cartridge's offset angle and null points
Proper alignment is critical for peak cartridge performance, providing optimal tracking and minimizing distortion
Suitable for tonearms with an effective length between 222 mm (8.7") and 250 mm (9.8")

Specifications

Dimensions	156 mm (6.1") x 3 mm (0.12") x 35 mm (1.4") [W x D x H]
Spindle Hole Diameter	7.3 mm (0.29")
Weight	18 g (0.63 oz)

Click Here for the AT-CAP1 Cartridge Alignment Protractor User Manual!
