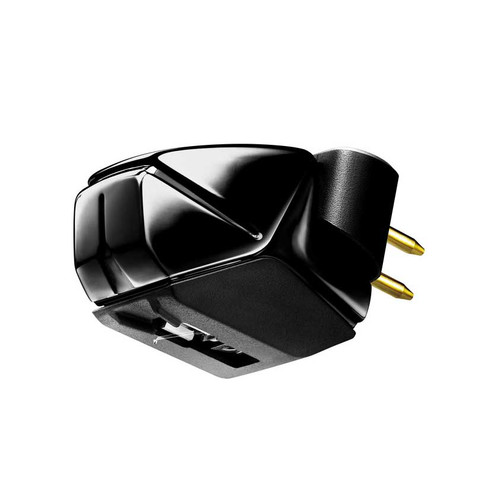

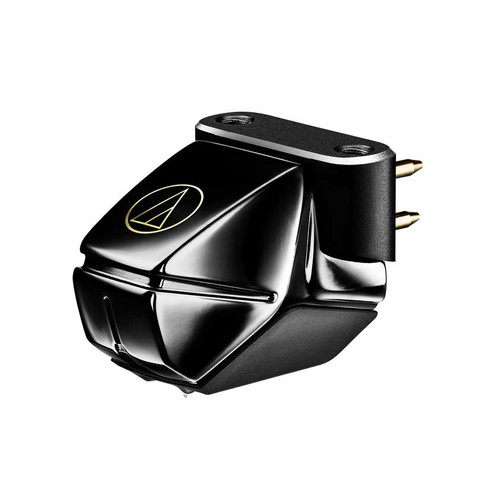

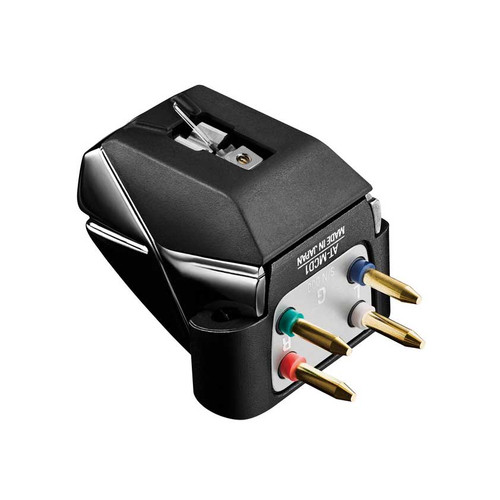

Audio-Technica AT-MCD1 Dual Moving Coil Cartridge (Shibata)

$11,000.00

Availability: Special Order
In Stock An In Stock item is available to ship normally within 24 business hours.
Preorder A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release 'TBA.' This means that release date is yet 'To Be Announced'. The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.

SKU:
AT-MCD1
UPC:
4961310166373
Adding to cart… The item has been added

The AT-MCD1, Audio-Technica's flagship iron-core moving coil cartridge, is one of the finest phono cartridges ever produced, designed to surpass even the outstanding expressiveness of their limited edition AT-MC2022 60th anniversary model.

With its unified stylus-cantilever, formed from a single lab-grown diamond, the AT-MC2022 offered exceptional responsiveness and transparency, establishing a new benchmark for analog playback. The AT-MCD1 inherits that one-piece diamond construction but further reduces the mass of the cantilever and adopts a newly developed Shibata stylus (R2.7 × r0.08 mil tip radius) that traces the record groove with extreme accuracy. This seamless, high-purity structure enhances the precision of converting mechanical vibrations into electrical signals, achieving a higher integration of detail, density, speed, and smoothness.

The cartridge's dual moving coils provide high separation and wide response for clear sound localization with minimal distortion. Its highly efficient magnetic circuit creates strong magnetic flux density and output voltage, further enriching the presence and realism of the sound image. A carefully crafted cartridge body, consisting of an aluminum base, titanium housing, and elastomer undercover, disperses unwanted resonance, while threaded mounting holes make the cartridge easy to install to a headshell or integrated tonearm.

Built around its diamond core structure, the AT-MCD1 naturally reproduces everything from the faintest nuance to powerful dynamic expression, presenting sound in which image contours and spatial depth emerge vividly. By retrieving even the most delicate signals without loss, sound rises smoothly from silence, and the texture of instruments and the lingering resonance of harmonics are conveyed with striking realism. The unbroken purity of the AT-MCD1's diamond construction delivers ultra-low noise and outstanding resolution while staying true to the anniversary model's philosophy, faithfully drawing out every detail in the original recording.

Please Note: AT-MCD1's stylus assembly is not field-replaceable, but Audio-Technica offers a fee-based Moving Coil Exchange Program to properly service your moving coil cartridge.

Cutting-Edge Technology
Unified Diamond Stylus-Cantilever

The AT-MCD1's unified Shibata stylus (R2.7 × r0.08 mil tip radius) and 0.22 mm square diamond cantilever is formed from a single, lab-grown diamond. This unique construction eliminates the distortion caused by conventional bonding of stylus to cantilever, allowing for a purer transmission of the vibration from the record groove to the coils.

Extreme Precision
New Shibata Stylus

The AT-MCD1 features a Shibata stylus tip that's been specially developed for this cartridge. With an R2.7 × r0.08 mil tip radius, the stylus can pick up the finest details from a record groove, resulting in stunningly lifelike audio reproduction.

Superior Sound Experience
Moving Coil Construction

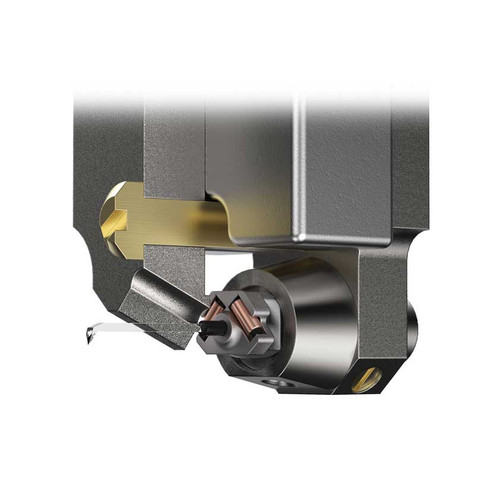

The AT-MCD1 adopts the highly efficient magnetic circuit originally developed for the AT-ART20, which generates strong magnetic flux density and output voltage for exquisite sonic realism. Two independent PCOCC moving coils, positioned at the cantilever's fulcrum, ensure pure signal transmission for each channel.

Accessories:

  • Non-magnetic screwdriver
  • Brush
  • Washer × 2
  • Cartridge installation screws (M2.6) (5.0 mm (0.20") × 2, 8.0 mm
  • (0.31") × 2, 10.0 mm (0.39") × 2, 12.0 mm (0.47") × 2)
  • Protector
  • Case (wooden box)

* Washers × 2 and screws (8.0 mm (0.31")) × 2 are used to secure the cartridge at the time of purchase. Be sure to keep and not lose these after removing the cartridge from the imitation headshell.

Features

  • Diamond-crafted audio: Audio-Technica's flagship AT-MCD1 is one of the finest phono cartridges ever produced
  • Integrated stylus and diamond cantilever, formed from a single lab-grown diamond, eliminates the distortion caused by conventional bonding for pure signal transmission, fast transient response, and enhanced high-frequency expression
  • Lightweight integrated 0.22 mm square diamond cantilever is crafted using the CVD (chemical vapor deposition) method, ensuring outstanding precision and consistency in acoustic performance
  • Newly developed Shibata stylus (R2.7 × r0.08 mil tip radius) traces the intricate modulations of the record groove with extreme accuracy for a precise and lifelike listening experience
  • Dual moving coils provide high separation and wide response for clear sound localization with minimal distortion
  • Dedicated magnetic circuit, developed specifically for Audio-Technica's high-class MC cartridges, achieves higher output voltage (without altering coil impedance) while further enriching the presence and realism of the sound image
  • PCOCC (Pure Copper by Ohno Continuous Casting) coils minimize signal disturbance, providing purer and smoother transmission
  • The precision-machined titanium housing is remarkably lightweight and rigid, and offers exceptional acoustic performance
  • Hybrid body construction - titanium housing, aluminum base, elastomer undercover - reduces undesirable resonance
  • Threaded cartridge mounting holes allow for easy installation to a headshell or integrated tonearm

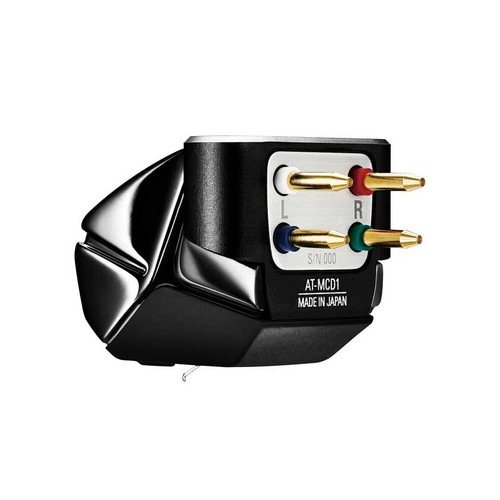

  • High-quality sound terminal pins have 3-micron gold-plating to reduce contact resistance and enhance sound quality

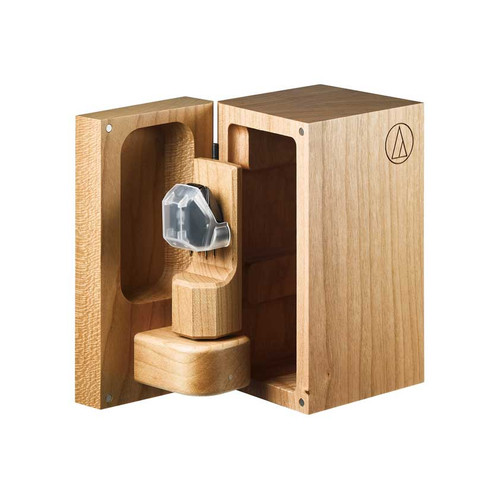

  • Each cartridge is engraved with a unique serial number and comes in a solid cherry wood storage case
  • Crafted and hand-finished by artisans in Japan
  • Environmentally conscious paper-based packaging

Technical Specifications

Type MC
Frequency response 20 to 50,000 Hz
Output voltage 0.55 mV (1 kHz, 5 cm/sec.)
Channel separation 28 dB (1 kHz)
Output balance 0.5 dB (1 kHz)
Tracking force 1.7 to 1.9 g (1.8 g standard)
Coil impedance 12 ohms (1 kHz)
DC resistance 12 ohms
Recommended load impedance = 100 ohms (when head amplifier connected)
Coil inductance 25 µH (1 kHz)
Static compliance 21 × 10-6 cm/dyne
Dynamic compliance 15 × 10-6 cm/dyne (100 Hz)
Stylus Shibata (integrated cantilever type)
Stylus curvature radius 2.7 × 0.08 mil
Cantilever 0.22 mm (0.0087") square diamond
Vertical tracking angle 20°
Dimensions 17.3 mm (0.68") × 17.7 mm (0.70") × 26.7 mm (1.1") (H × W × D)
Threaded hole M2.6 × 2
Weight 9.5 g (0.34 oz)
