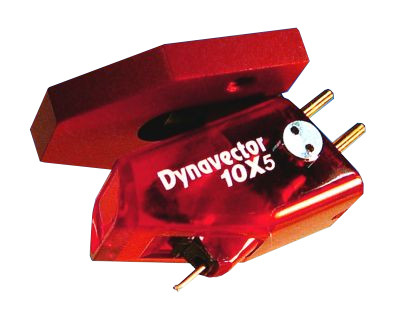

Certified Factory Rebuilt Dynavector 10 X 5 MC Cartridge 2.5mV
Certified Factory Rebuilt Dynavector 10 X 5 MC Cartridge 2.5mV

Share:

Certified Factory Rebuilt Dynavector 10 X 5 MC Cartridge 2.5mV

$499.99 $649.99
(You save $150.00)



Availability: Discontinued
In Stock An In Stock item is available to ship normally within 24 business hours.
Preorder A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release "TBA." This means that release date is yet "To Be Announced". The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.
SKU:
DYN10X5R
UPC:
DYN10X5R
Only $499.99! Regularly $649.99! You Save $150!
Certified Factory Rebuilt! Fully Tested & Inspected by Peter Ledermann, President/Chief Engineer at Soundsmith!
Hurry, Only 1 Available. Won't Last Long! 1 year warranty included! Satisfaction Guaranteed!


First released in 1978 and recipient of the prestigious (at the time) Design and Engineering Award at the Chicago CES in both 1978 and 1981. The Dynavector 10X5 MC cartridge presents a new benchmark in High Output MC cartridge performance not requiring a step-up device or MC phono preamplifier.

The legendary Dynavector coil winding technology using the finest of wire has enabled the Dynavector 10X5 to minutely increase the coil windings and achieve a reduction in impedance to 150 ohms whilst retaining a healthy 2.5mV output.

Specifications:
Type: High output moving coil cartridge with flux damper and softened magnetism
Output Voltage: 2.5mV (at 1KHz, 5cm/sec.)
Channel Separation: 25 dB (at 1KHz)
Channel balance: 1.0 dB (at 1KHz)
Frequency response: 20 - 20,000Hz (± 2dB)
Compliance: 12 mm/N
Tracking force: 1.8 - 2.2 grams
DC resistance: 150 ohms
Recommended load impedance: Greater than 1000 ohms
Cantilever: Sapphire
Stylus: CL
Weight: 7.5 grams

Description
Only $499.99! Regularly $649.99! You Save $150!
Certified Factory Rebuilt! Fully Tested & Inspected by Peter Ledermann, President/Chief Engineer at Soundsmith!
Hurry, Only 1 Available. Won't Last Long! 1 year warranty included! Satisfaction Guaranteed!


First released in 1978 and recipient of the prestigious (at the time) Design and Engineering Award at the Chicago CES in both 1978 and 1981. The Dynavector 10X5 MC cartridge presents a new benchmark in High Output MC cartridge performance not requiring a step-up device or MC phono preamplifier.

The legendary Dynavector coil winding technology using the finest of wire has enabled the Dynavector 10X5 to minutely increase the coil windings and achieve a reduction in impedance to 150 ohms whilst retaining a healthy 2.5mV output.

Specifications:
Type: High output moving coil cartridge with flux damper and softened magnetism
Output Voltage: 2.5mV (at 1KHz, 5cm/sec.)
Channel Separation: 25 dB (at 1KHz)
Channel balance: 1.0 dB (at 1KHz)
Frequency response: 20 - 20,000Hz (± 2dB)
Compliance: 12 mm/N
Tracking force: 1.8 - 2.2 grams
DC resistance: 150 ohms
Recommended load impedance: Greater than 1000 ohms
Cantilever: Sapphire
Stylus: CL
Weight: 7.5 grams
