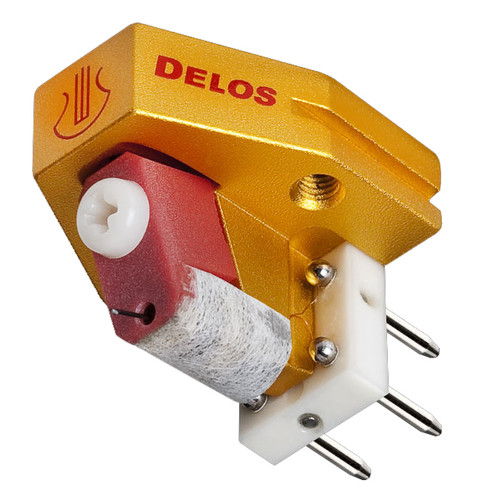

Certified Factory Rebuilt Lyra Delos MC Cartridge 0.5mV
Certified Factory Rebuilt Lyra Delos MC Cartridge 0.5mV
: Lyra

Share:

Certified Factory Rebuilt Lyra Delos MC Cartridge 0.5mV

$994.99 $1,994.99
(You save $1,000.00)



Availability: Discontinued
In Stock An In Stock item is available to ship normally within 24 business hours.
Preorder A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release "TBA." This means that release date is yet "To Be Announced". The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.
SKU:
LYRDELOSR
UPC:
LYRDELOSR



Only $994.99! Regularly $1994.99! You Save $1000!
Certified Rebuilt! Fully Tested & Inspected by Peter Ledermann, President/Chief Engineer at Soundsmith!
Hurry, Only 1 Available. Won't Last Long! 1 year warranty included! Satisfaction Guaranteed!


No Stylus Guard Included.

Trade In Pricing:
Only $1,595.00 with Any Lyra trade in!


An analog LP played back with an MC cartridge can sound exceptionally good. Yet, it is a surprising fact that the design of conventional Moving Coil Cartridges restrict the sound quality that can be achieved from LPs.

An essential factor for proper operation of an MC cartridge is the angle between the magnetic circuit, signal coils and core. Performance is optimal when the angles are all aligned, but any significant difference in the angles will cause the formation of a strong and directional flux that will flow constantly from the magnetic circuit into the signal core. This directional magnetic flux will orient the core toward a specific direction and make it impossible for the core to move with equal ease in all directions, which is necessary for proper cartridge performance.

Unfortunately, conventional MC cartridges have been designed so that the angles between magnetic circuit, signal coils and core become aligned only when tracking force is not applied. The result is that during playback, the required tracking force causes the angle between magnetic circuit, signal coils and core to become misaligned. This limits the cartridge's resolution, tracking ability and dynamic range.

The new Lyra Delos is designed to conquer this problem. Compared to conventional cartridges, the Delos has a new body structure with an unusually shallow angle, and this has been paired with a unique asymmetrical damping system. When no tracking force is applied, the shape of the asymmetrical dampers forces the signal coils and core into a more upright angle than the magnetic circuit . However, no tracking force applied means that the cartridge is not operating, and therefore any angular discrepancies between magnetic circuit, signal coils and core will have no effect on performance.

When tracking force is applied, however, the force of the stylus pushing on the LP causes the asymmetrical dampers to be deformed into a symmetrical shape, and when this happens the angular discrepancies between magnetic circuit, signal coils and core all disappear. Since tracking force applied means that the cartridge is now operating, it should be clear that the design of the Delos is able to keep the angles between the magnetic circuit, signal coils and core aligned during playback.

Keeping the proper angular alignment prevents the formation of any strong and directional flux that could otherwise flow constantly from the magnetic circuit into the signal core, and enables the Delos' core to move with equal ease in all directions, for optimal performance.

The result is clearly improved sound quality, particularly resolution, tracking ability, dynamic range, transient impact and immediacy. Hear how good a new angle can make your LPs sound!

"An exceptionally quiet background is indeed the most immediately striking aspect of this design. It is also very well balanced and notably coherent across the spectrum, tonally natural, texturally rich, and very quick of response... While I won't claim to have heard every contender in this price range, it seems to me that Lyra's design work with the Delos has yielded something quite special: a beautiful performer that sets a new standard in its class." - Wayne Garcia, The Absolute Sound, October 2010, Issue 206

Specifications:
Type : Medium weight, medium compliance, low-impedance moving coil cartridge
Stylus: CL Stylus
Coils: 3-layer deep, 6N high-purity copper, square-shaped high-purity iron former, 6.3ohm self-impedance, 9.5uH inductance
Output voltage: 0.6mV@5cm/sec., zero to peak, 45 degrees (CBS test record, other test records may alter results)
Frequency range: 10Hz ~ 50kHz
Channel separation: 30dB or better at 1kHz
Compliance: Approx. 12 x 10-6cm/dyne at 100Hz
Vertical tracking angle: 20 degrees
Cartridge body: One-piece machining from solid 6063 aluminum billet, partially non-parallel shaping, body threaded directly for mounting screws
Cartridge mounting screws: 2.6mm 0.45 pitch JIS standard Distance from mounting holes to stylus tip: 9.5mm
Cartridge weight (without stylus cover): 7.3g
Recommended tracking force: 1.7g ~ 1.8g (1.75g preferred)
Recommended load directly into MC phono input: 97.6ohm ~ 806ohm (determine by listening, or follow detailed guidelines in user manual)
Recommended load via step-up transformer: 5 ~15ohm (step-up transformer's output must be connected to 10kohm ~ 47kohm MM-level RIAA input, preferably via short, low-capacitance cable)
Recommended tonearms: High-quality pivoted or linear (tangential) tonearms with rigid bearing(s), adjustable anti-skating force, preferably VTA adjustment
Description



Only $994.99! Regularly $1994.99! You Save $1000!
Certified Rebuilt! Fully Tested & Inspected by Peter Ledermann, President/Chief Engineer at Soundsmith!
Hurry, Only 1 Available. Won't Last Long! 1 year warranty included! Satisfaction Guaranteed!


No Stylus Guard Included.

Trade In Pricing:
Only $1,595.00 with Any Lyra trade in!


An analog LP played back with an MC cartridge can sound exceptionally good. Yet, it is a surprising fact that the design of conventional Moving Coil Cartridges restrict the sound quality that can be achieved from LPs.

An essential factor for proper operation of an MC cartridge is the angle between the magnetic circuit, signal coils and core. Performance is optimal when the angles are all aligned, but any significant difference in the angles will cause the formation of a strong and directional flux that will flow constantly from the magnetic circuit into the signal core. This directional magnetic flux will orient the core toward a specific direction and make it impossible for the core to move with equal ease in all directions, which is necessary for proper cartridge performance.

Unfortunately, conventional MC cartridges have been designed so that the angles between magnetic circuit, signal coils and core become aligned only when tracking force is not applied. The result is that during playback, the required tracking force causes the angle between magnetic circuit, signal coils and core to become misaligned. This limits the cartridge's resolution, tracking ability and dynamic range.

The new Lyra Delos is designed to conquer this problem. Compared to conventional cartridges, the Delos has a new body structure with an unusually shallow angle, and this has been paired with a unique asymmetrical damping system. When no tracking force is applied, the shape of the asymmetrical dampers forces the signal coils and core into a more upright angle than the magnetic circuit . However, no tracking force applied means that the cartridge is not operating, and therefore any angular discrepancies between magnetic circuit, signal coils and core will have no effect on performance.

When tracking force is applied, however, the force of the stylus pushing on the LP causes the asymmetrical dampers to be deformed into a symmetrical shape, and when this happens the angular discrepancies between magnetic circuit, signal coils and core all disappear. Since tracking force applied means that the cartridge is now operating, it should be clear that the design of the Delos is able to keep the angles between the magnetic circuit, signal coils and core aligned during playback.

Keeping the proper angular alignment prevents the formation of any strong and directional flux that could otherwise flow constantly from the magnetic circuit into the signal core, and enables the Delos' core to move with equal ease in all directions, for optimal performance.

The result is clearly improved sound quality, particularly resolution, tracking ability, dynamic range, transient impact and immediacy. Hear how good a new angle can make your LPs sound!

"An exceptionally quiet background is indeed the most immediately striking aspect of this design. It is also very well balanced and notably coherent across the spectrum, tonally natural, texturally rich, and very quick of response... While I won't claim to have heard every contender in this price range, it seems to me that Lyra's design work with the Delos has yielded something quite special: a beautiful performer that sets a new standard in its class." - Wayne Garcia, The Absolute Sound, October 2010, Issue 206

Specifications:
Type : Medium weight, medium compliance, low-impedance moving coil cartridge
Stylus: CL Stylus
Coils: 3-layer deep, 6N high-purity copper, square-shaped high-purity iron former, 6.3ohm self-impedance, 9.5uH inductance
Output voltage: 0.6mV@5cm/sec., zero to peak, 45 degrees (CBS test record, other test records may alter results)
Frequency range: 10Hz ~ 50kHz
Channel separation: 30dB or better at 1kHz
Compliance: Approx. 12 x 10-6cm/dyne at 100Hz
Vertical tracking angle: 20 degrees
Cartridge body: One-piece machining from solid 6063 aluminum billet, partially non-parallel shaping, body threaded directly for mounting screws
Cartridge mounting screws: 2.6mm 0.45 pitch JIS standard Distance from mounting holes to stylus tip: 9.5mm
Cartridge weight (without stylus cover): 7.3g
Recommended tracking force: 1.7g ~ 1.8g (1.75g preferred)
Recommended load directly into MC phono input: 97.6ohm ~ 806ohm (determine by listening, or follow detailed guidelines in user manual)
Recommended load via step-up transformer: 5 ~15ohm (step-up transformer's output must be connected to 10kohm ~ 47kohm MM-level RIAA input, preferably via short, low-capacitance cable)
Recommended tonearms: High-quality pivoted or linear (tangential) tonearms with rigid bearing(s), adjustable anti-skating force, preferably VTA adjustment
