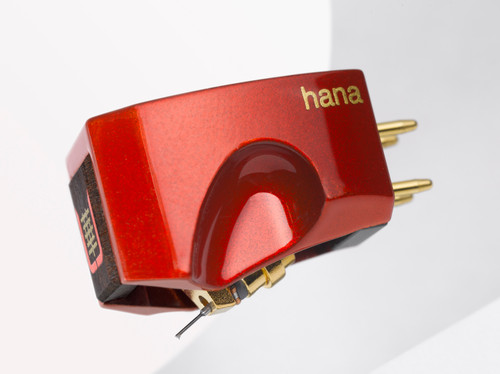

Certified Pre-Owned Hana Umami Red MC Cartridge 0.4mV

$1,600.00 $3,949.99
(You save $2,349.99 )

Availability: Discontinued
In Stock An In Stock item is available to ship normally within 24 business hours.
Preorder A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release 'TBA.' This means that release date is yet 'To Be Announced'. The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.

SKU:
HANAUMRP
UPC:
HANAUMRP

Certified Pre-Owned! Only 1 Available!

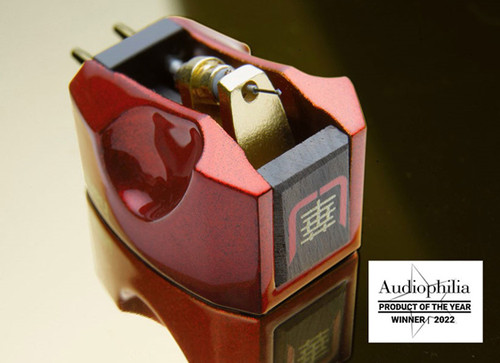

Audiophilia Product of the Year Winner 2022!

When you experience a special sense of taste in food, it's Umami*. The specific ingredients meld together synergistically and harmoniously to become more than the sum of their parts. Many of the world's most delicious and memorable food experiences possess the Umami quality.

Hana's cartridge designer Maseo Okada-san produces this quality for vinyl listening as he combines materials and techniques to create the musical richness and intensity you experience from his HANA-Umami Red hand-built MC cartridge.

The HANA-Umami Red cartridge follows in the Hana "Brilliant and Gorgeous" tradition of providing the listener with sublime enjoyment. The Hana E, S, and M Series moving coil cartridges have won accolades and critical acclaim from reviewers and customers worldwide for the highest achievement of sound quality in their respective price ranges. The HANA-Umami Red follows that tradition with a more enticing level of audio enjoyment and satisfaction.

*Umami /o?o'mämē/ noun. The fifth taste category after salty, sweet, sour, and bitter. Officially coined Umami in 1908 by Japanese chemist Kikune Ikeda-san, it is that very pleasing or delicious flavor on the palette, a synergistic effect resulting in higher taste intensity.

The HANA-Umami Way

The HANA-Umami Red high-end moving coil cartridge combines brilliant materials and classic Japanese techniques with modern audio engineering. Ebony wood, rare-earth magnets, precision-cut diamond, high-purity copper wires, Urushi lacquering, and CNC machined Duralumin synergize under the vision of Hana designer Okada-san.

The synergistic relationship in MC generators between magnet, armature, and coil windings is a critical aspect of outstanding cartridge design; and like a signature dish at a Michelin 3-star restaurant, every element and detail working in concert results in a memorable and emotional experience.

All the major parts in a HANA-Umami Red are manufactured in house by Excel Sound with its rich history spanning over 50 years. Excel's highly trained craftsmen skillfully hand assemble the HANA-Umami Red ensuring an intensely musical experience furthering the HANA "Brilliant and Gorgeous" sound quality.

Auricle™ Cartridge body

The HANA-Umami Red exclusive Auricle™ body design, mimics the shape of the human outer ear to rigidly support the "Open Air" Moving Coil generator. The unique body shape is machined from A7075 aluminum, one of the strongest and lightest alloys used in aerospace engineering. The Duralumin body features an Ebony Wood inlay on its front facia to provide specific damping properties and tapped mounting holes assure secure attachment to the tonearm.

Urushi Lacquer

The HANA-Umami Red body's multi-layered Urushi lacquer finish originates from the famous Japanese Makie-artistic tradition, adding to the rich sound and optics. This classic and complex procedure consists of a black Urushi painted undercoat, elaborate red-coloration process incorporating fine silver powder, "hana" name printing with pure gold powder, and final lacquer coating with multiple polishing steps.

Microline stylus

The HANA-Umami Red 'nude' natural diamond stylus is cut and polished to mimic the cutting head stylus used to Master or "cut" all vinyl records. This design offers the most precise fit into the vinyl groove, tracing the most delicate musical nuances.

Boron cantilever

Boron, with a hardness comparable to diamond, was selected for the HANA-Umami Red to rigidly hold the Microline stylus. This solid Boron cantilever allows the smallest audible details and micro-dynamics to be transmitted without loss to the moving coil generator, capturing the artists' intent.

Moving coil generator

The rare earth samarium/cobalt magnet material selected for the HANA-Umami Red generator offers the best electro-magnetic energy, a requirement for this very musical design. Pure copper wires are expertly hand-wound onto the classic square plate Permalloy armature.

Cryogenic processing

This 'cold annealing' process at near absolute zero temperature is used to treat many of the components in the HANA-Umami Red generator as well as the gold-plated signal output pins. The cryogenic process alters the molecular structure of the materials, producing a transformative quality similar to molecular gastronomy.

Wonderfully Musical

The Hana team is proud of their seamless integration of brilliant materials, modern audio engineering, and traditional techniques. Master designer Okada-san brings decades of experience to this design, applying the Umami concept of synergy with the HANA-Umami Red to indulge your senses in the music.

The Umami Red is not just the most engaging cartridge I've had in my system, but it's one of the most engaging cartridges I've ever heard, and that includes time spent with very high-end systems and cartridges double its price. For listeners like me who have hung out in the 1-2k range of moving coil carts for many years, the Umami Red represents one of the smartest 'steps up' to the high end you can make in my opinion. The sky is the limit when it comes to high-end moving coil cartridges, but I think Hana has presented a very good case here that this could be your 'end game'. I decided it very well might be mine, as I arranged to purchase my demo unit and keep it permanently in my system as a long-term analog reference. That's the best endorsement I know how to make.

Technical Specifications

Body

Material Duralumin (A7075), Ebony Wood
Finish Gloss Urushi Lacquer / Red

Cantilever Assembly

Cantilever Boron
Stylus Microline Nude Diamond
Armature Material Permalloy
Armature Shape Square

Magnetic Circuit

Parts Material Pure Iron
Magnet Samarium Cobalt
Terminal Plate PEEK (Polyether Ether Ketone)
Terminal Pin 24K Gold Plated

Coil

Coil Impedance 6Ω/1KHz
Output 0.4mv/1KHz
Coil Wire Material High Purity Copper
Terminating Impedance > 60Ω

Treatment

Cryogenic Yes

Specification

Frequency Response 10-50,000Hz
Output Balance 0.5dB/1KHz
Channel Separation >30dB/1KHz
Tracking Force Weight 2g
Trackability 70μm/2g
Dynamic Compliance 10 x 10(-6) cm/dyne (100Hz)
Estimated at 16 x 10(-6) cm/dyne (10Hz)
Cartridge Weight 10.5g
