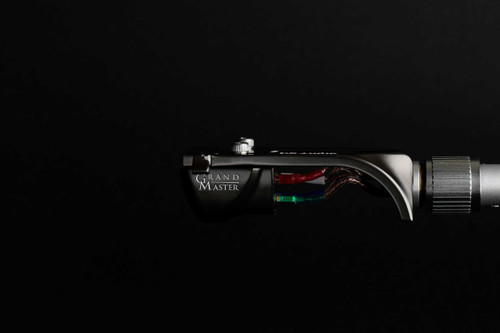

DS Audio HS-001 Solid Headshell (Fixed Leads) 3

DS Audio HS-001 Solid Headshell (Fixed Leads) 4

Brand: DS Audio

DS Audio HS-001 Solid Headshell (Fixed Leads)

$500.00

Availability: In Stock

In Stock	An In Stock item is available to ship normally within 24 business hours.
Preorder	A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release 'TBA.' This means that release date is yet 'To Be Announced'. The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered	An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress	Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On	When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order	A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.

SKU:

DSAHS001

Current Stock:

QTY:

Adding to cart… The item has been added

Description

Redefining What a Head Shell Can Sound Like

By minimizing contacts, increasing rigidity, and stabilizing the tonearm interface, the HS-001 achieves unprecedented sonic purity.

A vertical pin structure achieves uniform pressure on electrical contacts

Contact surface stabilized by spherical washer. Conventional headshells have a connecting pin attached only to the upper side, causing uneven contact pressure between the tonearm and the headshell. However, the HS-001 Solid Headshell adopts an upper and lower pin structure, equalizing the pressure on the contacts and applying force evenly across the connection to the tonearm. Additionally, DS Audio uses a special spherical headshell washer (developed by DS Audio) independently at the tonearm's contact point. This enables superior stability over the entire circumference of the contact point, providing improved resonance control.

Machined Ultra Duraluminum

DS Audio precision machines each HS-001 out of a solid billet of duralumin for the ultimate rigidity and resonance control.

Hand-soldered Litz signal leads

After extensive listening tests within the company, DS Audio selected a Japanese-made Litz wire. Further advances were realized by hand soldering this delicate lead wire to preserve signal integrity for optimal sound performance. (Lead wires and connector parts are also available unsoldered by dealer request.)

Technical Specifications

Material	Ultra duralumin
Connector	Aluminum
Connector terminal	Gold plated
Lead terminal	Gold plated
External dimensions	H21mm × W40mm × D55 mm (without connector)
Weight	Approximately 10.5 grams (without leads)
Lead wire	Litz wire 4Nf 0.08 × 10 × 3 yore rings
Hardware	Stainless steel M2.6 L8×2, M2.6 L12×2
