Can only ship to USA address!
| Save 10% when purchased with turntable or ANY other brand cartridge trade | $1,080.00 |
|---|---|
| Save $200 Trading up from Hana E to M Series | $1,000.00 |
| Save $250 Trading up from Hana S to M Series | $950.00 |
| Save 30% re-tip exchange | $840.00 |
Save on Hana Cartridges from October 1 - January 31, 2023!
| Save $375 Trading up from Hana S Series | $825.00 |
|---|---|
| Save $325 Trading up from Hana E Series | $875.00 |
| 30% re-tip exchange | $840.00 |
Trade instructions: If you purchase this cartridge with a trade-in, please note when you check out your total will show the normal sale price of this item and NOT the trade in price. However, when we process your order, you will be charged ONLY the trade in price. When you have received your new Hana cartridge, please carefully pack and ship your trade-in cartridge to us (see our website for address)

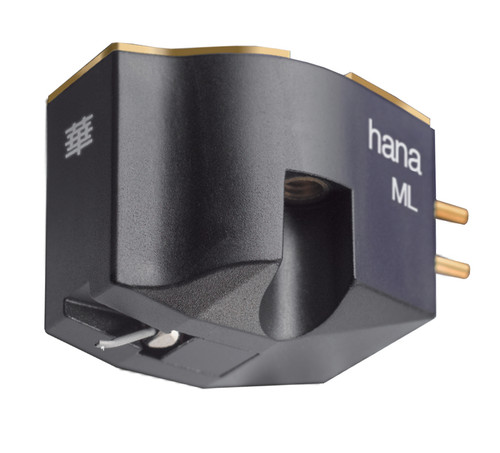

Building upon the foundation of the critically acclaimed HANA sound, the ML aspires toward affordable perfection and represent the further evolution of the "Brilliant and Gorgeous" quality that has earned HANA its worldwide reputation.
M Series Nude Microline stylus
Befitting its name, the M Series uses a Nude Microline stylus, mimicking the cutting stylus and fitting more precisely into the vinyl groove. This enhances tracking to capture the most delicate musical details with better frequency reproduction, stereo imaging, and resolution.
High Purity Copper Wire
Very high-purity copper wire is used for winding the ML coil with a new low impedance generator for optimized performance with a broader range of phono preamps.
Delrin© Cartridge Body
The M Series cartridge body is injection molded from Delrin©, a high-tech polymer with improved mechanical characteristics for better resonance damping, to reveal more low level information and enhance dynamic range.
Cryogenic Processing
Cryogenic processing is Cold Annealing at near absolute zero temperature that restructures metals at the molecular level, especially important in the Alnico based magnetic electro-motive circuit (cartridge signal generator). The M Series parts treated include the front yoke as well as center and rear components. The result is a more precise and controlled magnetic flux field for greater linearity and musical sound quality.
Brass Cap with Threaded Fittings
The Delrin© cartridge body features an integral machined brass cap providing constrained mode layer damping and its heavier 9.5 gram weight provides expanded compatibility with a wider range of tonearms and turntables.
Built into the M Series Delrin© cartridge body are metal threaded fittings for headshell mounting hardware, offering easier attachment and a superior mechanical interface for better bass and dynamics.
Technical Specifications
Body
| Material | Delrin (Polyoxymethylene) |
|---|---|
| Finish | Satin Finish |
Cantilever Assembly
| Cantilever | Aluminum |
|---|---|
| Stylus | Microline Nude Diamond |
| Armature Material | Permalloy |
| Armature Shape | Cross |
Magnetic Circuit
| Parts Material | Pure Iron |
|---|---|
| Magnet | Alnico |
| Terminal Plate | ABS |
| Terminal Pin | Gold Plated |
Coil
| Coil Impedance | 8Ω/1KHz |
|---|---|
| Output | 0.4mV/1KHz |
| Coil Wire Material | High Purity Copper |
| Terminating Impedance | > 100Ω |
Treatment
| Cryogenic | Yes |
|---|
Specification
| Frequency Response | 12-45,000Hz |
|---|---|
| Output Balance | <1dB/1KHz |
| Channel Separation | 30dB/1KHz |
| Tracking Force Weight | 2g |
| Trackability | 70μm/2g |
| Dynamic Compliance | 10 x 10(-6) cm/dyne (100Hz)
estimated 16 x 10(-6) cm/dyne (10Hz) |
| Cartridge Weight | 9.5g |
