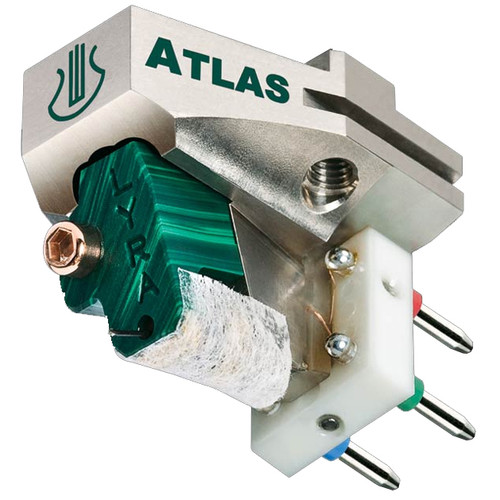

Lyra Atlas MC Cartridge 0.56mV

$11,995.00



Availability: Discontinued
In Stock An In Stock item is available to ship normally within 24 business hours.
Preorder A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release "TBA." This means that release date is yet "To Be Announced". The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.
SKU:
LYRATLAS
UPC:
LYRATLAS



This product can only be shipped to U.S. addresses.

Introducing the Lyra Atlas, the world's first asymmetric MC phono cartridge!

Trade In Pricing:
Only $9,595.00 with Top Tier* trade in!
*Top Tier = Lyra Atlas, Titan, Olympos & Parnassus
Only $9,740.00 with 2nd Tier** trade in!
**2nd Tier = All Other Lyra Models

Rebuild (ETA is 2-3 months but can take longer based on demand)
Only $8,995.00!


Trade instructions: If you purchase this cartridge with a trade-in, please note when you check out your total will show the normal sale price of this item and NOT the trade in price. However, when we process your order, you will be charged ONLY the trade in price. When you have received your new Lyra cartridge, please carefully pack and ship your trade-in cartridge to us (see our website for address).

The Atlas is Lyra's new flagship. The Lyra Atlas marks the first time that anyone has made an asymmetrically structured phono cartridge. Why asymmetric? Because, by literally misplacing the barriers to great sound that are present in every other cartridge today, it confers a number of important performance benefits.

First, having differently-shaped structures on the left and right sides suppresses the formation of standing waves inside the cartridge body, thereby creating a less resonant, more neutral cartridge body. Second, the asymmetric construction offsets the front magnet carrier and its associated mounting system so that it is no longer in line with the cantilever assembly. Doing so opens up a direct, solid path between the cantilever assembly and tonearm headshell so that vibrations from the cantilever can be quickly drained away once they have been converted into electrical signals, again suppressing resonances.

"Billed as Lyra's "new flagship phono cartridge," the Atlas ($9500) has high-tech features from end to end. It actually has slightly higher output than other higher-end Lyras -- 0.56mV @ 5cm/second. This is 12% greater than the Titan, for instance, yet the Atlas uses 22% less wire in its coils, which results in a reduction of mass and an improvement in tracking. As with the Lyra Titan and Olympos, the Atlas's body is carved from billet titanium and most of its surfaces are nonparallel to reduce internal standing waves and thus minimize resonance-induced coloration. It retain the Titan's double-knife-edge, diamond-coated boron cantilever and variable-radius line-contact stylus." - www.theaudiobeat.com

Lyra remains the only cartridge manufacturer to mount the cantilever assembly directly into the cartridge body and thereby achieve a seamless, totally rigid connection between cantilever assembly and headshell. The effectiveness of this system has been increased with the asymmetrical structure of the Atlas. Control over spurious resonances is further assisted by the use of a narrowed mounting area, which couples the Atlas more tightly to the headshell and facilitates the transfer of vibrational energy into the tonearm.

While the Lyra Atlas retains the yokeless dual magnet system, diamond-coated boron rod cantilever and variable-radius line-contact stylus of the Titan, the double knife-edge cantilever assembly mounting structure has been revised for greater rigidity, and the signal coil system is completely new. Rather than a square, the coil former is in the shape of an X, which allows each channel to operate with greater independence from the other. This gives better tracking, tighter channel matching, improved separation, and lower distortion due to crosstalk.

At the same time we were able to increase both the performance and efficiency of the generator coils. The Atlas has 12% higher output voltage than the Titan, but accomplishes this while reducing the amount of wire in the coils by 22%. The mass reduction further improves tracking performance, while the enhanced output and electrical characteristics allow phono stages to perform better.

The Atlas uses Lyra's "New Angle" technology, which mechanically pre-biases the signal coils so that they are perfectly aligned to the front and rear magnets when LP playback takes place. This equalizes out discrepancies in vertical and horizontal compliances, and enables the Atlas' coils to move with equal ease in all directions for optimal performance.

As with the Titan and Olympos, the Atlas uses a body that is meticulously carved from a solid billet of titanium, through a process that involves both contact (for the exterior) and non-contact machining (for the interior body structures). But by making most of the Atlas' body surfaces non-parallel, avoiding dimensions that are multiples of other dimensions, and adding a pre-stressed phase-interference resonance-controlling system, resonances have been inhibited further.

"Through it all, the Titan-i has remained the benchmark that seemed to stay closer to the ideal dynamic, production of music." - Jacob Heilbrunn, The Absolute Sound, October 2012

The Lyra Atlas represents an important step forward in LP playback.

Features:
• Designer: Jonathan Carr
• Builder: Yoshinori Mishima

Specifications:
Type: Medium weight, medium compliance, low-impedance moving coil cartridge
Stylus: Lyra-designed long-footprint variable-radius line-contact nude diamond (3um x 70um), slot-mounted
Cantilever system: Diamond-coated solid boron rod with short one-point wire suspension, directly mounted into cartridge body via high-pressure knife-edge system
Coils: 2-layer deep, 6N high-purity copper, cross-shaped chemically-purified high-purity iron former, 4.2ohm self-impedance, 11uH inductance
Output voltage: 0.56mV@5cm/sec., zero to peak, 45 degrees (CBS test record, other test records may alter results)
Frequency range: 10Hz ~ 50kHz
Channel separation: 35dB or better at 1kHz
Compliance: Approx. 12 x 10-6cm/dyne at 100Hz
Vertical tracking angle: 20 degrees
Cartridge body: One-piece machining from solid titanium billet, with reduced-surface higher-pressure headshell contact area, predominately non-parallel and asymmetrical shaping, phase-interference resonance-controlling mechanism, and body threaded directly for mounting screws
Cartridge mounting screws: 2.6mm 0.45 pitch JIS standard Distance from mounting holes to stylus tip: 9.5mm
Cartridge weight (without stylus cover): 11.6g
Recommended tracking force: 1.65 ~ 1.75g (1.72g recommended)
Recommended load directly into MC phono input: 104ohm ~ 887ohm (determine by listening, or follow detailed guidelines in user manual)
Recommended load via step-up transformer: 5 ~ 15ohm (step-up transformer's output must be connected to 10kohm ~ 47kohm MM-level RIAA input, preferably via short, low-capacitance cable)
Recommended tonearms: High-quality pivoted or linear (tangential) tonearms with rigid bearing(s), adjustable anti-skating force, preferably VTA adjustment
