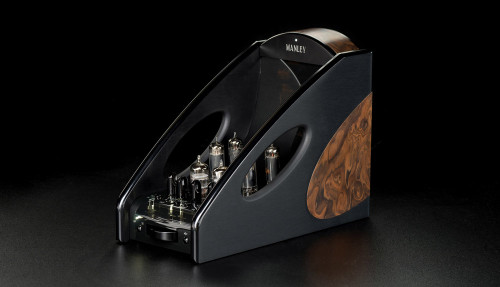

Manley Absolute Headphone Amplifier (Black)

In Stock	An In Stock item is available to ship normally within 24 business hours.
Preorder	A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release 'TBA.' This means that release date is yet 'To Be Announced'. The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered	An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress	Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On	When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order	A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.

Description

In stock at Manley. Ship within 1-2 weeks

Brimming with functionality, this new art piece from Manley Labs is as enthralling musically as it is handsome visually.

With over three years of development in its creation, Manley has drawn from its 30 years of experience in conceptualizing and developing each precise element of this multi-talented unit. This masterpiece embodies high-performance flexibility for every person to be able to custom compose sonic performance reliably, repeatedly, or even spontaneously. Artistic expression with sound!

Oh, and by the way, it is also a Line-Level Preamplifier!

Details

There are fifteen independent controls available, each of which was exhaustively developed for convenient adjustability and aural variety. Two selectable stereo RCA jack pairs receive the input signals. Even these RCA jacks are of Manley's own design. Teflon® insulated and gold plated, Manley has produced these excellent RCA jacks since the mid-1990s. The volume is controlled on the facia by the sexy front thumb wheel and also by the included Radio Frequency remote control, both of which operate a precision stepped relay ladder matrix attenuator in half dB steps. The RF remote can be operated anywhere in the home, even through walls or cabinetry, especially useful when using the unit as a stand-alone preamplifier. Next to the front volume control wheel youll find the Mute switch to instantly kill the signal. Spinning the volume wheel all the way to minimum also mutes the signal. There is also a user adjustable Headphone Overload Protection System which declares maximum output level to protect precious headphones and your ears!

And you know how maddening it is to try to listen to a mono LP record on headphones - which is why Manley provides a MONO switch!

In case your source needs some correction or if your own ears do not hear equally, Manley included a Balance Control which can swing the signal up to 72dB either way. In its center detent position, this special balance control is completely out of the circuit. Also to be able to execute some sonic authority over what is handed to you in a given recording or to just make your headphones sound nicer (to you!) they have provided historically proven pleasing and gentle Tone Controls - and these Baxandall Bass and Treble equalizers can be completely bypassed at the push of a button. Try them! Manley thinks you really will enjoy having the choice to enliven and enrich your sonic experience.

Along those lines, the Variable Feedback control allows you to control the amount of overall negative feedback applied to the amplifier from 0dB, or no Global Negative Feedback, to 10dB of NFB. Negative Feedback in electronics is when a small portion of the output signal is re-introduced back to the input signal to provide a more stable and beneficial corrective result. This control is very useful when determining how tight you want your amplifier to sound. For example, a simple female vocal with minimal percussion can sound more intimate with very little feedback, but a complicated symphony orchestra passage may sound better positioned with more feedback. Applying different amounts of negative feedback can also affect the slew rate and apparent speed of the sonic character. Other aspects for which to listen include placement, forward or relaxed, darker vs shimmering, or punchy vs mellow. Feel free to play with this knob and listen for the not-so-subtle diversity that altering the amount of feedback provides. Its one of Manley's favorite circuit tricks and theyve been pulling this one for decades!

Ah! And the other coolest tonal trick: Switching Topology!

Manley's pretty sure they've originated this concept in the audiophile world back with the Manley SE/PP 300B power amplifiers and its only because they have their own in-house magnetics department that Manley is able to devise such complaisant output transformers that can accommodate such radical demands. The Absolute Headphone amplifier features custom hand-wound air-gapped dual-mode MANLEY IRON® output transformers, designed and manufactured at the Manley Labs factory in California. Interestingly, the output tube stage can be switched on-the-fly between all-triode Push-Pull to Single-Ended topology. This completely alters the harmonic structure from odd-order to even-order and basically halves the output power again providing yet another spicy ingredient to flavor the sound.

Additionally, with a push of a button, these transformers cycle through three ranges of output loads accommodating headphones from 12 to 600 Ohms or greater. Choose between three sets of outputs: the expected ¼ TRS Headphone Jack, a 4-pin XLR Balanced Stereo Output for your high-end balanced headphones, and a set of stereo RCA outputs to use this component as your line-level preamplifier in your existing hifi system. The Bypass Thru Mode sends RCA Input 1 directly to the RCA Outputs, when in STANDBY mode. Useful, as your main audio system sources can drive either playback system without having to change upstream cabling.

The Absolute Headphone amplifier incorporates Manley's own innovative purpose-designed-for-audio High Voltage switched-mode power supply. All super-low impedance DC rails are fully regulated and worlds quieter than any linear supply they have ever encountered. The resulting sound is fast and dynamic with a deep punchy bass, deadly-quiet inky blacks, and superior headroom.

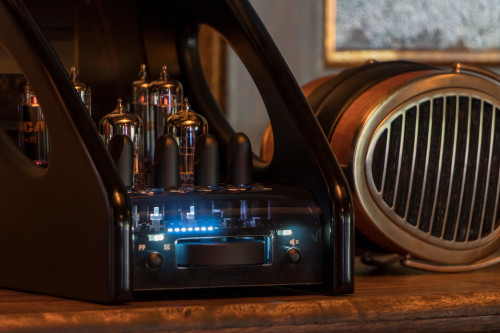

The 6AQ5 or EL90 is the vacuum tube used in the output stage of the Absolute Headphone amplifier. It is well suited for Manley's purposes in a headphone amplifier. The tube is configured as a triode due to the low power requirements needed for headphone use. This tube is widely available from well-known manufacturers such as RCA and GE. The tubes can be ordered as a matched quad and for ease of use the tubes do not require biasing. Simply plug them in and forget em!

Features

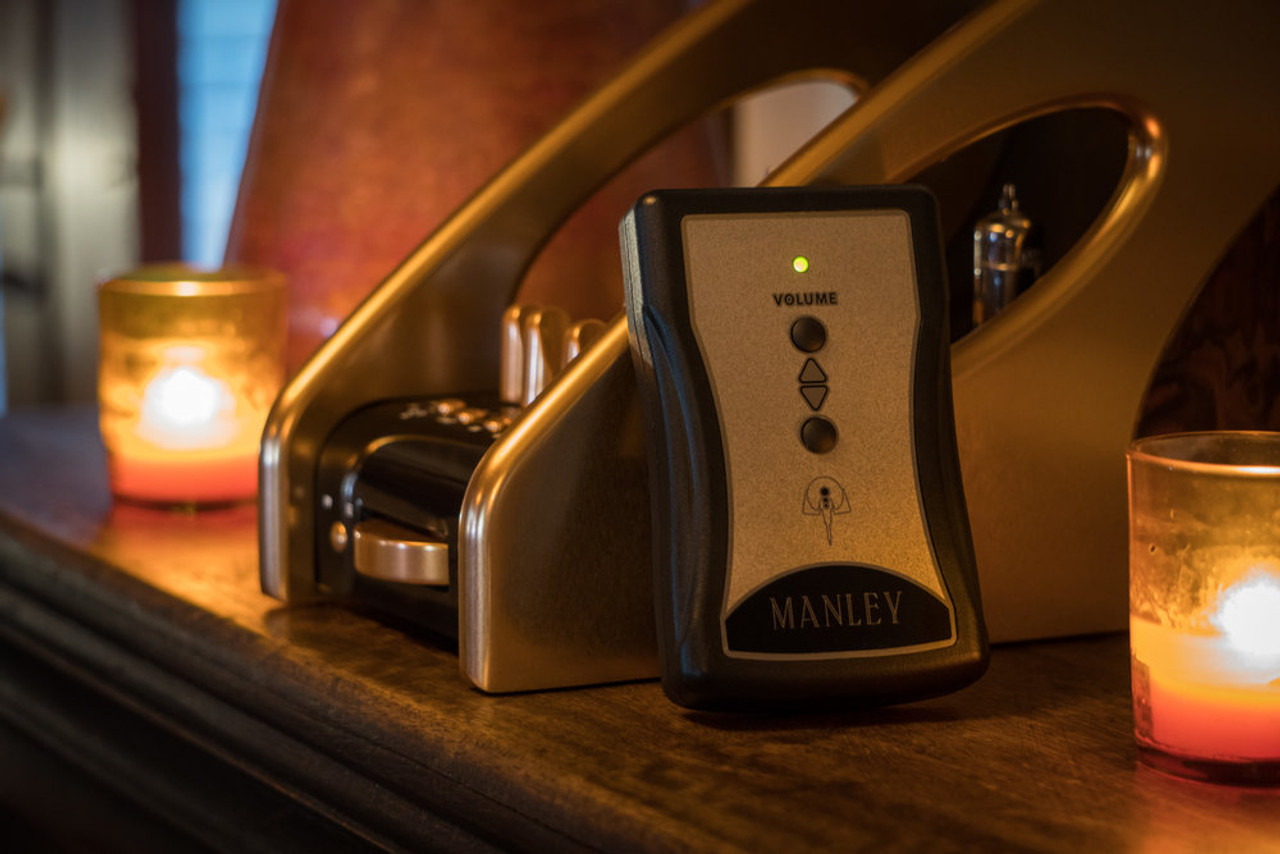

Supplied with Remora RF remote control
Soft Start, 30 second mute-controlled power-up sequence
Operating Mains Voltage: 90-250 VAC, 50-60Hz, universal works worldwide
Unit Dimensions: 11.5 x 5.5 x 8.2 (LxWxH)
Unit Weight: 12 lbs
Shipping Weight = 13.5 lbs
Packing Carton Dimensions: 17 x 11 x 15
Power consumption STANDBY mode = 0.5W, Max Power = 80W
Heat Rise above ambient temperature at rear panel: 25ºC or 44ºF
Heat Rise above ambient temperature at side panels: 15ºC or 26ºF

Technical Specifications

Amplifier TopologyTriode Vacuum Tube Output Stage, Switchable Topology Single-Ended or Push-Pull
Vacuum Tubes2 x 12AX7 (ECC83), 4 x 6AQ5A (EL90)
Inputs2 x RCA (Input 1 & Preamp Output = Pass-Thru when amplifier is in Standby or Off)
Input Impedance50 kOhms (Pass-Thru= 300 kOhms)
Maximum Input Level7.7 VAC RMS (+20 dBu), (Conditions: XLR output, PP mode, 16 ohm load, VOLUME max, EQ out, 1kHz sine wave)
GainLoad 16 ohm: 12 dB (Min FB), 3 dB (Max FB), Load 62 ohm: 17 dB (Min FB), 8 dB (Max FB), Load 200 ohm: 22 dB (Min FB), 13 dB (Max FB), (Conditions: XLR output, PP mode, VOLUME Max, EQ out, 1kHz sine wave)
Input Sensitivity600 mV AC RMS for an output of 100 mW, 1.9 VAC RMS for an output of 1W, (Conditions: XLR output, PP mode, FB 12:00 oclock, 16 ohm load, 1kHz sine wave, VOLUME max, EQ out)
Volume Control- Precision Stepped Relay Attenuator 0.5dB per step, - 63dB total attenuation Volume setting to minimum = MUTE

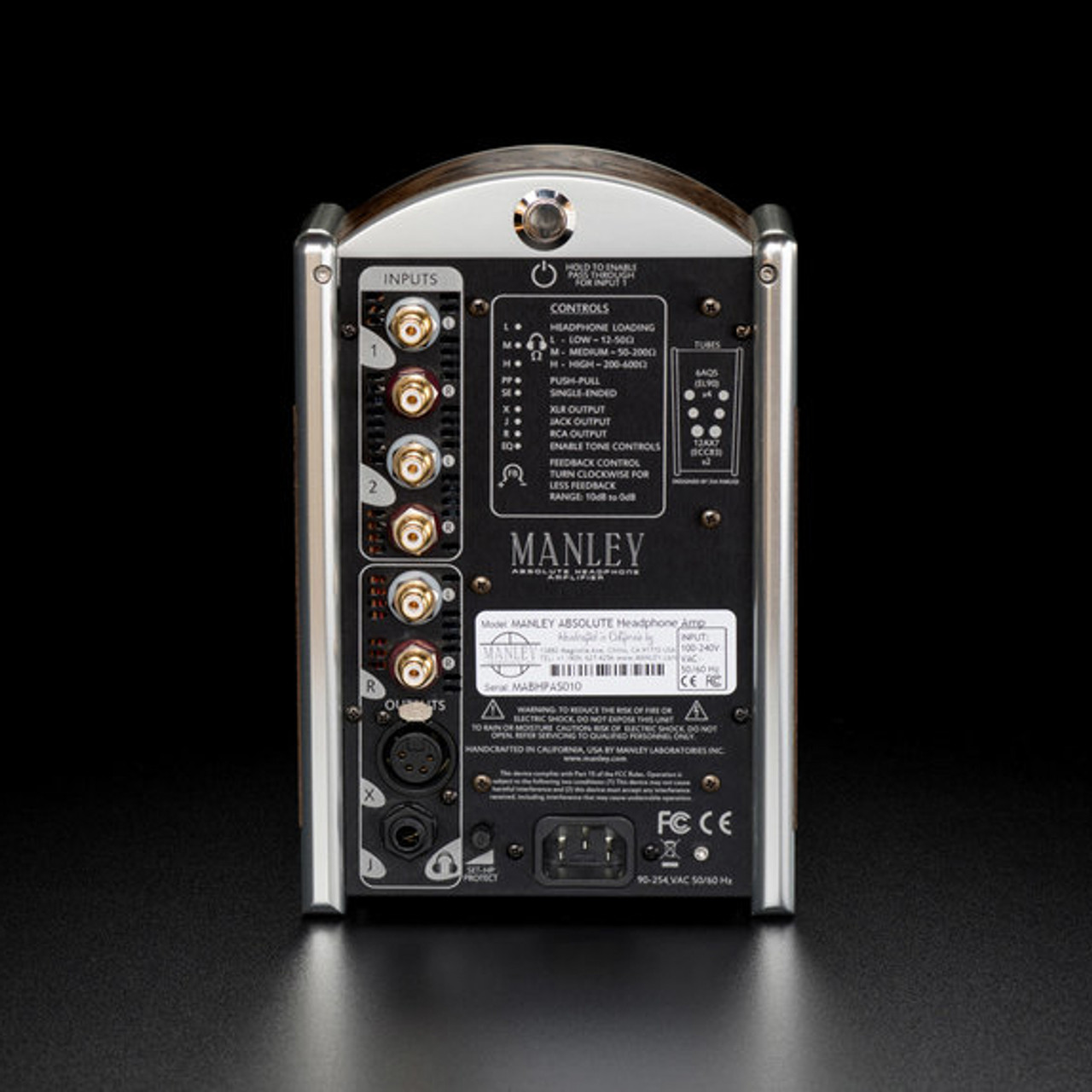

Outputs (transformer coupled)1 pair RCA- Unbalanced (Preamp Output), 1 x TRS ¼ JACK Unbalanced, 1 x 4 PIN XLR- Balanced
XLR-pin outs: (Left Channel Pin 1= Signal (+), Pin 2= Signal (-), Right Channel Pin 3= Signal (+), Pin 4= Signal (-))
Output ImpedanceSwitchable: Low 12-50 Ohm, Mid 50-200 Ohm, High 200-600 Ohms
Maximum Output Power: = 1W into 12 Ohms BW 22Hz-22kHz
Variable Feedback Control (FB):MIN 0dB, MAX 10dB, (Conditions: BAL output, PP mode, 16 ohm load, VOLUME max, EQ out)
Signal to Noise Ratio:83 dB (1kHz sine wave, 100mW output, BW 22Hz-22kHz), (Conditions: BAL output, PP mode, FB 12:00 oclock, 16 ohm load, VOLUME max, EQ out)
Noise Floor:-80 dBu BW 22Hz-22kHz, -85 dBu A-Weighted, (Conditions: BAL output, PP mode, FB 12:00 oclock, 16 ohm load, VOLUME MAX, EQ out)
Channel Crosstalk:-71 dB (1kHz sine wave, 100mW output, BW 22Hz-22kHz) Left Channel, -72 dB (1kHz sine wave, 100mW output, BW 22Hz-22kHz) Right Channel, (Conditions: BAL output, PP mode, FB 12:00 oclock, 16 ohm load, EQ out)
Balance Control Channel attenuation:Left Channel= 72dB (1kHz sine wave, 100mW output, BW 22Hz-22kHz), Right Channel= 72dB (1kHz tone, 100mW output, BW 22Hz-22kHz), (Conditions: BAL output, PP mode, FB Min, 16 ohm load, EQ out)
Frequency Response:Push-Pull= Flat 10Hz 20 kHz (-1dB @ 40 kHz), Single-Ended= 20Hz 20 kHz (-0.5dB @ 10Hz, -1dB @ 50 kHz), (Conditions: BAL output, 100mW output, FB @ 12:00 oclock, 16 ohm load, EQ out)
Distortion:Push-Pull= 0.16% THD+N (BW 20Hz-22kHz), Single-Ended= 1.0% THD+N (BW 20Hz-22kHz), (Conditions: BAL output, PP mode, 1 kHz sine, 100mW output, FB @ 12:00 oclock, 16 ohm load, EQ out)
