The MMF-11.3 with Project 9CC Evolution Tonearm & Four-Plinth Design is Music Hall's Flagship Turntable!
Call for Special Package Pricing: 1-800-782-3472 or 1-765-608-5340.
Cartridge is factory and professionally installed and adjusted by manufacturer.
The Music Hall MMF-11.3 Turntable, their flagship model, is a 2-speed belt driven audiophile turntable featuring the unique quadruple-plinth construction originated by Music Hall. The distinctive design isolates the critical sound reproducing components; platter, main bearing, tone arm, and cartridge on the top platform from the adjustable magnetic-levitation feet, microprocessor speed control, motors, flywheel, and wiring which are mounted to the bottom plinth.
The Music Hall MMF-11.3 Turntable's motors, flywheel, and speed control are further isolated on their own vibration damped dual-plinth platform which is isolated from the upper three main plinths. Sorbothane hemispheres separate each of the three main plinths and provide additional vibration damping. The bottom plinth operates as a mass-loaded resonant sink for the entire turntable. Two motors and a flywheel are used to increase torque and speed stability. The Music Hall MMF-11.3 Turntable comes in a high-gloss piano black lacquer finish and ships without cartridge. A large encapsulating acrylic dust cover is included.
"The Music Hall MMF 11.3 is the company's most expensive turntable andÂ… also their best. It produced a pleasingly smooth, well-detailed sonic picture that makes up in relaxation and long-term listenability what it gives up in terms of transient attack speed and precision and ultra-tight punchy bassÂ… if you listen mostly to acoustic music-jazz, folk and classical-it's definitely worthy of your attention." -Analog Planet
Features:
• Music Hall's Unique Quadruple-Plinth Design w/Sorbothane Vibration Isolation
• One-Piece Project '9CC Evolution' Carbon Fiber Tonearm
• Tonearm uses four Hardened Swiss ABEC 7 Ball Races in an Inverted Bearing Design
• Tonearm is Internally Wired with Flexible Wire drawn from High Purity Copper with only two contact points from cartridge to output connectors
• Highly regarded Ortofon Cadenza Black MC Cartridge factory installed on the tonearm.
• Counterweight’s center of gravity is level with the stylus tip is decoupled from the arm and acts as a resonance damper
• Fully adjustable azimuth, VTA, and dampened arm lift
• Exclusive microprocessor electronic speed controlled dual motor single flywheel drive system
• 33 1/3 and 45 rpm speed change at the touch of button
• Motors and flywheel assembly are isolated on mass loaded resonant sink connected to the lower plinth
• Dual motor flywheel system sits on the left side of the turntable thus eliminating all motor and belt vibration from the cartridge

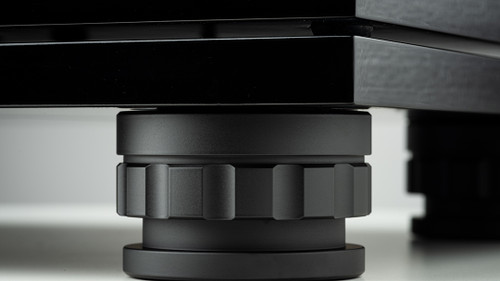

• Magnetic-levitation adjustable feet
• Inverted ceramic main bearing for super quiet fluid operation
• Thick acrylic platter
• Removable acrylic dust cover
• High quality gold RCA connectors with detachable phono cable
• Low noise fully manual belt-drive design, dust cover, 45rpm adaptor
• Ships securely in a substantial wood box
• Excellent instruction manual and easy assembly
Specifications:
Speed of turntable: 33 1/3 or 45 RPM
Change speed: Electronically, luminous buttons
Deviation speed: Less Than +/-0.1%
variance speed: Less Than +/-0.08%
Mechanical distance: Greater Than -45dB
Electrical distance: Greater Than -65dB
Drive: Silicone belt over pulley
Motor: 2 x synchronous motors, the motor is controlled via microprocessor
Platter: Acrylic (11.8 in.) Weight – (7.4lbs.)
Power: Switching power supply (90 – 246 VAC, 47-63Hz) type EU,UK,USA
Electric input: 23W DC
Effective arm length: 9in. (230 mm)
Effective arm mass: 8.5g
Mounting distance: 8.3 in (212 mm)
Overlap: 0.71 in (18 mm)
Angle crank: 24 Degrees
Course zero error angle: 130.5, 243.7
Force on the tip: 0-3g
Material of plinth: MDF
Material of belt: silicone rubber
Dimensions: 21.3 x 13.8 x 7.8 in (540 x 350 x 197 mm)
Weight: 39.5 lbs. (17.9 kg)
Click Here for the Music Hall MMF-11.3 Turntable Manual!
Call for Special Package Pricing: 1-800-782-3472 or 1-765-608-5340.
Cartridge is factory and professionally installed and adjusted by manufacturer.
The Music Hall MMF-11.3 Turntable, their flagship model, is a 2-speed belt driven audiophile turntable featuring the unique quadruple-plinth construction originated by Music Hall. The distinctive design isolates the critical sound reproducing components; platter, main bearing, tone arm, and cartridge on the top platform from the adjustable magnetic-levitation feet, microprocessor speed control, motors, flywheel, and wiring which are mounted to the bottom plinth.
The Music Hall MMF-11.3 Turntable's motors, flywheel, and speed control are further isolated on their own vibration damped dual-plinth platform which is isolated from the upper three main plinths. Sorbothane hemispheres separate each of the three main plinths and provide additional vibration damping. The bottom plinth operates as a mass-loaded resonant sink for the entire turntable. Two motors and a flywheel are used to increase torque and speed stability. The Music Hall MMF-11.3 Turntable comes in a high-gloss piano black lacquer finish and ships without cartridge. A large encapsulating acrylic dust cover is included.
"The Music Hall MMF 11.3 is the company's most expensive turntable andÂ… also their best. It produced a pleasingly smooth, well-detailed sonic picture that makes up in relaxation and long-term listenability what it gives up in terms of transient attack speed and precision and ultra-tight punchy bassÂ… if you listen mostly to acoustic music-jazz, folk and classical-it's definitely worthy of your attention." -Analog Planet
Features:
• Music Hall's Unique Quadruple-Plinth Design w/Sorbothane Vibration Isolation
• One-Piece Project '9CC Evolution' Carbon Fiber Tonearm
• Tonearm uses four Hardened Swiss ABEC 7 Ball Races in an Inverted Bearing Design
• Tonearm is Internally Wired with Flexible Wire drawn from High Purity Copper with only two contact points from cartridge to output connectors
• Highly regarded Ortofon Cadenza Black MC Cartridge factory installed on the tonearm.
• Counterweight’s center of gravity is level with the stylus tip is decoupled from the arm and acts as a resonance damper
• Fully adjustable azimuth, VTA, and dampened arm lift
• Exclusive microprocessor electronic speed controlled dual motor single flywheel drive system
• 33 1/3 and 45 rpm speed change at the touch of button
• Motors and flywheel assembly are isolated on mass loaded resonant sink connected to the lower plinth
• Dual motor flywheel system sits on the left side of the turntable thus eliminating all motor and belt vibration from the cartridge
• Magnetic-levitation adjustable feet
• Inverted ceramic main bearing for super quiet fluid operation
• Thick acrylic platter
• Removable acrylic dust cover
• High quality gold RCA connectors with detachable phono cable
• Low noise fully manual belt-drive design, dust cover, 45rpm adaptor
• Ships securely in a substantial wood box
• Excellent instruction manual and easy assembly
Specifications:
Speed of turntable: 33 1/3 or 45 RPM
Change speed: Electronically, luminous buttons
Deviation speed: Less Than +/-0.1%
variance speed: Less Than +/-0.08%
Mechanical distance: Greater Than -45dB
Electrical distance: Greater Than -65dB
Drive: Silicone belt over pulley
Motor: 2 x synchronous motors, the motor is controlled via microprocessor
Platter: Acrylic (11.8 in.) Weight – (7.4lbs.)
Power: Switching power supply (90 – 246 VAC, 47-63Hz) type EU,UK,USA
Electric input: 23W DC
Effective arm length: 9in. (230 mm)
Effective arm mass: 8.5g
Mounting distance: 8.3 in (212 mm)
Overlap: 0.71 in (18 mm)
Angle crank: 24 Degrees
Course zero error angle: 130.5, 243.7
Force on the tip: 0-3g
Material of plinth: MDF
Material of belt: silicone rubber
Dimensions: 21.3 x 13.8 x 7.8 in (540 x 350 x 197 mm)
Weight: 39.5 lbs. (17.9 kg)
Cartridge Specifications
| Output voltage at 1000 Hz, 5cm/sec. | 0,33 mV |
|---|---|
| Channel balance at 1 kHz | < 0,8 dB |
| Channel separation at 1 kHz | > 27 dB |
| Channel separation at 15 kHz | > 20 dB |
| Frequency range at 3dB | 20 - 60.000 Hz |
| Frequency response 20 kHz | 20 kHz: +1,5/0 |
| Tracking ability at 315Hz at recommended tracking force* | 90 µm |
| Compliance, dynamic, lateral | 16 µm/mN |
| Stylus type | Nude Shibata on Boron cantilever |
| Stylus tip radius | r/R 6/50 µm |
| Tracking force range | 2,0-2,5 g (20-25 mN) |
| Tracking force, recommended | 2,3 g (23 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 5 Ohm |
| Recommended load impedance | > 10 Ohm |
| Cartridge body material | Stainless steel Aluminium |
| Cartridge colour | Black/Black |
| Cartridge weight | 10,7 gram |
| Warranty | 1 Year |
*Typical value
