Brand: Music Hall

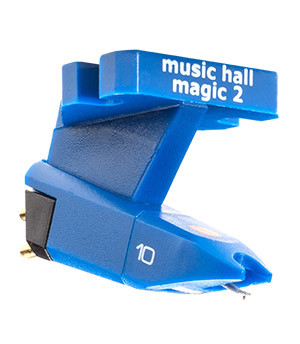

Music Hall Magic 2 MM Cartridge 4.0mV

$127.49 $149.99

(You save $22.50 )

Availability: Discontinued

In Stock	An In Stock item is available to ship normally within 24 business hours.
Preorder	A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release 'TBA.' This means that release date is yet 'To Be Announced'. The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered	An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress	Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On	When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order	A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.

SKU:

MHMMMAGIC2

UPC:

091037334541

Current Stock:

Description

The Music Hall Magic 2 is specially made by Ortofon. It has a user replaceable stylus and 4mV output.

Specifications:
Output voltage at 1000 Hz, 5cm/sec: 4 mV
Channel balance at 1 kHz: 2 dB
Channel separation at 15 kHz: 15 dB
Frequency range at -3dB: 20-22,000 Hz
Frequency response: 20-18,000 Hz +2/-3 dB
Tracking ability at 315Hz at recommended tracking force: 60 µm
Compliance, dynamic, lateral: 20 µm/mN
Stylus type: Elliptical
Stylus tip radius: r/R 8/18 µm
Tracking force range: 1,5-2,0 g (15-20 mN)
Tracking force, recommended: 1,75 g (17,5 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 750 Ohm
Internal inductance: 450 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 200-600 pF
Catridge weight: 0.01 lbs
