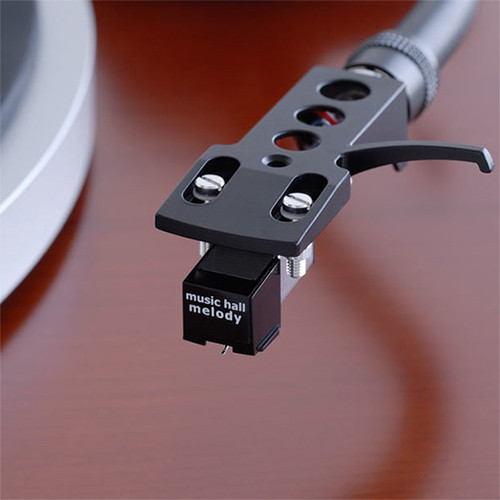

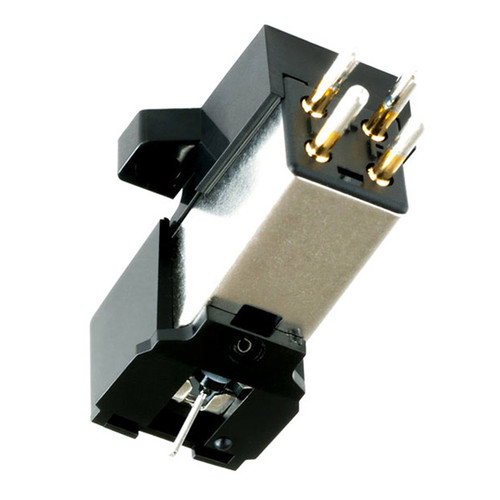

The Music Hall Melody features Clean Clear Distortion-Free Sound!
Developed and built specially for Music Hall by Audio Technica, the Melody offers exceptional performance at an affordable price. The cartridge incorporates a low-mass aluminum cantilever which responds more quickly and accurately to undulations in the record groove thus producing a clean clear distortion-free sound. The Melody is easy to use and is compatible with a wide range of tonearms and turntables. Built for longevity, it features a user-replaceable stylus.
Specifications:
Frequency Response: 20Hz – 20kHz ± 3dB
Channel Balance: 1.5dB @ 1kHz
Channel Separation: >20dB @ 1kHz
Output: 3.5mV ± 2dB, 1kHz @ 5cm/sec
Vertical Tracking Angle: 20 degrees
Stylus Shape: Conical 0.6 mil
Stylus Type: Replaceable
Cantilever: Aluminum pipe
Load Impedance: 47,000 Ohm
Stylus Construction: Bonded round shank
Cartridge Weight: 5.0g
Fixing Center: 0.5" (12.7mm)
Playing Weight: 1.5 – 2.5g (2.0g nom.)
Developed and built specially for Music Hall by Audio Technica, the Melody offers exceptional performance at an affordable price. The cartridge incorporates a low-mass aluminum cantilever which responds more quickly and accurately to undulations in the record groove thus producing a clean clear distortion-free sound. The Melody is easy to use and is compatible with a wide range of tonearms and turntables. Built for longevity, it features a user-replaceable stylus.
Specifications:
Frequency Response: 20Hz – 20kHz ± 3dB
Channel Balance: 1.5dB @ 1kHz
Channel Separation: >20dB @ 1kHz
Output: 3.5mV ± 2dB, 1kHz @ 5cm/sec
Vertical Tracking Angle: 20 degrees
Stylus Shape: Conical 0.6 mil
Stylus Type: Replaceable
Cantilever: Aluminum pipe
Load Impedance: 47,000 Ohm
Stylus Construction: Bonded round shank
Cartridge Weight: 5.0g
Fixing Center: 0.5" (12.7mm)
Playing Weight: 1.5 – 2.5g (2.0g nom.)
