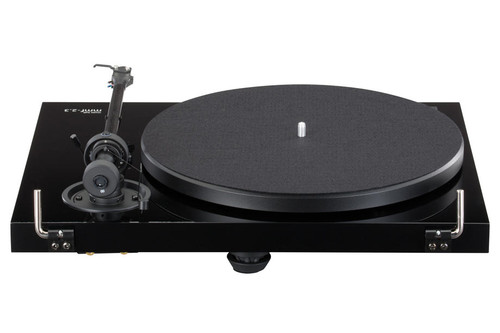

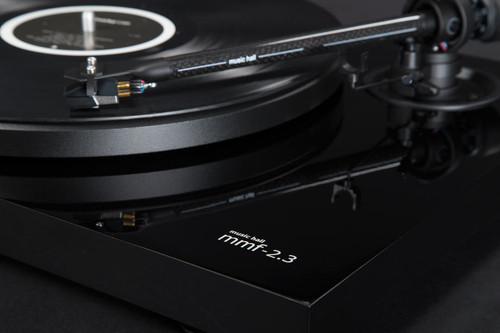

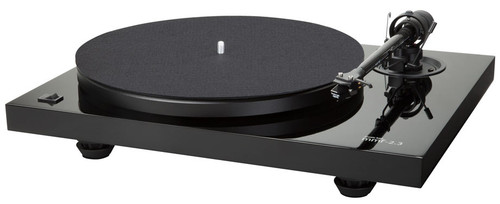

The New & Improved version of the Award Winning MMF-2.2 is here! Music Hall's MMF-2.3 Turntable features a gorgeous high gloss piano black finish, special vibration damping adjustable feet, carbon fiber tonearm & Music Hall Spirit MM Cartridge!
The Music Hall MMF-2.3 is a 2-speed belt driven audiophile turntable at a budget price! Constructed using high quality components, the Music Hall MMF-2.3 comes complete with a carbon fiber tonearm, mounted Music Hall Spirit MM Cartridge and removable Dust Cover!
The Music Hall MMF-2.3 is constructed using high quality components and it comes complete with a tonearm and cartridge mounted. The construction of the mmf-2.3 has been simplified to focus on the critical components: the bearing, the motor, and the tonearm.
Features:
Gorgeous high gloss piano black lacquer finish
Special vibration damping adjustable feet
Top tier 8.6" carbon fiber tonearm with aluminum headshell
Low noise fully manual belt-drive design
Separately isolated DC synchronous motor for superior speed stability
Two-speed stepped motor pulley for 33 1/3 and 45 rpm
Music hall Spirit moving-magnet cartridge with replaceable elliptical stylus ($100 value)
The cartridge supplied is properly aligned and mounted
High precision stainless steel and bronze bearing assembly for quiet fluid operation
High quality gold RCA connectors with detachable phono cable
Full-size alloy platter and felt mat
Excellent instruction manual
Quick and easy to assemble
Dust Cover and 45 rpm adaptor
Music Hall MMF-2.3 Turntable Specifications:
Power Supply: 15V / 0-0.8mA DC universal power supply
Power Connection: 110/120 or 230/240 Volt, 50 or 60 Hz
Standby Power Consumption: Less Than 1 W
Speeds: 33 1/3 rpm (manual change to 45 rpm)
Wow and Flutter: +/- 0.10 %
Speed Deviation: +/- 0.80%
Rumble Max: Greater Than 68 db
Effective Tonearm Length: 8.6 in. (218.5 mm)
Effective Arm Mass: 7.0 g
Overhang: 18.5 mm
Table Dimensions: W17 x D13 x H4.5 in.
Table Weight: 17lbs. pkg.
Includes: 1 year manufacturer warranty.
Music Hall Spirit MM Cartridge Specifications:
Frequency Response: 20Hz20kHz +/-3dB
Channel Balance: 2.5dB @ 1kHz
Channel Separation: Greater Than 20dB @ 1kHz
Output: 3.5mV +/-2dB, 1kHz @ 5cm/sec
Vertical Tracking Angle: 20 degrees
Stylus Shape: Elliptical 0.4 x 0.7 mil
Stylus Type: Replaceable
Cantilever: Alloy tube
Load Impedance: 47,000 Ohm
Stylus Construction: Bonded Round Shank
Cartridge Weight: 5.7g
Fixing Center: 0.5" (12.7mm)
Playing Weight 1.52.5g (2.0g nom.)
Click Here for the Music Hall MMF-2.3 Turntable Manual!
