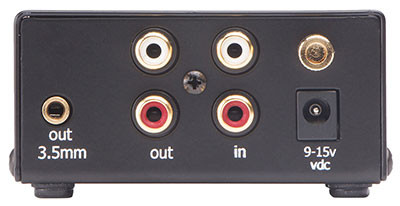

The Music Hall Mini is a solid state moving magnet phono preamp for use with moving magnet and high output moving coil cartridges. The Mini is designed to amplify an RIAA equalized phono signal to a high level signal. ItÂ’s low-priced, cheerful, and built in the USA.
Specifications:
RIAA equalization: +/- 1.5 dB, 20Hz to 20kHz
I/o connectors: RCA, 3.5mm trs stereo
Input sensitivity: 35 dB gain @1kHz, 47k Ohms Input Z
Input capacitance: 5pf + cable capacitance
Input impedance: 50k Ohms
Output impedance: 1 K Ohms
Max output level: >10dB @ 1kHz at .1% dist
S/n ratio: >80 dB unweighted
Thd: .02% @ 1KHz
Pwr: 9 – 15 VDC
Indicator: 1 power LED
Black Steel Chassis
Dimensions (w x h x d): 3.25" x 1.5" x 2"
Weight: 1.5 lbs
