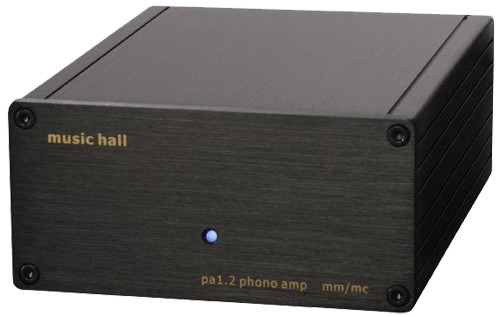

Music Hall PA1.2 MM/MC Phono Stage
Music Hall PA1.2 MM/MC Phono Stage

Share:

Music Hall PA1.2 MM/MC Phono Stage

$174.99



Availability: In Stock
In Stock An In Stock item is available to ship normally within 24 business hours.
Preorder A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release "TBA." This means that release date is yet "To Be Announced". The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Out of Stock An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of.
Awaiting Repress Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description.
Special Order A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.
SKU:
MHPA12
UPC:
MHPA12
The Music Hall PA1.2 MM/MC Phono Stage is a perfect solution for attaching a turntable to today’s audio equipment. It is a low-noise, high quality phono pre amp that accepts both moving-magnet and moving-coil cartridges. The beautifully finished extruded aluminum box wards off the effects of stray magnetic fields and provides a safe quiet environment for the sensitive electronics it houses thus providing you with the best sound possible from your turntable.

Offering outstanding performance at a budget price, the Music Hall PA1.2 MM/MC Phono Amp is the perfect phono amp to mate with Music Hall entry level turntables. The PA1.2 features MM/MC phono equalization, comes with an external power supply, and is easy to uses.

Specifications:
Gain: MM/MC 40dB / 60 dB
Input Sensitivity: MM/MC 5mV/1kHz / 0.45mV/1kHz
Input Impedance: MM/MC 47Kohms/120pF / 100 ohms/120pF
Output Voltage: Typically MM/MC 300mV@1kHz – 3mV / 0.3mV
Total Harmonic Distortion: MM/MC Less than 0.01 / Less than 0.05%
RIAA Curve Accuracy: 20Hz-20kHz / 0.5dB
Signal to noise Ratio: MM/MC -86dB / -68dB (-94dB / -75 dB – A weighted)
Output voltage: 15V/300mA AC
External power supply
Rigid extruded aluminum chassis
Dimensions (W x D x H in inches): 4.2 x 6 x 2.1
Weight: 2 lbs
Description
The Music Hall PA1.2 MM/MC Phono Stage is a perfect solution for attaching a turntable to today’s audio equipment. It is a low-noise, high quality phono pre amp that accepts both moving-magnet and moving-coil cartridges. The beautifully finished extruded aluminum box wards off the effects of stray magnetic fields and provides a safe quiet environment for the sensitive electronics it houses thus providing you with the best sound possible from your turntable.

Offering outstanding performance at a budget price, the Music Hall PA1.2 MM/MC Phono Amp is the perfect phono amp to mate with Music Hall entry level turntables. The PA1.2 features MM/MC phono equalization, comes with an external power supply, and is easy to uses.

Specifications:
Gain: MM/MC 40dB / 60 dB
Input Sensitivity: MM/MC 5mV/1kHz / 0.45mV/1kHz
Input Impedance: MM/MC 47Kohms/120pF / 100 ohms/120pF
Output Voltage: Typically MM/MC 300mV@1kHz – 3mV / 0.3mV
Total Harmonic Distortion: MM/MC Less than 0.01 / Less than 0.05%
RIAA Curve Accuracy: 20Hz-20kHz / 0.5dB
Signal to noise Ratio: MM/MC -86dB / -68dB (-94dB / -75 dB – A weighted)
Output voltage: 15V/300mA AC
External power supply
Rigid extruded aluminum chassis
Dimensions (W x D x H in inches): 4.2 x 6 x 2.1
Weight: 2 lbs
