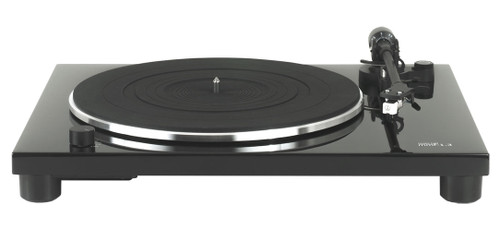

A turntable, Phono Preamp & Cartridge All-In-One!
The Music Hall MMF-1.3 Turntable is a 3-speed, belt driven audiophile turntable with a built-in phono preamp and a pre-mounted cartridge at a bargain price! Music Hall's new entry-level turntable provides a feature set that is unrivaled at its price. With a built-in phono preamplifier and a quality, pre-mounted cartridge, the MMF-1.3 is everything you need to start listening to vinyl right out of the box!
Features:
• Belt drive
• Electronic speed controlled motor

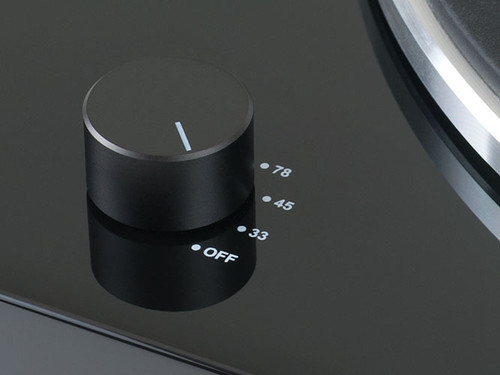

• Built-in speed control circuit ensures the accuracy of the mmf-1.3’s 3 speeds: 33 1/3, 45, and 78 rpm
• Aluminum tonearm with removable headshell
• Piano black MDF plinth
• Vibration-damping rubber platter mat

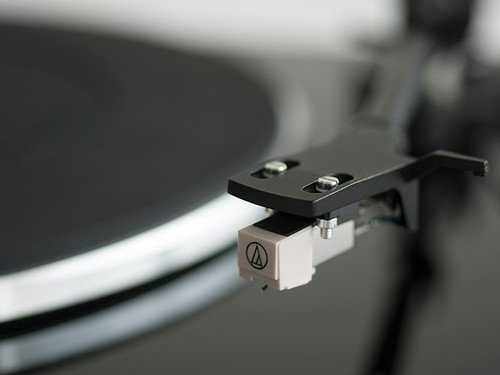

• Quality Audio Technica AT3600L cartridge ($50 value) is pre-mounted and precision-aligned

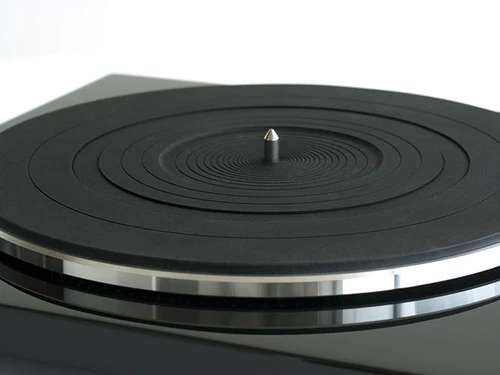

• Thick rubber mat—which rests upon an aircraft-grade aluminum platter—dampens ambient vibration

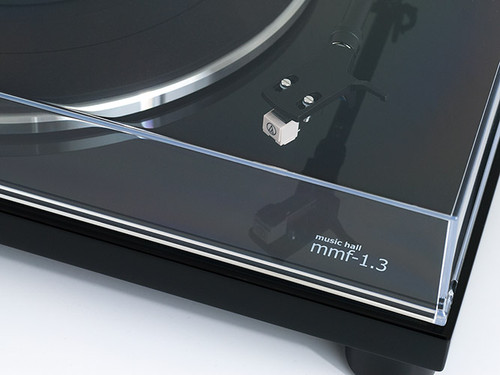

• Hinged dust cover keeps your MMF-1.3 protected when not in use.

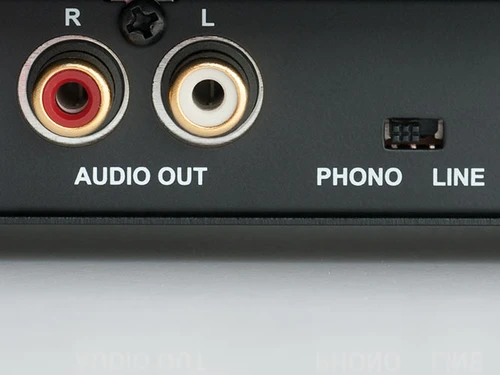

• Built-in phono preamplifier allows you to connect the mmf-1.3 directly to your current system
• Belt comes pre-mounted to the platter, making setup a snap
• Removable RCA cables
• Vibration damping feet
Specifications:
General Section:
Power Supply: DC12V,2.0A, universal power supply
Consumption: 4W
Dimensions: 17.1(W) x 14.5(D) x 4.2(H) in., 435(W) x 367(D) x 106(H) mm
Weight: 11lbs. (5Kg)
Turntable Section:
Type: 3-speed full manual
Motor: DC motor
Driving Method: belt drive
Turntable Platter: 296mm dia. aluminum die-cast
Speeds: 33 1/3, 45, and 78rpm
Wow and Flutter: typical: less than 0.1% WTD at 3KHz RMS(CD-4005)
Limit: Less than 0.15% WTD at 3KHz RMS(CD-4005)
S/N ratio: more than 62dB (DIN-B) (SS-4242)
Speed Tolerance: 3000Hz +/-1%(CD-4005)
Cartridge Section:
Type: moving magnetic cartridge
Stylus: diamond stylus
Height of Arm Lifter: 7.5mm (the distance between the record and the stylus when the lifter lever is pulled up)
Channel Separation: within 2.5 dB at 1KHz (CD-4005)
Channel Balance: within 2.5 dB at 1KHz (CD-4005)
Phono Output Level: 1.5~3.6 mV at 1KHz 5cm/sec (CD-4005)
Line Output: 90-216 mV at 1KHz 5cm/sec (CD-4005)
RIAA: 20Hz~20KHz: +1/-3 dB
Cartridge:
Cartridge: AT3600L
Output Voltage: 2.5mV +/- 3dB at 1KHz 3.54cm/sec (AT6606A)
Channel Separation: more than 18dB (AT6606A)
Channel Balance: within 2dB at 1KHz (AT6606A)
Frequency Response: 0 +/-3dB at 10KHz (AT6606A)(Value at 10KHz based on value at 1KHz)
Tracking Force: 3.5 ± 0.5 g
Tonearm Section:
Type: dynamic balanced straight shaped w/soft damping control
Effective Arm Length: 221.5mm
Overhang: 19mm
Offset Angle: 25.61
Tracking Error Angle: 3 degree or less
Stylus Pressure Adjustment Method: rotation movability
Arm Lifter: oil damper type
The Music Hall MMF-1.3 Turntable is a 3-speed, belt driven audiophile turntable with a built-in phono preamp and a pre-mounted cartridge at a bargain price! Music Hall's new entry-level turntable provides a feature set that is unrivaled at its price. With a built-in phono preamplifier and a quality, pre-mounted cartridge, the MMF-1.3 is everything you need to start listening to vinyl right out of the box!
Features:
• Belt drive
• Electronic speed controlled motor
• Built-in speed control circuit ensures the accuracy of the mmf-1.3’s 3 speeds: 33 1/3, 45, and 78 rpm
• Aluminum tonearm with removable headshell
• Piano black MDF plinth
• Vibration-damping rubber platter mat
• Quality Audio Technica AT3600L cartridge ($50 value) is pre-mounted and precision-aligned
• Thick rubber mat—which rests upon an aircraft-grade aluminum platter—dampens ambient vibration
• Hinged dust cover keeps your MMF-1.3 protected when not in use.
• Built-in phono preamplifier allows you to connect the mmf-1.3 directly to your current system
• Belt comes pre-mounted to the platter, making setup a snap
• Removable RCA cables
• Vibration damping feet
Specifications:
General Section:
Power Supply: DC12V,2.0A, universal power supply
Consumption: 4W
Dimensions: 17.1(W) x 14.5(D) x 4.2(H) in., 435(W) x 367(D) x 106(H) mm
Weight: 11lbs. (5Kg)
Turntable Section:
Type: 3-speed full manual
Motor: DC motor
Driving Method: belt drive
Turntable Platter: 296mm dia. aluminum die-cast
Speeds: 33 1/3, 45, and 78rpm
Wow and Flutter: typical: less than 0.1% WTD at 3KHz RMS(CD-4005)
Limit: Less than 0.15% WTD at 3KHz RMS(CD-4005)
S/N ratio: more than 62dB (DIN-B) (SS-4242)
Speed Tolerance: 3000Hz +/-1%(CD-4005)
Cartridge Section:
Type: moving magnetic cartridge
Stylus: diamond stylus
Height of Arm Lifter: 7.5mm (the distance between the record and the stylus when the lifter lever is pulled up)
Channel Separation: within 2.5 dB at 1KHz (CD-4005)
Channel Balance: within 2.5 dB at 1KHz (CD-4005)
Phono Output Level: 1.5~3.6 mV at 1KHz 5cm/sec (CD-4005)
Line Output: 90-216 mV at 1KHz 5cm/sec (CD-4005)
RIAA: 20Hz~20KHz: +1/-3 dB
Cartridge:
Cartridge: AT3600L
Output Voltage: 2.5mV +/- 3dB at 1KHz 3.54cm/sec (AT6606A)
Channel Separation: more than 18dB (AT6606A)
Channel Balance: within 2dB at 1KHz (AT6606A)
Frequency Response: 0 +/-3dB at 10KHz (AT6606A)(Value at 10KHz based on value at 1KHz)
Tracking Force: 3.5 ± 0.5 g
Tonearm Section:
Type: dynamic balanced straight shaped w/soft damping control
Effective Arm Length: 221.5mm
Overhang: 19mm
Offset Angle: 25.61
Tracking Error Angle: 3 degree or less
Stylus Pressure Adjustment Method: rotation movability
Arm Lifter: oil damper type
