Save 35% on this open box Music Hall MMF 1.5 Turntable!
The sexy Music Hall MMF-1.5 sets the gold standard in performance and affordability with a classic look!
The stunning Music Hall MMF-1.5 with its superior S-shaped alloy tonearm, Music Hall Melody cartridge, 3-speed belt drive design, and built-in phono pre-amp is a beautifully refined piece.
More than just a pretty piece of Cherry Wood, Music Hall has made a significant number of improvements to the mmf-1.3 in the development of the 1.5 that together add up to a huge improvement in sound. The short list: improved plinth, platter, tonearm, and cartridge. Drop a piece of vinyl on the 1.5 and discover how truly good it sounds. From the first music note to the final fade-out, the music hall mmf-1.5 sets your world to groove and your feet to dance.
A top-quality music hall melody cartridge comes pre-mounted and precision-aligned. A built-in phono preamplifier allows you to connect directly to your current system. Gorgeous real cherry wood veneer and an S-shaped aluminum tonearm. The belt comes pre-mounted to the platter, making setup a snap. A built-in speed control circuit ensures the accuracy of the mmf-1.5Â’s 3 speeds. A hinged dust cover keeps your mmf-1.5 protected when not in use.
Features:
• Gorgeous real cherry wood veneer

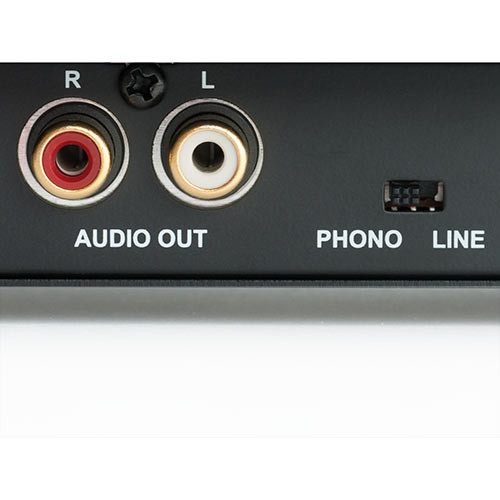

• Built-in phono pre-amplifier which is by-passable if plugging into an existing phono pre-amp
• S-shaped aluminum tonearm, 9"
• Removable headshell for easy cartridge changing
• Low noise belt-drive design
• Stiff and solid MDF plinth
• Separately isolated DC synchronous motor for superior speed stability
• Three-speed motor provides 33 1/3, 45, and 78 rpm
• Properly aligned and mounted Music Hall Melody ($75 value) moving magnet cartridge
• Adjustable electronic speed control
• Special vibration damping feet
• High quality gold RCA connectors with detachable phono cable included
• Full-size aluminum platter and special vibration damping platter mat
• Worldwide compatibility
• Excellent instruction manual
• Dust cover and 45 rpm adaptor
• Quick and easy to assemble
Specifications:
General Section:
Power supply: DC12V,2.0A, universal power supply
Consumption: 4W
Ddimensions: 17.1(W) x 14.5(D) x 5(H) in., 435(W) x 367(D) x 127(H) mm
Weight: 12lbs., 5.4Kg
Turntable Section:
Type: 3-speed full manual
Motor: DC motor
Driving method: belt drive
Turntable platter: 305mm dia. aluminum die-cast
Speeds: 33 1/3, 45, and 78rpm
Wow and flutter: typical: less than 0.1% WTD at 3KHz RMS(CD-4005), limit: Less than 0.15% WTD at 3KHz RMS(CD-4005)
S/N ratio: typicalL: More than 65dB (DIN-B) (SS-4242), limit: More than 62dB (DIN-B) (SS-4242)
Speed tolerance: 3000Hz +/- 1%(CD-4005)
Cartridge Section:
Type: moving magnetic cartridge
Stylus: diamond stylus
Channel separation: more than 15 dB at 1KHz (CD-4005)
Channel balance: within 2.5 dB at 1KHz (CD-4005)
Phono output level: 1.5-3.6 mV at 1KHz 5cm/sec (CD-4005)
Line output: 90-216 mV at 1KHz 5cm/sec (CD-4005)
RIAA: 20Hz-20KHz: +1/-3 dB

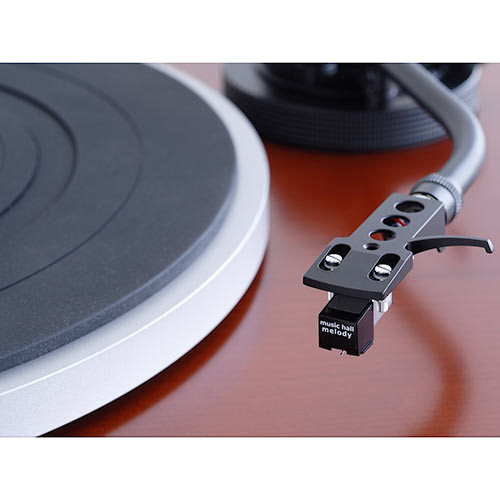

Cartridge:
Cartridge: music hall melody
Output voltage: 2.5mV +/- 3dB at 1KHz 3.54cm/sec
Channel separation: measurement point 1KHz over 18dB
Channel balance: 25 dB or less at 1KHz
Frequency response: measurement point 10KHz / 1KHz 0 +/- 3dB
Tracking force: 2.0 +/- 0.5 grams

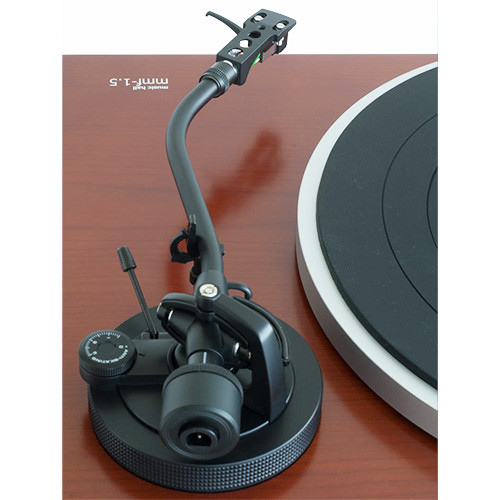

Tonearm Section:
Type: static balanced S-shaped
Effective arm length: 230mm
Overhang: 15mm
Offset angle: 22 degrees
Tracking error angle: 3 degrees or less
Stylus pressure adjustment method: rotation movability (1-rotation 4g)
Applicable cartridge weight: 5-8.5g (including headshell 15-18.5g)
Anti-skating adjustment range: 0-3g
Arm lifter: oil damper type
Height of stylus: 8-10.5mm
Lifter descent time: 1.5-3 sec (stylus pressure: 2g)
Horizontal sensitivity: less than 0.2g
Vertical sensitivity: less than 0.2g
