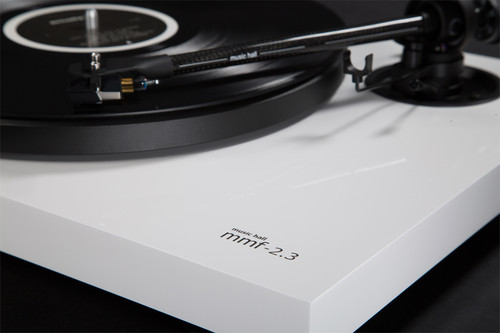

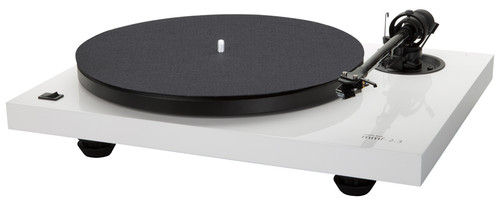

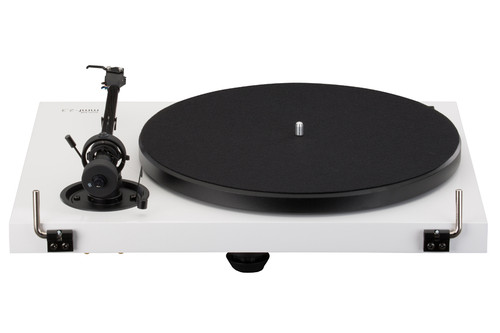

The New & Improved version of the Award Winning MMF-2.2 is here! Music Hall's MMF-2.3 Turntable features a gorgeous high gloss white finish, special vibration damping adjustable feet, carbon fiber tonearm & Music Hall Spirit MM Cartridge!
The Music Hall MMF-2.3 is a 2-speed belt driven audiophile turntable at a budget price! Constructed using high quality components, the Music Hall MMF-2.3 comes complete with a carbon fiber tonearm, mounted Music Hall Spirit MM Cartridge and removable Dust Cover!
The Music Hall MMF-2.3 is constructed using high quality components and it comes complete with a tonearm and cartridge mounted. The construction of the mmf-2.3 has been simplified to focus on the critical components: the bearing, the motor, and the tonearm.
Features:
• Gorgeous high gloss white lacquer finish
• Special vibration damping adjustable feet
• Top tier 8.6" carbon fiber tonearm with aluminum headshell
• Low noise fully manual belt-drive design
• Separately isolated DC synchronous motor for superior speed stability
• Two-speed stepped motor pulley for 33 1/3 and 45 rpm
• Music hall Spirit moving-magnet cartridge with replaceable elliptical stylus ($100 value)
• The cartridge supplied is properly aligned and mounted
• High precision stainless steel and bronze bearing assembly for quiet fluid operation
• High quality gold RCA connectors with detachable phono cable
• Full-size alloy platter and felt mat
• Excellent instruction manual
• Quick and easy to assemble
• Dust Cover and 45 rpm adaptor
Music Hall MMF-2.3 Turntable Specifications:
Power Supply: 15V / 0-0.8mA DC universal power supply
Power Connection: 110/120 or 230/240 Volt, 50 or 60 Hz
Standby Power Consumption: Less Than 1 W
Speeds: 33 1/3 rpm (manual change to 45 rpm)
Wow and Flutter: +/- 0.10 %
Speed Deviation: +/- 0.80%
Rumble Max: Greater Than – 68 db
Effective Tonearm Length: 8.6 in. (218.5 mm)
Effective Arm Mass: 7.0 g
Overhang: 18.5 mm
Table Dimensions: W17 x D13 x H4.5 in.
Table Weight: 17lbs. pkg.
Includes: 1 year manufacturer warranty.
Music Hall Spirit MM Cartridge Specifications:
Frequency Response: 20Hz–20kHz +/-3dB
Channel Balance: 2.5dB @ 1kHz
Channel Separation: Greater Than 20dB @ 1kHz
Output: 3.5mV +/-2dB, 1kHz @ 5cm/sec
Vertical Tracking Angle: 20 degrees
Stylus Shape: Elliptical 0.4 x 0.7 mil
Stylus Type: Replaceable
Cantilever: Alloy tube
Load Impedance: 47,000 Ohm
Stylus Construction: Bonded Round Shank
Cartridge Weight: 5.7g
Fixing Center: 0.5" (12.7mm)
Playing Weight 1.5–2.5g (2.0g nom.)
Click Here for the Music Hall MMF-2.3 Turntable Manual!
