Convenient, easy assembly, plug and play operation!
The Music Hall MMF-5.3 comes with the Ortofon 2M Blue MM Cartridge professionally installed at the factory!

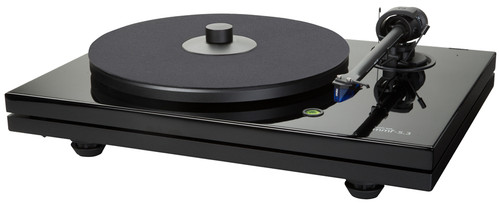

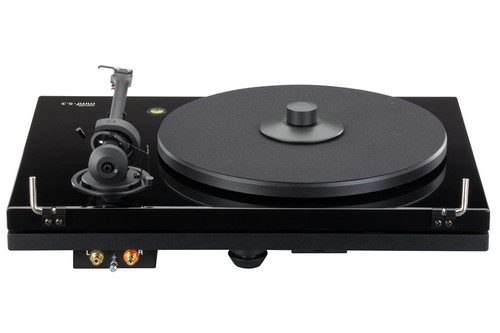

The music hall MMF-5.3 turntable is a 2-speed belt driven audiophile turntable employing the unique dual-plinth construction originated by music hall. The distinctive design isolates the critical sound reproducing components; platter, main bearing, tonearm, and cartridge on the top platform from the motor, switch, wiring, and feet which are mounted on the bottom platform. Viso-elastic cones separate the two platforms and provide vibration damping. The Music Hall MMF-5.3 Turntable comes complete with an Ortofon 2M Blue cartridge.
Features:
• Music Hall's unique dual-plinth construction
• Gorgeous high-gloss piano black lacquer finish
• Top tier 9" alloy tonearm
• Counterweight's center of gravity is level with the stylus tip, is decoupled from the arm, and acts as a resonance damper
• DC synchronous motor for superior speed stability, separately isolated on the lower platform
• Two-speed stepped motor pulley for 33 1/3 and 45 rpm
• Ortofon 2M Blue cartridge with replaceable nude elliptical diamond stylus ($236 value)
• The cartridge supplied is properly aligned and mounted
• Precision stainless steel main bearing sheathed in Teflon for noise-free fluid operation
• Dynamically balanced alloy platter with soft felt mat
• Screw-on record clamp
• High quality gold RCA connectors and detachable phono cable
• Special vibration damping adjustable feet
• Built-in round spirit level for proper leveling
• Low noise fully manual belt-drive design
• Excellent instruction manual and easy assembly
• Dust cover and 45 rpm adaptor included
Music Hall MMF-5.3 Turntable Specifications:
Power Supply: 15V / 0-0.8mA DC universal power supply
Power Connection: 110/120 or 230/240 Volt, 50 or 60 Hz
Standby Power Consumption: Less Than 1 W
Speeds: 33 1/3 rpm (manual change to 45 rpm)
Wow and Flutter: +/- 0.10 %
Speed Deviation: +/- 0.80%
Rumble Max: Greater Than – 70 db
Effective Tonearm Length: 9 in. (230 mm)
Tonearm Weight: 250g (Without Conterweight)
Effective Arm Mass: 8.5 g
Overhang: 18 mm
Table Dimensions: W18.25 x D13.25 x H5.5 in.
Table Weight: 24lbs. pkg.
Includes: 1 year manufacturer warranty.
Ortofon 2M Blue MM Cartridge Specifications:
Output voltage at 1000 Hz: 5cm/sec: 5.5 mV
Channel balance at 1 kHz: 1.5 dB
Channel separation at 1 kHz: 25 dB
Channel separation at 15 kHz: 15 dB
Frequency range at -3dB: 20-25.000 Hz
Frequency response: 20-20.000 Hz +2/-1 dB
Tracking ability at 315Hz at recommended tracking force: 80um
Compliance, dynamic, lateral: 20um/mN
Stylus type: Nude Elliptical
Stylus tip radius: r/R 8/18 um
Tracking force range: 1.6-2.0g (16-20 mN)
Tracking force, recommended: 1.8g (18 mN)
Tracking angle: 20 degrees
Internal impedance, DC resistance: 1.3 kOhm Internal inductance: 700 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 150-300 pF Cartridge weight: 7.2 g
