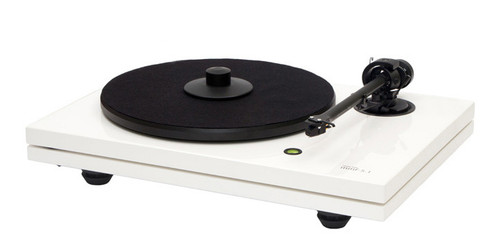

Music Hall MMF-5.3 Turntable with Ortofon 2M Blue MM Cartridge 5.5mV (White)
Music Hall MMF-5.3 Turntable with Ortofon 2M Blue MM Cartridge 5.5mV (White)

Share:

Music Hall MMF-5.3 Turntable with Ortofon 2M Blue MM Cartridge 5.5mV (White)

$1,048.99



Availability: In Stock
In Stock An In Stock item is available to ship normally within 24 business hours.
Preorder A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release "TBA." This means that release date is yet "To Be Announced". The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.
SKU:
MMF-53WH
UPC:
MMF-53WH
Convenient, easy assembly, plug and play operation!
The Music Hall MMF-5.3 comes with the Ortofon 2M Blue MM Cartridge professionally installed at the factory!


The music hall MMF-5.3 turntable is a 2-speed belt driven audiophile turntable employing the unique dual-plinth construction originated by music hall. The distinctive design isolates the critical sound reproducing components; platter, main bearing, tonearm, and cartridge on the top platform from the motor, switch, wiring, and feet which are mounted on the bottom platform. Viso-elastic cones separate the two platforms and provide vibration damping. The Music Hall MMF-5.3 Turntable comes complete with an Ortofon 2M Blue cartridge.

Features:
• Music Hall's unique dual-plinth construction
• Gorgeous high gloss white finish
• Top tier 9” carbon fiber tonearm with flexible internal wire drawn from high purity copper
• Counterweight's center of gravity is level with the stylus tip, is decoupled from the arm, and acts as a resonance damper
• DC synchronous motor for superior speed stability, separately isolated on the lower platform
• Two-speed stepped motor pulley for 33? and 45 rpm
• Ortofon 2M Blue cartridge with replaceable nude elliptical diamond stylus ($236 value)
• The cartridge supplied is properly aligned and mounted
• Precision stainless steel main bearing sheathed in Teflon for noise-free fluid operation
• Dynamically balanced alloy platter with soft felt mat
• Screw-on record clamp
• High quality gold RCA connectors and detachable phono cable
• Special vibration damping adjustable feet
• Built-in round spirit level for proper leveling
• Low noise fully manual belt-drive design
• Excellent instruction manual and easy assembly
• Dust cover and 45 rpm adaptor included

Music Hall MMF-5.3 Turntable Specifications:
Power Supply: 15V / 0-0.8mA DC universal power supply
Power Connection: 110/120 or 230/240 Volt, 50 or 60 Hz
Standby Power Consumption: Less Than 1 W
Speeds: 33 1/3 rpm (manual change to 45 rpm)
Wow and Flutter: +/- 0.10 %
Speed Deviation: +/- 0.80%
Rumble Max: Greater Than – 70 db
Effective Tonearm Length: 9 in. (230 mm)
Tonearm Weight: 250g (Without Conterweight)
Effective Arm Mass: 8.5 g
Overhang: 18 mm
Table Dimensions: W18.25 x D13.25 x H5.5 in.
Table Weight: 24lbs. pkg.

Includes: 1 year manufacturer warranty.

Ortofon 2M Blue MM Cartridge Specifications:
Output voltage at 1000 Hz: 5cm/sec: 5.5 mV
Channel balance at 1 kHz: 1.5 dB
Channel separation at 1 kHz: 25 dB
Channel separation at 15 kHz: 15 dB
Frequency range at -3dB: 20-25.000 Hz
Frequency response: 20-20.000 Hz +2/-1 dB
Tracking ability at 315Hz at recommended tracking force: 80um
Compliance, dynamic, lateral: 20um/mN
Stylus type: Nude Elliptical
Stylus tip radius: r/R 8/18 um
Tracking force range: 1.6-2.0g (16-20 mN)
Tracking force, recommended: 1.8g (18 mN)
Tracking angle: 20 degrees
Internal impedance, DC resistance: 1.3 kOhm Internal inductance: 700 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 150-300 pF Cartridge weight: 7.2 g
Description
Convenient, easy assembly, plug and play operation!
The Music Hall MMF-5.3 comes with the Ortofon 2M Blue MM Cartridge professionally installed at the factory!


The music hall MMF-5.3 turntable is a 2-speed belt driven audiophile turntable employing the unique dual-plinth construction originated by music hall. The distinctive design isolates the critical sound reproducing components; platter, main bearing, tonearm, and cartridge on the top platform from the motor, switch, wiring, and feet which are mounted on the bottom platform. Viso-elastic cones separate the two platforms and provide vibration damping. The Music Hall MMF-5.3 Turntable comes complete with an Ortofon 2M Blue cartridge.

Features:
• Music Hall's unique dual-plinth construction
• Gorgeous high gloss white finish
• Top tier 9” carbon fiber tonearm with flexible internal wire drawn from high purity copper
• Counterweight's center of gravity is level with the stylus tip, is decoupled from the arm, and acts as a resonance damper
• DC synchronous motor for superior speed stability, separately isolated on the lower platform
• Two-speed stepped motor pulley for 33? and 45 rpm
• Ortofon 2M Blue cartridge with replaceable nude elliptical diamond stylus ($236 value)
• The cartridge supplied is properly aligned and mounted
• Precision stainless steel main bearing sheathed in Teflon for noise-free fluid operation
• Dynamically balanced alloy platter with soft felt mat
• Screw-on record clamp
• High quality gold RCA connectors and detachable phono cable
• Special vibration damping adjustable feet
• Built-in round spirit level for proper leveling
• Low noise fully manual belt-drive design
• Excellent instruction manual and easy assembly
• Dust cover and 45 rpm adaptor included

Music Hall MMF-5.3 Turntable Specifications:
Power Supply: 15V / 0-0.8mA DC universal power supply
Power Connection: 110/120 or 230/240 Volt, 50 or 60 Hz
Standby Power Consumption: Less Than 1 W
Speeds: 33 1/3 rpm (manual change to 45 rpm)
Wow and Flutter: +/- 0.10 %
Speed Deviation: +/- 0.80%
Rumble Max: Greater Than – 70 db
Effective Tonearm Length: 9 in. (230 mm)
Tonearm Weight: 250g (Without Conterweight)
Effective Arm Mass: 8.5 g
Overhang: 18 mm
Table Dimensions: W18.25 x D13.25 x H5.5 in.
Table Weight: 24lbs. pkg.

Includes: 1 year manufacturer warranty.

Ortofon 2M Blue MM Cartridge Specifications:
Output voltage at 1000 Hz: 5cm/sec: 5.5 mV
Channel balance at 1 kHz: 1.5 dB
Channel separation at 1 kHz: 25 dB
Channel separation at 15 kHz: 15 dB
Frequency range at -3dB: 20-25.000 Hz
Frequency response: 20-20.000 Hz +2/-1 dB
Tracking ability at 315Hz at recommended tracking force: 80um
Compliance, dynamic, lateral: 20um/mN
Stylus type: Nude Elliptical
Stylus tip radius: r/R 8/18 um
Tracking force range: 1.6-2.0g (16-20 mN)
Tracking force, recommended: 1.8g (18 mN)
Tracking angle: 20 degrees
Internal impedance, DC resistance: 1.3 kOhm Internal inductance: 700 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 150-300 pF Cartridge weight: 7.2 g
