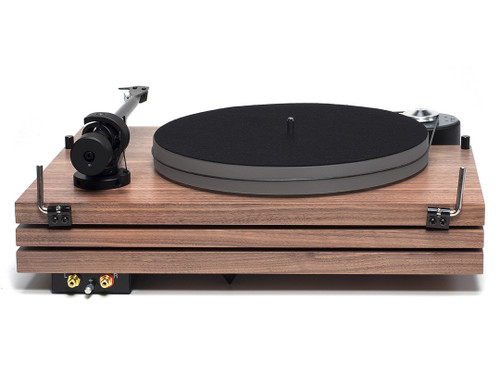

The Music Hall MMF-9.3 SE Turntable is an audiophile-grade, two-speed belt-driven turntable featuring a distinctive triple plinth construction that isolates the critical sound-reproducing components for the best possible performance. The turntable boasts a classic-looking walnut real wood veneer finish that exudes elegance and sophistication.
The MMF-9.3 SE comes equipped with a one-piece full carbon fiber tonearm with a counterweight that is decoupled from the arm and acts as a resonance damper. The completely isolated/decoupled DC motor has 33 1/3 and 45rpm speed controls located in the front left corner of the turntable to cancel out any potential vibration from the motor/belt to the cartridge.
The MMF-9.3 SE includes an inverted ceramic main bearing for super quiet, fluid operation, a non-resonant 1" thick acrylic platter, and high-quality gold RCA connectors and detachable phono cable. It also comes with adjustable tip toe feet with anti-scratch cups, a built-in round spirit level for proper leveling, and a dust cover and 45rpm adaptor. With excellent instruction manual and easy assembly, the MMF-9.3 SE is a true standout turntable.
Features
- Distinctive triple plinth construction for optimal performance
- Elegant walnut real wood veneer finish
- One-piece full carbon fiber tonearm with decoupled counterweight
- Completely isolated/decoupled DC motor with 33 and 45rpm speed controls
- Inverted ceramic main bearing for super quiet operation
- Non-resonant 1" thick acrylic platter
- High-quality gold RCA connectors and detachable phono cable
- Adjustable tip toe feet with anti-scratch cups
- Optional Ortofon Quintet Black MC Cartridge
- Built-in round spirit level for proper leveling
MMF-9.3 Turntable Technical Specifications
| Power Supply | 15V / 0-0.8mA DC Universal Power Supply |
|---|---|
| Power Connection | 100 – 240 Volt, 50 or 60 Hz |
| Standby Power Consumption | < 1 W |
| Speeds | 33 1/3 & 45 rpm Electronic Speed Change |
| Wow and Flutter | ± 0.10 % |
| Speed Deviation | ± 0.06% |
| Effective Tonearm Length | 9 in. (230 mm) |
| Tonearm Weight | 250 g (Without Counterweight) |
| Effective Tonearm Mass | 8.5 g |
| Overhang | 18 mm |
| Dimensions (WxDxH) | 18.25" x 13.25" x 7.25" |
| Weight | 40 lbs. Pkg. |
| Warranty | 1 year |
Ortofon Quintet Black Technical Specifications
| Output voltage at 1000 Hz, 5cm/sec. | 0.3 mV |
|---|---|
| Channel balance at 1 kHz | < 1.0 dB |
| Channel separation at 1 kHz | > 23 dB |
| Channel separation at 15 kHz | > 15 dB |
| Frequency response 20-20.000 Hz | +/- 1.5 dB |
| Tracking ability at 315Hz at recommended tracking force | 80 µm |
| Compliance, dynamic, lateral | 15 µm/mN |
| Stylus type | Nude Shibata on Sapphire cantilever |
| Stylus tip radius | r/R 6/50 µm |
| Tracking force range | 2.1-2.5 g (21-25 mN) |
| Tracking force, recommended | 2.3 g (23 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 5 Ohm |
| Recommended load impedance | > 20 Ohm |
| Cartridge body material | ABS/Aluminium |
| Coil wire material | Aucurum |
| Cartridge colour | Black |
| Cartridge weight | 9 g |
