Sorbothane hemispheres separate each of the three platforms and provide additional suspension and vibration damping. The mmf-9.3 comes in a high-gloss piano black lacquer finish and is available with or without cartridge
The distinctive design isolates the critical sound reproducing components: platter, main bearing, tonearm, and cartridge, on the top platform, from the adjustable tip-toe feet and wiring, which are mounted on the bottom platform. The motor and speed controls are isolated on their own vibration damping base and completely decoupled from the turntable.
Music halls unique triple plinth construction.

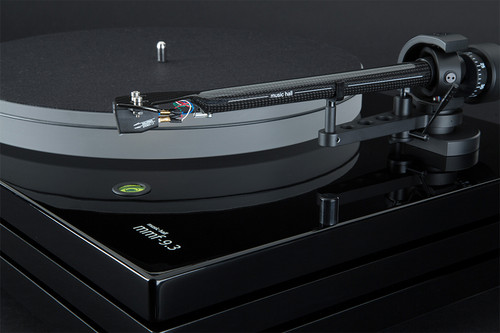

One-piece full carbon fiber tonearm.
Counterweights center of gravity is level with the stylus tip, is decoupled from the arm, and acts as a resonance damper.
Completely isolated/decoupled DC motor with 33? and 45 rpm speed controls located in the front left corner of the Turntable, thus canceling any potential vibration from the motor/belt to the cartridge.
Motor sits on its own resonance damping puck.
Inverted ceramic main bearing for super quiet, fluid operation
Non resonant, 1 thick acrylic platter
Soft felt platter mat
High quality gold RCA connectors and detachable phono cable
Adjustable tip toe feet with anti scratch cups
Low noise fully manual belt drive design
Built-in round spirit level for proper leveling
Dust cover and 45 rpm adaptor included
Excellent instruction manual and easy assembly
MMF-9.3 Turntable Specifications:
Power Supply: 15V / 0-0.8mA DC Universal Power Supply
Power Connection: 100 240 Volt, 50 or 60 Hz
Standby Power Consumption: < 1 W
Speeds: 33 1/3 & 45rpm electronic speed change
Wow and Flutter: +/- 0.10 %
Speed Deviation: +/- 0.06%
Rumble Max: > 73 db
Effective Tonearm Length: 9 in. (230 mm)
Tonearm Weight: 250 g (without counterweight)
Effective Tonearm Mass: 8.5 g
Overhang: 18 mm
Dimensions: w18.25 x d13.25 x h7.25 in.
Weight: 40 lbs. pkg.
