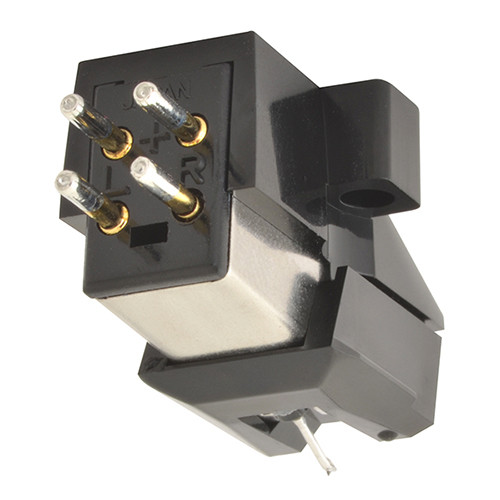

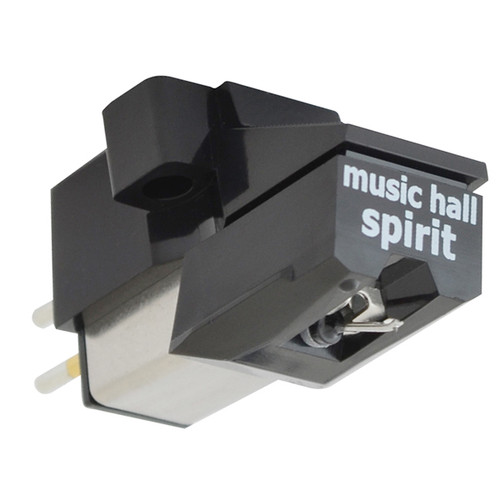

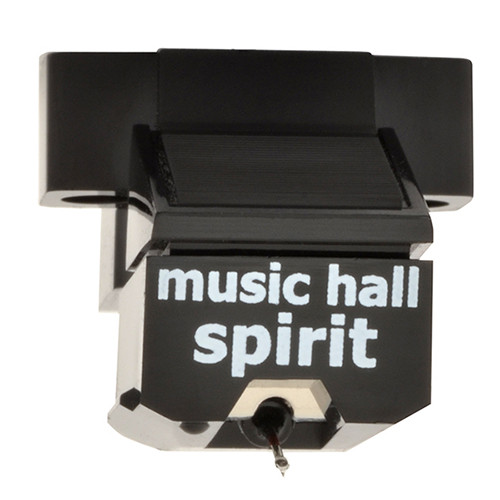

The Music Hall Spirit is a Supremely Musical, Moving Magnet Phono Cartridge!
Developed and built specially for Music Hall by Audio Technica, this little gem incorporates a low-mass cantilever and an elliptical stylus tip that gets down deep into the grooves (pun intended) and sets the music free. The Spirit is as easy to use as it is compatible, performing admirably with a wide range of tonearms and turntables. Built for longevity, it features a user-replaceable stylus.
Specifications:
Frequency Response: 20Hz – 20kHz ± 3dB
Channel Balance: 2.5dB @ 1kHz
Channel Separation: >20dB @ 1kHz
Output: 3.5mV ± 2dB, 1kHz @ 5cm/sec
Vertical Tracking Angle: 20 degrees
Stylus Shape: Elliptical 0.4 x 0.7 mil
Stylus Type: Replaceable
Cantilever: Alloy tube
Load Impedance: 47,000 Ohm
Stylus Construction: Bonded round shank
Cartridge Weight: 5.7g
Fixing Center: 0.5" (12.7mm)
Playing Weight: 1.5 – 2.5g (2.0g nom.)
