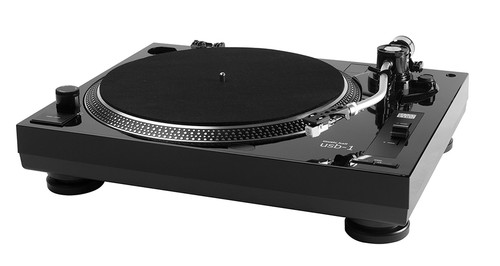

Music Hall's 'Plug-n-Play' USB-1 Turntable is the simple solution to converting your Vinyl to MP3 files!
The Music Hall USB-1 comes with the AT3600L MM Cartridge professionally installed at the factory!
This item not eligible for any further discount offers!
Switchable from 120volt 60Hz to 220volt 50Hz Operation
The Music Hall USB-1 Turntable with Audio Technica AT3600L MM Cartridge is a convenient, easy to use, and fun turntable. ItÂ’s a snap to set-up and comes with everything you need to start spinning vinyl. Whether youÂ’re looking to digitize and download your record collection, release your inner DJ, or simply discover the joy of spinning vinyl, the USB-1 is your answer. It has a built-in phono preamp, cartridge, dust cover, and includes all necessary cables and software required for simple plug and play operation.
"Ladies love the Music Hall USB-1 turntable. The real fun, however, came when I finally partnered the USB-1 turntable with the A5 speakers. This was a heavenly match, with deep, taut bass; eerily quiet backgrounds; an open, unrestricted soundstage; fine stereo imaging; a good sense of drama and scale; satisfying resolution; engaging musical flow; and addictive immediacy and transparency." - Stephen Mejias, Stereophile Magazine, May 2011
Features:
• Extremely quiet belt drive, 2-speed turntable
• Aluminum die-cast platter
• 33 1/3, 45 rpm playback speeds
• High gloss black finish
• Encode mp3s and transfer them to your iPod using iTunes
• USB output for converting vinyl to PC or MAC
• USB cable supplied
• Free Audacity software included
• Analog output via built-in Phono Amp or direct line out
• Static balanced S-shaped tonearm w/detachable headshell
• Audio Technica AT3600L moving-magnet cartridge supplied
• Anti-skating control for increased stereo balance
• +/- 10% adjustable pitch control
• Turntable Slipmat, USB Cable, RCA Cable, 45rpm Adaptor & Dust Cover all included!
• Designed and developed in the US and France
Specifications:
Model: USB-1, Professional Belt Drive USB Turntable
Power Supply: Dual Voltage: AC 115V-60Hz/230V-50Hz, User Selectable
Power Consumption: 8W
Standard Test Condition: Ambient Temperature: 23+/- 2 Degrees C
Relative Humidity: 65% +/- 5%
Turntable Section:
Type: 2-Speed Full Manual
Motor DC Motor
Briving Method: Belt Drive
Turntable Platter: 330mm dia. aluminum
Speeds: 33 1/3 and 45rpm
Wow and Flutter: Less than 0.25% WRMS (JIS WTD) with 33 1/3 rpm
S/N Ratio: More Than 50dB (DIN-B)
Pitch Controls: +/- 10%
Starting Time: Less than 1 sec. with 33 1/3rpm
Starting Time: Less than 1 sec with 33 1/3rpm
Braking Time: Less than 1 sec. with 33 1/3rpm
Time for Speed Change: Less than 1 sec. from 33 1/3 to 45 rpm
Less than 1 sec. from 45 to 331/3 rpm
Speed tolerance at pitch=0: Within +/-1.3%
USB Function: USB rec. Function, A/D, D/A, 16BIT 44.1KHz or 48KHz USB SELECTABLE, Computer interface USB 1.1 compliant, WINDOWS XP or MAC OSX
Tonearm Section:
Type: Static balanced S-shaped tonearm with detachable headshell
Effective Arm Length: 220 mm
Tracking Error Angle: Less than 3 degree
Applicable Cartridge Weight: 6~10g
Anti-skating Range: 0-4g
Phono Output Level: 1.5~3.6 mV at 1KHz 5cm/sec (HP-4005)
Line Output Level: 90~216mV at 1KHz 5cm/sec (HP-4005)
Frequency Response: 20Hz-20KHz
Channel Separation: More than 15dB
Channel Balance: Within 2.5dB at 1KHz
Needle Pressure: range 3~4g
High of cue(first track): 6~10.5mm
Descend of cue: 1~3sec
EQ AMP:
Output: 150mV +/-4dB (IN: 2.5 mV 1KHz)
RIAA: 20Hz~20KHz +1/-3dB (IN: 1.5 mV 1KHz)
Dimensions: 17.7" W x 13.8" D x 5.7" H
Weight: 10 lbs.
Includes: 1 year manufacturer warranty.
Audio Technica AT3600L MM Cartridge Specifications:
Output: 4.2mV at 5cm/sec
Channel Balance: 1.5dB
Tracking Force: 1.5-3.0 grams
Cantilever: Alloy Tube
Stylus: 0.6 mil conical diamond tip
Click Here for Music Hall USB-1 Turntable Manual
