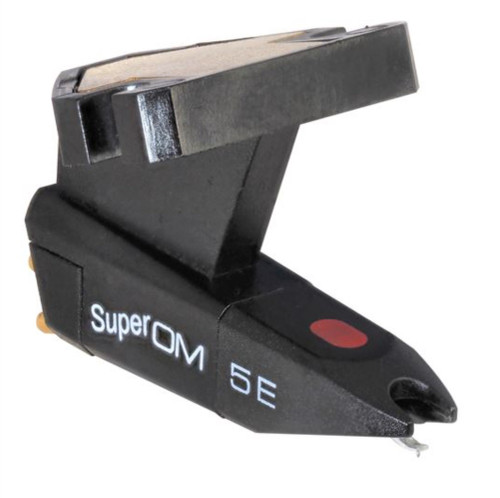

Ortofon Super OM 5E MM Cartridge 4.0mV

In Stock	An In Stock item is available to ship normally within 24 business hours.
Preorder	A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release 'TBA.' This means that release date is yet 'To Be Announced'. The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered	An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress	Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On	When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order	A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.

In Stock

An In Stock item is available to ship normally within 24 business hours.

Preorder

A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release 'TBA.' This means that release date is yet 'To Be Announced'. The Preorder can be released anywhere between weeks, months or years from its initial announcement.

Backordered

An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.

Awaiting Repress

Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.

Expected On

When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.

Special Order

A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.

Description

The OM 5E and Super OM 5E feature an elliptical diamond.

In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. Instead of being merely intended for replacement purposes following wear or damage, the OM 5 Series allows you to step up to better sound by simply upgrading the stylus.

Depending on your preference, styli for the OM 5 Series are easily interchanged and include: styli 3E, 5E, 10, 20, 30, 40 & 78 and D 25 M.

The Super OM 5E major improvements:

By means of computer simulations it has been possible to define the natural pivot point of the system with unprecedented accuracy while achieving an optimum oscillation balance. The result: improved linearity, higher channel separation and reduced distortion.
OM Super cartridges models have split pole PINs which reduces magnetic losses at the treble end. This technology extends the frequency range and improves phase linearity.
OM Super 5 cartridge body is manufactured from a Noryl (plastic & glass compound) which ensures high rigidity and freedom from resonances.

Optimal fit and sound reproduction

If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OM's. A glance at anyone of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.

If your tonearm is an standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5g.

Super OM 5E features Elliptical stylus that provides balanced and distortion-free playback. Elliptical diamonds are able to follow the groove oscillations more accurately than spherical diamonds due to their contoured shape. This results in better tracking and less distortion.

Technical Specifications

Output Voltage	1000 Hz, 5cm/sec. - 4 mV
Channel Balance	1 kHz - 1.5 dB
Channel Separation	1 kHz - 22 dB
Channel Separation	15 kHz - 15 dB
Frequency Response	20-20.000 Hz + 3 / -3
Tracking Ability	315Hz at recommended tracking force - 60 µm
Compliance, Dynamic, Lateral	20 µm/mN
Stylus Type	Elliptical
Stylus Tip Radius	r/R 8/18 µm
Tracking Force Range	1.5-2.0 g (15-20 mN)
Tracking Force, Recommended	1.75 g (17.5 mN)
Tracking Angle	20°
Internal Impedance, DC Resistance	1 kOhm
Internal Inductance	580 mH
Recommended Load Resistance	47 kOhm
Recommended Load Capacitance	200-500 pF
Cartridge Color, Body/Stylus	Black/Black
Cartridge Weight incl. Extra Weight	5 g
Cartridge Weight excl. Extra Weight	2.5 g
Replacement Stylus Unit	Stylus 5 E, Stylus 10
