Educe the Passion of the Artists Engraved in Your Records

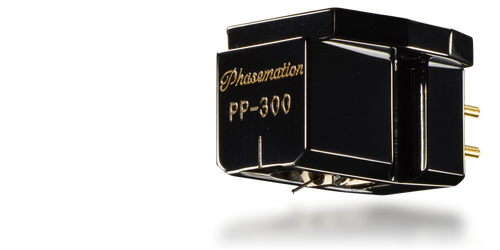

Phasemation's PP-300, who's release coincides with the 10th anniversary of the Phasemation brand, is their entry-level model. It features fresh midrange-treble and resonant bass part, while inheriting a 'space expression ability' from Phasemation's research in developing their PP-1000 flagship MC cartridge.
Feed-back of PP-1000 Magnetic Circuit Technology
To the magnetic circuit structure the technology of PP-1000, the flagship model, is applied; and by refining materials and manufacturing and finishing cost advantage has been enhanced. Furthermore, by changing to samarium-cobalt magnet, the recreation of excellent feeling of sound field and freshness has been successfully realized, which has been difficult for Phasemation's conventional P-3.
Inheriting the Body for High Quality Audio Sound
Phasemation inherited duralumin previously-well-acknowledged against P-3 as the materials of base and body. Furthermore, DLC (Diamond Like Carbon) *1) coating is conducted; thereby, the structure excellent at rigidity and vibration-damping characteristics is realized.
*1) DLC (Diamond Like Carbon) is a generic name of carbon film to be produced with vapor phase synthesis utilizing ion processing; and the high rigidity and high electric insulation similar to a diamond are provided for it.
Inheriting the Materials for High Quality Audio Sound
Phasemation inherited the following materials for high quality audio sound well-established in PP-1000 and others: Cantilever made of pure boron material well-acknowledged previously, magneto coil made of 6N oxygen-free copper wire, pure iron coil bobbin and others.
Technical Specifications
| Magneto method | Moving coil method |
|---|---|
| Impedance | 4 ohm |
| Appropriate stylus pressure | 2.0 g |
| Output voltage | 0.28 mV (1 kHz, 50 mm/s, Horizontal direction) |
| Compliance | 8.0x10(e-6) cm/dyne |
| Playable frequency range | 10Hz to 30kHz |
| Separation | 30 dB or more (1 kHz) |
| Channel balance | 1 dB or less (1 kHz) |
| Mass of body | 11.1 g |
| Stylus chip | Diamond(Line contact; Curvature: 0.03 x 0.003 mm) |
