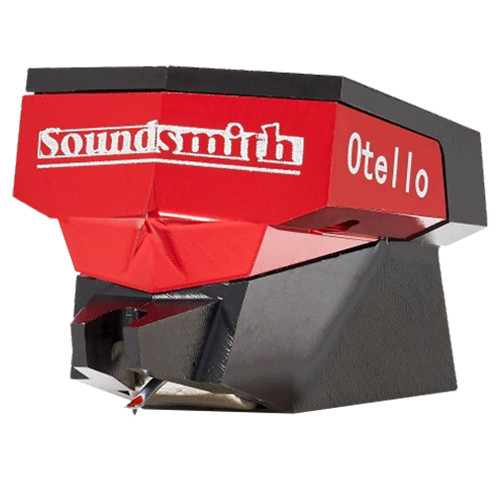

Soundsmith Otello ES MI Cartridge 2.12mV (Medium Compliance)
Soundsmith Otello ES MI Cartridge 2.12mV (Medium Compliance)

Share:

Soundsmith Otello ES MI Cartridge 2.12mV (Medium Compliance)

$399.95



Availability: In Stock
In Stock An In Stock item is available to ship normally within 24 business hours.
Preorder A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release "TBA." This means that release date is yet "To Be Announced". The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.
SKU:
SSMIOTELESM
UPC:
SSMIOTELESM

Made in the USA.

Rebuild done by Soundsmith directly!
$100 ~ Only 20% of MSRP, as always!
Click here to fill out Soundsmith's Cartridge Rebuild Form

The Otello features a 2 year warranty to the original owner.

Soundsmith's entry level design captures more than its share of recorded beauty --by design. Big soundstage, detail and resolution at an affordable price.

The Otello is Soundsmith's entry level Fixed Coil design, realizing an affordable pathway into the world of high-performance cartridges. Built by hand like all Soundsmith cartridges, the Otello provides a perfect balance of tone and resolution at a great price. The result is a cartridge that is at ease with any type of music. Just slightly warmer than other Soundsmith designs, Otello yields a richness of timbre that is utterly beguiling with a level of speed and dynamic range that no other cartridge in this price. The result? A wonderful design that gives the warmth of MM and the light-footedness of Moving Iron design.

Also available in dual-coil mono.

New ES Series DEMS Design

2018's RMAF show was the official launch of Soundsmith's new ES series of cartridges, where the attendees experienced the latest exploration into overlooked areas of cartridge design and solutions from Soundsmith.

The ES line features not only a dramatic new look, but is a significant evolution of the DEMS system design (Dynamic Energy Management System). The new Soundsmith ES cartridge designs are a significant advancement in cartridge performance due to their ability to direct internal vibrational forces without reflection and disperse them properly to the tone arm. The absence of reflections enables the stylus to stay in far greater statistical contact with the groove walls -- a critically important technical refinement. Increased liquidity and reduced "grain," without loss of detail are some of the immediately discernible advantages of Soundsmith's new ES models.

The new line also features Azimuth adjustment built-in to each cartridge, as well as the option for electrical isolation for hum-prone systems.

Every cartridge in Soundsmith's lineup will now feature their sleek new ES body design. The upgrade is far more than cosmetic; the new shape is a departure from the reflective and "boxy" design of many cartridges whose internal construction contribute to uncontrolled vibrational issues adversely affecting performance. Peter says, "Think of how singing in an open field compares with singing in a shower." Soundsmith has always challenged conventions, looking deeper into nuances of cartridge design that dramatically affect immediate and long term performance. These have included extreme reductions of moving mass and the use of novel materials and designs. The new ES lineup is a continuation of that research and development.

Technical Specifications

Type Fixed Coil / Moving Iron
Mount Standard ½"
Stylus Elliptical Titanium Bonded, 0.20 mm round
Radius of Curvature 6 x 17 µm
Cantilever Aluminum Alloy
Recommended Tracking Force 1.3 - 1.6 g Standard (Medium Compliance)
1.0 - 1.2 g (Special Order High Compliance)
Effective Tip Mass 0.50 mg
Compliance 22 µm/mN (Medium Compliance)
28 µm/mN (High Compliance)
Frequence Response 20 - 20,000 Hz ± 2.5 dB
Channel Separation @ 1000 Hz > 24 dB
N/A (Mono version)
Channel Separation @ 50 - 15,000 Hz > 20 dB
N/A (Mono version)
Channel Difference < 1.8 dB
< 1.0 dB (Mono version)
Output Voltage @ 5cm/sec > 2.12 mV (HIGH)
DC Resistance (DCR) 680Ω
Coil Inductance per channel 190 mH
Suggested Preamp Gain 38 - 44 dB
Cartridge Weight 9.20 g (ES series)
Recommended Load Resistance ≥ 47kΩ
Recommended Load Capacitance n/a
Description

Made in the USA.

Rebuild done by Soundsmith directly!
$100 ~ Only 20% of MSRP, as always!
Click here to fill out Soundsmith's Cartridge Rebuild Form

The Otello features a 2 year warranty to the original owner.

Soundsmith's entry level design captures more than its share of recorded beauty --by design. Big soundstage, detail and resolution at an affordable price.

The Otello is Soundsmith's entry level Fixed Coil design, realizing an affordable pathway into the world of high-performance cartridges. Built by hand like all Soundsmith cartridges, the Otello provides a perfect balance of tone and resolution at a great price. The result is a cartridge that is at ease with any type of music. Just slightly warmer than other Soundsmith designs, Otello yields a richness of timbre that is utterly beguiling with a level of speed and dynamic range that no other cartridge in this price. The result? A wonderful design that gives the warmth of MM and the light-footedness of Moving Iron design.

Also available in dual-coil mono.

New ES Series DEMS Design

2018's RMAF show was the official launch of Soundsmith's new ES series of cartridges, where the attendees experienced the latest exploration into overlooked areas of cartridge design and solutions from Soundsmith.

The ES line features not only a dramatic new look, but is a significant evolution of the DEMS system design (Dynamic Energy Management System). The new Soundsmith ES cartridge designs are a significant advancement in cartridge performance due to their ability to direct internal vibrational forces without reflection and disperse them properly to the tone arm. The absence of reflections enables the stylus to stay in far greater statistical contact with the groove walls -- a critically important technical refinement. Increased liquidity and reduced "grain," without loss of detail are some of the immediately discernible advantages of Soundsmith's new ES models.

The new line also features Azimuth adjustment built-in to each cartridge, as well as the option for electrical isolation for hum-prone systems.

Every cartridge in Soundsmith's lineup will now feature their sleek new ES body design. The upgrade is far more than cosmetic; the new shape is a departure from the reflective and "boxy" design of many cartridges whose internal construction contribute to uncontrolled vibrational issues adversely affecting performance. Peter says, "Think of how singing in an open field compares with singing in a shower." Soundsmith has always challenged conventions, looking deeper into nuances of cartridge design that dramatically affect immediate and long term performance. These have included extreme reductions of moving mass and the use of novel materials and designs. The new ES lineup is a continuation of that research and development.

Technical Specifications

Type Fixed Coil / Moving Iron
Mount Standard ½"
Stylus Elliptical Titanium Bonded, 0.20 mm round
Radius of Curvature 6 x 17 µm
Cantilever Aluminum Alloy
Recommended Tracking Force 1.3 - 1.6 g Standard (Medium Compliance)
1.0 - 1.2 g (Special Order High Compliance)
Effective Tip Mass 0.50 mg
Compliance 22 µm/mN (Medium Compliance)
28 µm/mN (High Compliance)
Frequence Response 20 - 20,000 Hz ± 2.5 dB
Channel Separation @ 1000 Hz > 24 dB
N/A (Mono version)
Channel Separation @ 50 - 15,000 Hz > 20 dB
N/A (Mono version)
Channel Difference < 1.8 dB
< 1.0 dB (Mono version)
Output Voltage @ 5cm/sec > 2.12 mV (HIGH)
DC Resistance (DCR) 680Ω
Coil Inductance per channel 190 mH
Suggested Preamp Gain 38 - 44 dB
Cartridge Weight 9.20 g (ES series)
Recommended Load Resistance ≥ 47kΩ
Recommended Load Capacitance n/a
