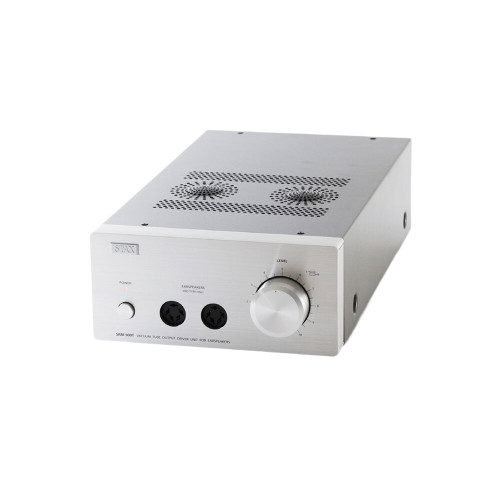

Stax SRM-500T Headphone Amp (Silver)
Stax SRM-500T Headphone Amp (Silver) Stax SRM-500T Headphone Amp (Silver) Stax SRM-500T Headphone Amp (Silver) Stax SRM-500T Headphone Amp (Silver)
: Stax

Share:

Stax SRM-500T Headphone Amp (Silver)

$1,379.99



Availability: In Stock
In Stock An In Stock item is available to ship normally within 24 business hours.
Preorder A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release "TBA." This means that release date is yet "To Be Announced". The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.
SKU:
STXSRM500T

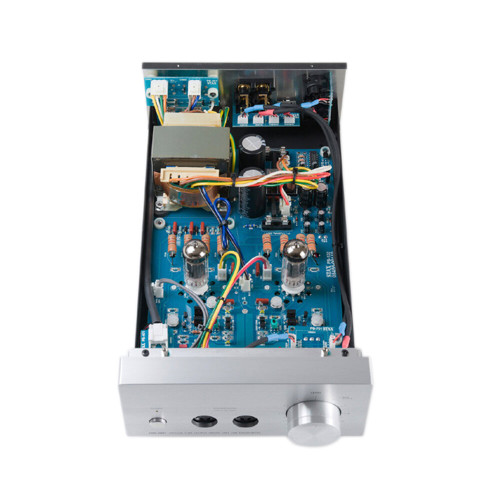

Stax introduces a new model SRM-500T to replace its successor of SRM-006tS. The SRM-500T utilizes a pair of 6FQ7/6CG7 vacuum tubes as the output, driven by custom-made low noise dual FET. Stax pride itself in offering a great value electrostatic driver at the best possible performance.

The newly designed power transformer enables power efficiency. As a result, it achieves an improved sound quality than the conventional vacuum tube output driver unit found in SRM-006tS.

Technical Specifications

Type FET input + vacuum tube output hybrid DC amplification driver unit
Vacuum tube 6FQ7/6CG7
Frequency response DC - 90kHz (with one SR-L500 MK2)
Gain 60dB
Harmonic distortion 0.01% or less (1kHz/100Vrms output)
Input impedance 50kΩ (RCA), 50kΩx 2 (XLR)
Maximum output voltage 300Vrms (1kHz)
Bias voltage DC 580V
Operating temperature / humidity 0 to 35 degrees C / less than 90% (non condensing)

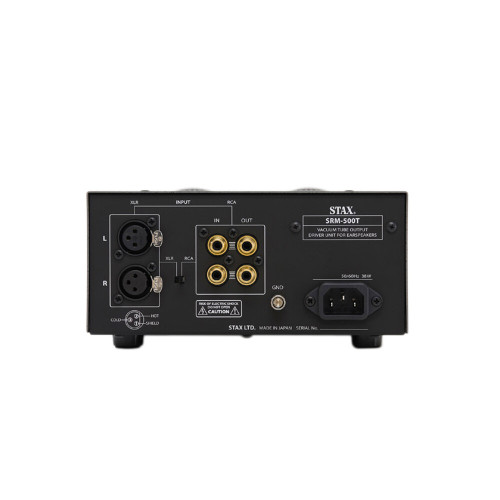

Input terminal RCA x 1, XLR x 1(mutual exclusion input)
Output RCA parallel output
Power consumption 38W
Dimension 195 (W) x 102 (H) x 376 (D) mm (maximum protruding portion included)
Weight 3.4kg
Description

Stax introduces a new model SRM-500T to replace its successor of SRM-006tS. The SRM-500T utilizes a pair of 6FQ7/6CG7 vacuum tubes as the output, driven by custom-made low noise dual FET. Stax pride itself in offering a great value electrostatic driver at the best possible performance.

The newly designed power transformer enables power efficiency. As a result, it achieves an improved sound quality than the conventional vacuum tube output driver unit found in SRM-006tS.

Technical Specifications

Type FET input + vacuum tube output hybrid DC amplification driver unit
Vacuum tube 6FQ7/6CG7
Frequency response DC - 90kHz (with one SR-L500 MK2)
Gain 60dB
Harmonic distortion 0.01% or less (1kHz/100Vrms output)
Input impedance 50kΩ (RCA), 50kΩx 2 (XLR)
Maximum output voltage 300Vrms (1kHz)
Bias voltage DC 580V
Operating temperature / humidity 0 to 35 degrees C / less than 90% (non condensing)
Input terminal RCA x 1, XLR x 1(mutual exclusion input)
Output RCA parallel output
Power consumption 38W
Dimension 195 (W) x 102 (H) x 376 (D) mm (maximum protruding portion included)
Weight 3.4kg
