Description

The production time for a DDT II Special cartridge after ordering is about two weeks.

True Transmission Technology * Hybrid Design * Halogen-Free

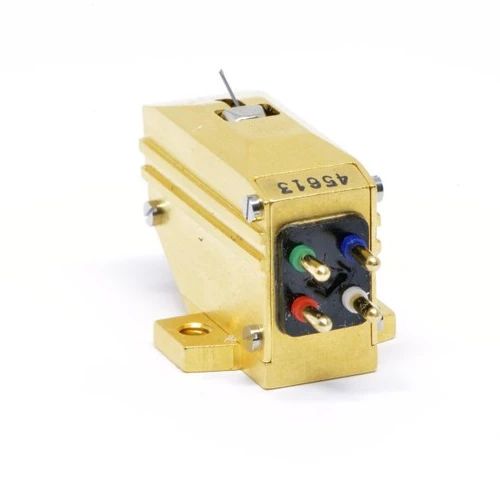

THE DDT-II SPECIAL is a custom hand-built moving coil cartridge with VDH-type 1 tip, boron cantilever, matched crystal silver-wire coils and 0.65 mV/channel.

"Special" Designation

The designation "Special" in this cartridge's name indicates important improvements over its previous version:

The cartridge is equipped with a thicker frontpole and an extra small magnet, both further enhancing its resolution capabilities and output voltage.
The cartridge's name DDT stands for Depth, Detail and Timbre.

Technical Specifications

Stylus Shape	VDH - I
Stylus Radius	3 x 85 Micron
Frequency Range	5 - 50.000 Hz
Tracking Force	13.5 - 15.0 mN
Static Compliance	28 Micron/mN
Tracking Ability	70 - 80 Micron
Output Voltage	0.65 mV RMS
Channel Unbalance	< 0.75 dB
Channel Separation	> 35 / > 30 dB
Stylus Tip Mass	0.35 Milligram
System Weight	8.2 Gram
Vertical Tracking Angle	22 Degrees
Load Impedance	200 Ohm
Moving Coil Resistance	9 Ohm +/- 10%
