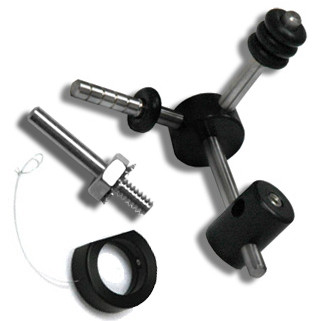

VPI Anti-Skate Device for JMW-10 Tonearms
VPI Anti-Skate Device for JMW-10 Tonearms
: VPI

Share:

VPI Anti-Skate Device for JMW-10 Tonearms

$149.99



Availability: In Stock
In Stock An In Stock item is available to ship normally within 24 business hours.
Preorder A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release "TBA." This means that release date is yet "To Be Announced". The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of.
Awaiting Repress Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description.
Special Order A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.
SKU:
VPI-D1014
UPC:
VPI-D1014
Anti-Skate Upgrade for the JMW-10 tonearms!

Anti-Skate is one of the least understood forces acting on a tonearm. Skating force is created by friction between the stylus and the record, causing a force vector in a direction towards the center of the record when the headshell of the tonearm has an offset angle. Putting the stylus down on a flat, groove less record will cause the arm to move toward the center of the record.

Arm manufacturers have tried to compensate for this force, but that is impossible because the force is constantly changing as the music and velocity change.

VPI has conducted careful listening tests and determined that every tonearm they tried sounded better with its mechanical anti-skating disabled and the tracking force very slightly increased... VPI has a unique solution to anti-skating: the coiled wire of the JMW Memorial Tonearm acts as a spring and pushes the arm back without affecting the sound quality. The VPI JMW-10.5i Tonearm Anti-Skate Upgrade now gives you the option of a mechanical anti-skate device!

If you have older VPI turntable/tonearm combo that has "silver" junction box, a new "black" junction box would need to be purchased to use the anti-skate upgrade.

Directions on how to install:
• The anti-skate mounts on the black junction box by removing the left front side screw using a #2 Phillips screwdriver and screwing the anti-skate mechanism into the now vacant hole. Tighten the nut once you have the shaft screwed all the way in.

• Remove the counterweight and install the black D shaped piece on the counterweight stub as per photo. (Below)



• Loop the line around the post with the multiple grooves and adjust the height of the anti-skate. When you are done the line should be level when the arm is resting in the armrest.

• You can adjust the anti-skate by either moving the circular rubber rings away from the pivot (more force) or closer to the pivot (less force).

• You no longer have to twist the lead out wire from the arm to the junction box to set anti-skate, just plug it in directly with no twist.
Description
Anti-Skate Upgrade for the JMW-10 tonearms!

Anti-Skate is one of the least understood forces acting on a tonearm. Skating force is created by friction between the stylus and the record, causing a force vector in a direction towards the center of the record when the headshell of the tonearm has an offset angle. Putting the stylus down on a flat, groove less record will cause the arm to move toward the center of the record.

Arm manufacturers have tried to compensate for this force, but that is impossible because the force is constantly changing as the music and velocity change.

VPI has conducted careful listening tests and determined that every tonearm they tried sounded better with its mechanical anti-skating disabled and the tracking force very slightly increased... VPI has a unique solution to anti-skating: the coiled wire of the JMW Memorial Tonearm acts as a spring and pushes the arm back without affecting the sound quality. The VPI JMW-10.5i Tonearm Anti-Skate Upgrade now gives you the option of a mechanical anti-skate device!

If you have older VPI turntable/tonearm combo that has "silver" junction box, a new "black" junction box would need to be purchased to use the anti-skate upgrade.

Directions on how to install:
• The anti-skate mounts on the black junction box by removing the left front side screw using a #2 Phillips screwdriver and screwing the anti-skate mechanism into the now vacant hole. Tighten the nut once you have the shaft screwed all the way in.

• Remove the counterweight and install the black D shaped piece on the counterweight stub as per photo. (Below)



• Loop the line around the post with the multiple grooves and adjust the height of the anti-skate. When you are done the line should be level when the arm is resting in the armrest.

• You can adjust the anti-skate by either moving the circular rubber rings away from the pivot (more force) or closer to the pivot (less force).

• You no longer have to twist the lead out wire from the arm to the junction box to set anti-skate, just plug it in directly with no twist.
