This product can only be shipped to U.S. addresses.

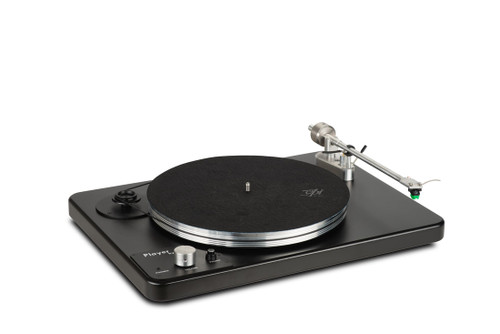

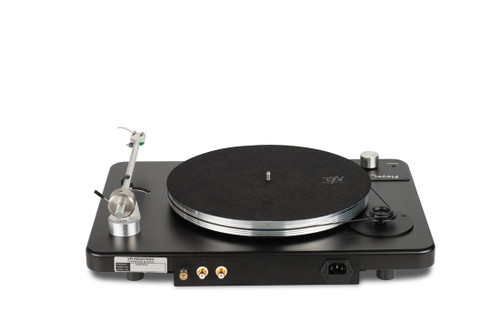

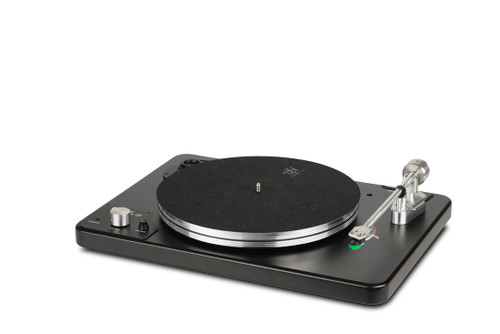

The VPI Player is an all in one high-end entry level turntable!
Specifications:
The Table:
• 1.25" thick textured vinyl covered non-resonant MDF chassis.
• 16" x 11" footprint
• 19" x 14" x 6" overall size
• Aluminum Platter
• Platter rotates on an oil bath bearing and fitted to shaft with a #2 Jacob’s Taper for a concentric rigidly mounted coupling.
• The bearing has a PEEK thrust disc and machined graphite impregnated brass bushings using a Thompson Engineering 60 Rockwell case hardened shaft.
The Tonearm:
• 9” vertical Yoke type tonearm with lateral turntable type bearing.
• Pivot to spindle: 223mm
• Effective length: 240.7mm
• Overhang: 17.7mm
• Offset angle: 22.85 degrees
• Average RMS distortion: .36%
• VTA adjustable arm mount.
• Damped stainless steel armtube.
• Very pure copper wire, twisted with special insulating jacket.
• The armbase is upgradeable to a standard JMW 9 arm.
Additional Specs:
Type: Belt drive (manual turntable)
Motor: 24v synchronous AC motor
Turntable Platter: Aluminum
Diameter: 11.81" (30.0 cm)
Turntable Speeds: 33 1/33 RPM and 45 RPM
Wow and Flutter: 0.06% WOW (in accordance with DIN specification), 0.04% Flutter in accordance with DIN specification)
Rumble: < - 80dB (IEC 98A unweighted)
Cartridge: Ortofon 2M Red
Output: 5 mV @ 1 KHz
Tracking Force: 1.5 grams (recommended)
Input Load: 47K
Weight: 5.5 grams
Power Supply: 110v VAC @ 60 Hz, 230v VAC @ 50hz
Power Consumption: 7.7 watts at full output
Dimensions: 18.5" (470 mm) W x 13.5" (343 mm) D x 4.3" (109 mm) H
Weight: 12.9 lbs. (5.9 kg)
Available Upgrade:
Analog Drive System (ADS) for the utmost accuracy in motor speed and fine speed adjustments.
Click Here to view or download the VPI Player Turntable Manual!
