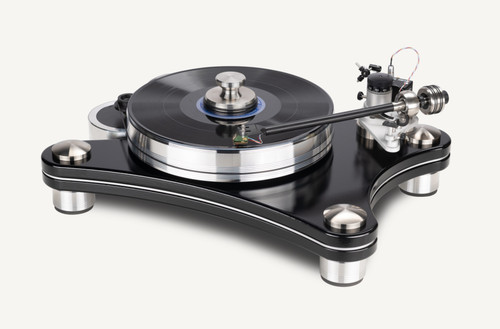

The Signature DS takes the greatest aspects of the Prime Signature turntable and upgrades and refines them with finer details from the customers, reviewers and more. Available in black and rosewood.
The Signature DS includes the following:
- 10" 3D Gimbal Tonearm
- VTA Tower for VTA/SRA on the fly
- 12" Aluminum, 20lbs
- Outboard 300 RPM, 24 pole, AC Synchronous Motor
- HW-40 Isolation feet, which offer improved isolation and better mechanical grounding
Technical Specifications
| Motor pulley | has an accuracy of +/- .0005" when leaving factory. |
|---|---|
| Wow and flutter | .05% |
| Speed Accuracy | .05% |
| Rumble | 85 dB down |
| Footprint | 19 1/2" x 13 3/4" |
| Overall Size | 21 3/8" x 15 3/4" |
| Total weight | 44 lbs |
The Tonearm
- Pivot to spindle: 258 mm
- Effective length: 273.4 mm
- Effective mass: 10.2g
- Overhang: 15.4 mm
- Offset angle: 19.98 degrees
- Average RMS distortion: 0.31%
- Internal wiring: VPI Copper Weave
- New design 3D-printed, one-piece body for the ultimate in resonance control.
- Easy setting of VTA/SRA in thousandths of an inch, calibrated and repeatable
- Adjustable anti-skate.
Available Upgrades:
- Stainless Steel Outer Periphery Ring Clamp for the ultimate in record warp reduction
- Fatboy Tonearm (Gimbaled or Unipivot)
- Analog Drive System (ADS) for the utmost accuracy in motor speed and fine speed adjustments.
- Reference feet - Improves isolation and makes it even more quiet between the notes.
