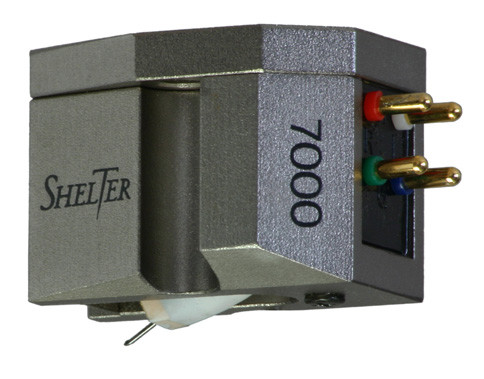

Shelter proudly introduces the new model 7000 cartridge. The Model 7000 replaces the highly regarded and Stereophile Class B Recommended Shelter 901. The Shelter 7000's new cartridge design technology allows it to reach new levels of dynamics and quietness for a smooth and effortless sonic presentation.
The Shelter 7000 is a complete departure from the current line of Shelter cartridges. Newly designed body, high rigidity, improved front-yoke, larger diameter PC-OCC lead wires wound around the redesigned bobbin.
|Output voltage||0.5 mV|
|Channel balance||Greater Than 0.8dB @1kH|
|Stylus tip||0.3 x 0.7 mil elliptical nude diamond|
|DC resistance||9 ohms|
|Tracking force||1.4 to 2.0 grams|
|Load impedance||w/step up transformer 10 to 30 ohms, w/head amplifier within 100 ohms, high gain EQ - amplifier within 47 ohms|
|Channel Separation at 1 kHz||>25dB|
