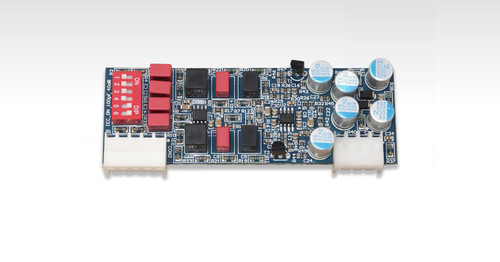

Creek Sequel Mk3 Phono Board
Creek Sequel Mk3 Phono Board
: Creek

Share:

Creek Sequel Mk3 Phono Board

$249.99



Availability: In Stock
In Stock An In Stock item is available to ship normally within 24 business hours.
Preorder A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release "TBA." This means that release date is yet "To Be Announced". The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.
SKU:
CRESEQ3

Add phono playback to your Creek Amplifiers with this High-Quality Creek Sequel Mk3 Phono Board! Installation is quick and easy and allows compatibility with High Output MM Cartridges ranging from 0.9-5mV.

Enjoy Your Vinyl Collection With Your Creek Amplifer

Creek Audio has always been a fan of the vinyl disc. For those consumers who have an interest in enjoying this alternative source of high quality music, there are few amplifiers available today equipped to deal with this as standard. All Creek integrated amplifiers, from 1993 have been designed to accept plug-in Phono modules, to enable vinyl disc reproduction.

Compatabile With a Wide Range of Cartridges

The new generation Sequel mk3 circuitry has been developed to simplify the user experience and provide flexibility to match various types of cartridge in one module. Not only can it be switched for 40dB or 50dB gain, the user can select 100pF or 200pF input capacitance and IEC low frequency roll-off, with a simple piano key switch on the PCB. The EVOLUTION amp's display will automatically show Phono, when the amp is fitted with the Plug-in module and selected for that input.

The SEQUEL Mk3 can also be used to enable vinyl input on the following Creek Amplifiers

  • Evolution 50A
  • Evolution 100A
  • Destiny 2 integrated amplifier
  • Evolution 2 integrated amplifier
  • Evolution 5350 integrated amplifier
  • Classic 5350SE Integrated amp
  • 5350SE
  • 5350R and 5350 Integrated amps
  • 5250
  • 5250R and 5250SE integrated amps
  • 4330 and 4330SE Integrated amps but not mk2 versions
  • 4240 and 4240SE Integrated amps

Technical Specs

INPUT IMPEDANCE: 47k Ohms
GAIN: 40 dB (x100) suitable for 2.5 to 5.0mV output range
GAIN: 50 dB (x316) suitable for 0.9 to 2.5mV output range
FREQUENCY RESPONSE: 10 Hz to 20 kHz +/- 0.5 dB
OPTIONAL LOW FREQUENCY: EQ: RIAA (flat) or IEC: 7950 -(20 Hz roll-off)
INPUT CAPACITANCE: 100pF or 200pF, optional
SIGNAL TO NOISE RATIO: 80 dB at 40dB or >70dB at 50dB gain
OVERLOAD MARGIN: 15 dB, limited by pre-amp input overload
TOTAL HARMONIC DISTORTION: <0.005%

All Creek products carry a two year limited warranty against manufacturing defects
Description

Add phono playback to your Creek Amplifiers with this High-Quality Creek Sequel Mk3 Phono Board! Installation is quick and easy and allows compatibility with High Output MM Cartridges ranging from 0.9-5mV.

Enjoy Your Vinyl Collection With Your Creek Amplifer

Creek Audio has always been a fan of the vinyl disc. For those consumers who have an interest in enjoying this alternative source of high quality music, there are few amplifiers available today equipped to deal with this as standard. All Creek integrated amplifiers, from 1993 have been designed to accept plug-in Phono modules, to enable vinyl disc reproduction.

Compatabile With a Wide Range of Cartridges

The new generation Sequel mk3 circuitry has been developed to simplify the user experience and provide flexibility to match various types of cartridge in one module. Not only can it be switched for 40dB or 50dB gain, the user can select 100pF or 200pF input capacitance and IEC low frequency roll-off, with a simple piano key switch on the PCB. The EVOLUTION amp's display will automatically show Phono, when the amp is fitted with the Plug-in module and selected for that input.

The SEQUEL Mk3 can also be used to enable vinyl input on the following Creek Amplifiers

  • Evolution 50A
  • Evolution 100A
  • Destiny 2 integrated amplifier
  • Evolution 2 integrated amplifier
  • Evolution 5350 integrated amplifier
  • Classic 5350SE Integrated amp
  • 5350SE
  • 5350R and 5350 Integrated amps
  • 5250
  • 5250R and 5250SE integrated amps
  • 4330 and 4330SE Integrated amps but not mk2 versions
  • 4240 and 4240SE Integrated amps

Technical Specs

INPUT IMPEDANCE: 47k Ohms
GAIN: 40 dB (x100) suitable for 2.5 to 5.0mV output range
GAIN: 50 dB (x316) suitable for 0.9 to 2.5mV output range
FREQUENCY RESPONSE: 10 Hz to 20 kHz +/- 0.5 dB
OPTIONAL LOW FREQUENCY: EQ: RIAA (flat) or IEC: 7950 -(20 Hz roll-off)
INPUT CAPACITANCE: 100pF or 200pF, optional
SIGNAL TO NOISE RATIO: 80 dB at 40dB or >70dB at 50dB gain
OVERLOAD MARGIN: 15 dB, limited by pre-amp input overload
TOTAL HARMONIC DISTORTION: <0.005%

All Creek products carry a two year limited warranty against manufacturing defects
