CS-100A Tube Integrated Amp

$3,999.99



Availability: Discontinued
In Stock An In Stock item is available to ship normally within 24 business hours.
Preorder A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release "TBA." This means that release date is yet "To Be Announced". The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of.
Awaiting Repress Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description.
Special Order A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.
SKU:
CAYCS100A

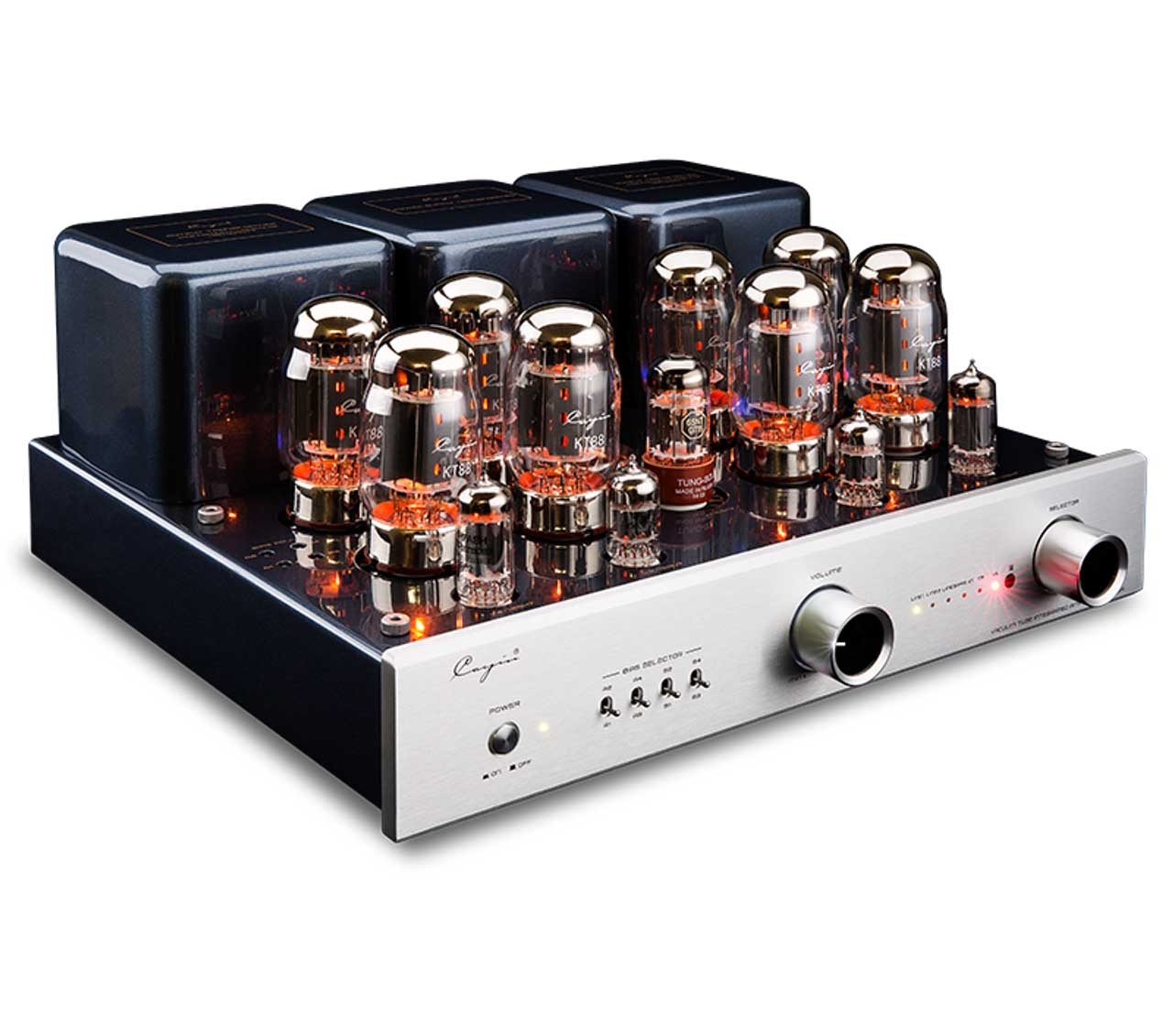

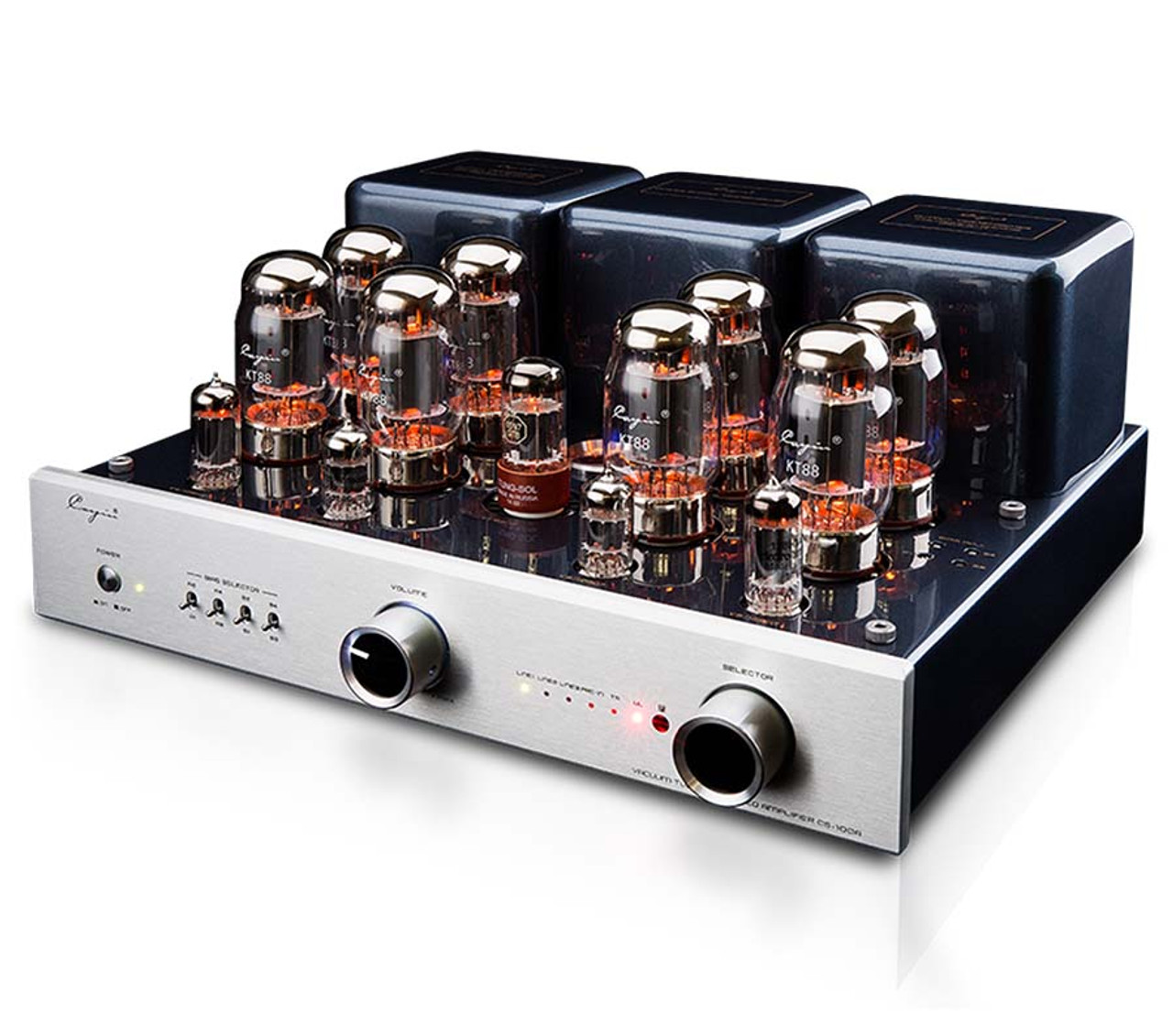

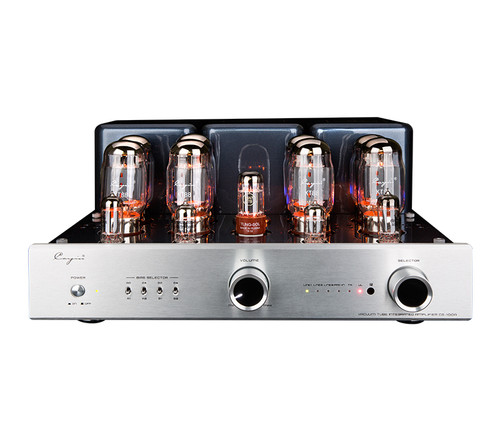

The Cayin CS-100A integrated tube amplifier features the unique ability to toggle between KT-88 and EL-34 output valves!

A Purpose for Every Tube

The CS-100A incorporates a 6SN7 tube for voltage amplification, 12AU7EH for phase inversion/voltage amplification and 12BH7EH for voltage amplification and driver stages, with KT-88 or EL-34 output valves.

Features

  • 80 watts per channel in Class AB Ultra-linear mode
  • 50 watts per channel in triode mode

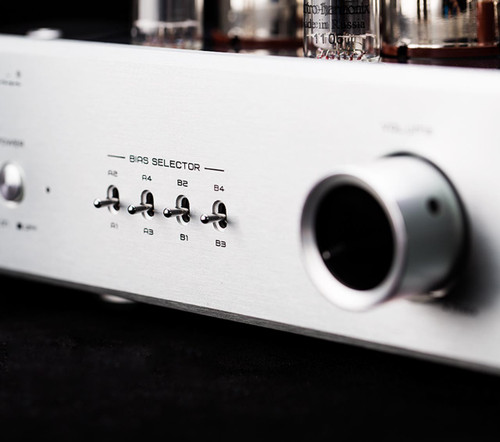

  • Onboard bias meter
  • Silver internal wiring

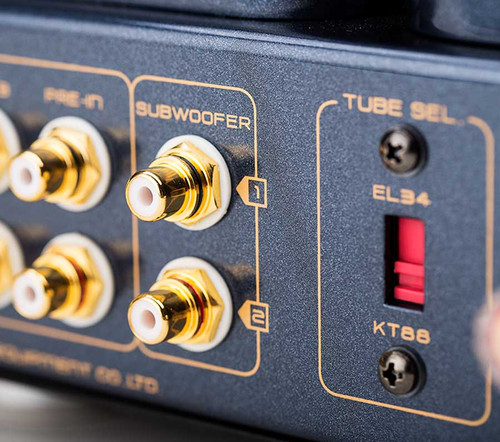

  • Switch on back to run either KT-88 or EL family tubes
  • Soft-Start circuitry protects the amplifier and extends life of internal components/tubes
  • High-grade Alps volume control
  • Audio Grade capacitors
  • Carbon film resistors
  • Toroidal transformer for power supply
  • Wide-bandwidth EI output transformers

Technical Specifications

Model: CS-100A
Frequency Response: 8Hz - 75kHz (-3dB)
THD: 1%(1kHz)
Power Supply: Custom made Torroidal
Power Output: 50W+50W (Triode), 80W+80W (Ultra-linear)
Power Consumption: <480w
S/N Ratio: 92dB
Dimensions: 420mm x 200mm x 394mm (WxDxH)
Net Weight: 30kg
Input Sensitivity: 450mV (Integrated), 1300mV (Pre-In)
Input Inpedance: 100K Ohm
Output Impedance: 4 Ohm, 8 Ohm
Tubes: 1 x 6SN7, 2 x 12BH7EH, 2 x 12AU7EH, 8 x KT88/EL34

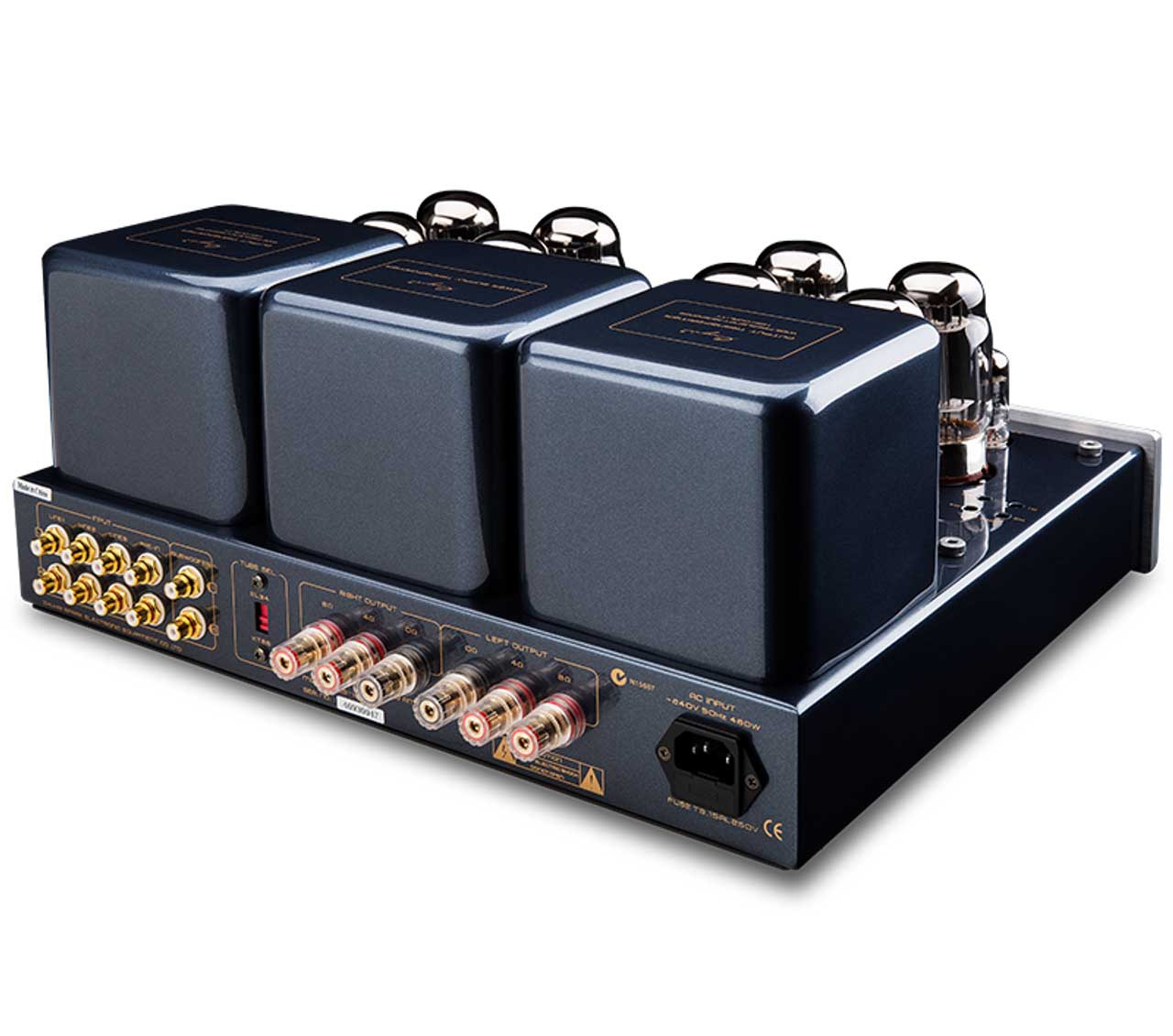

Input Terminals: Line 1, Line 2, Line 3, Pre-In
