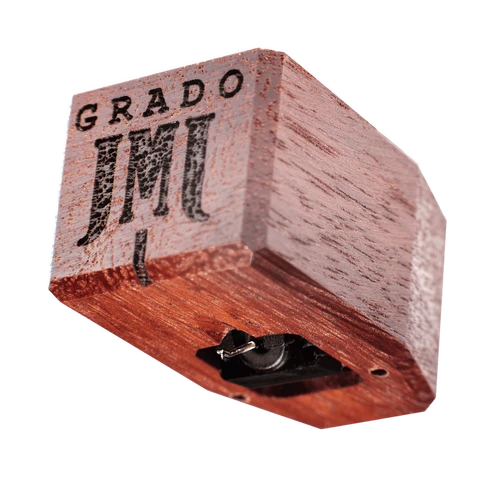

Grado Timbre Master3 Cartridge (4.8mV, High Output)
Grado Timbre Master3 Cartridge (4.8mV, High Output) Grado Timbre Master3 Cartridge (4.8mV, High Output) Grado Timbre Master3 Cartridge (4.8mV, High Output)
:

Share:

Grado Timbre Master3 Cartridge (4.8mV, High Output)

$1,000.00



Availability: Backordered
In Stock An In Stock item is available to ship normally within 24 business hours.
Preorder A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release "TBA." This means that release date is yet "To Be Announced". The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.
SKU:
GRATIM3MAH
UPC:
GRATIM3MAH

This product can only be shipped to U.S. addresses.
Retip: $670

Cured Jarrah For The Cure?

Nearing the top of the Timbre Series, the Master3 achieves optimal sonic quality due to an intricate curing process and specialized materials reserved for Grado's best cartridges

On Reserve.

Some practices Grado reserves for cartridges near the top of the line, and it starts here. To achieve Grado's desired sound, they experimented with multiple longer curing processes that differ from the Opus3, Platinum3, and Sonata3 while using more modified materials. Each Master3 is individually calibrated after being built.

The Materials

To make the Timbre Series work as a whole, Grado created a way for Jarrah, diamonds, and a twin magnet system to integrate with their Flux-Bridge™. Grado modified their four piece OTL cantilever technology to achieve a 10% tip mass reduction over the Prestige Series and use ultra-high purity long crystal (UHPLC) oxygen free copper wire in the coils. The Sonata3 uses a specially Grado designed nude elliptical diamond.

Extreme Precision

Grado has combined newly developed coil winding techniques with decades-old disciplines. A new two-step shielding process brings not only exact unison between the four coils but an unobstructed path for a cleaner signal. The music is allowed to travel undistorted through the coils, greatly reducing mechanical noise while improving tracking. There is an extreme clarity over the full frequency range, with absolutely no stridency or shrillness. Precisely hand tipped with a diamond, a great amount of care go into each cartridge Grado builds.

Built from Jarrah

After the Sonata3 cartridge is crafted, it is then placed inside a Australian Jarrah housing. Jarrah is necessary for the majority of Timbre Series with its ability to produce surgically precise clarity without losing any depth. Through a variation of thermal aging processes, the housing gains the ability to better dampen and control the resonant frequencies.

Hand-Built in Brooklyn

Each Sonata3 is hand-built by Grado's team in Brooklyn, as it has been for decades. After a specialized process that brings it to life, they are fine tuned for everything from entry-level turntables up to the highest-end stereo systems, the solid mass of the wood helps keep the Sonata3 steady and producing the Grado signature sound. They started building cartridges on a kitchen table in 1953, and every experience since then has led to the creation of the Sonata3.

The arrival of a cured mahogany cartridge identical to the one I already owned found me unprepared for the next vaulting leap in my listening education. Within a week of auditioning the 0.5 mv Statement Reference, I began to believe that both my new and vintage vinyl had received a rite of purification, cleansed and made better than new. It was also as though the tiny hairs in my inner ear had been degunked, and in a stroke my hearing was perfectly clear.
-Lang Phipps, Audio Reviewer

Technical Specifications

Body Australian Jarrah Wood
Cantilever Machined Boron / Diamond Tip
Input Load 10k-47k ohms
Cartridge Weight 10 grams
Tracking Force 1.6-1.9 grams
Compliance 20μm/mN
Channel Seperation Average 30db - 10-30k Hz
Controlled Frequency Response 10-60 kHz
Capacitive Load Sensitivity None
Builds High Output, Low Output, Mono

High/Low Output Comparison

High Output Low Output
Output 4.8mV @5 CMV (45) 1.0mV @5 CMV (45)
Inductance 55mH 6mH
Resistance 660 ohms 70 ohms
