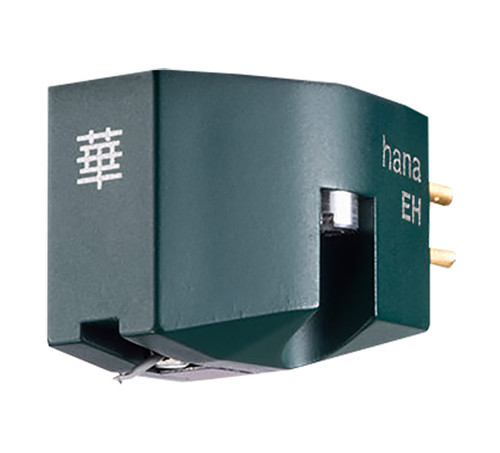

Hana EH Elliptical MC Cartridge 2.0mV (Open Box)
Brand: Hana

Share:

Hana EH Elliptical MC Cartridge 2.0mV (Open Box)

$379.99 $474.99
(You save $95.00 )

Availability: Discontinued
In Stock An In Stock item is available to ship normally within 24 business hours.
Preorder A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release 'TBA.' This means that release date is yet 'To Be Announced'. The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.

SKU:
HANAEHO
UPC:
HANAEHO

Save 20% on this open box cartridge.
Full warranty included!

The Hana EH high-output moving coil cartridge represents the best way to upgrade from "starter" MM cartridges that typically come packaged with most entry-level turntables. Weighing in at only 5 grams, and possessing great tracking ability, the Hana EH cartridge's distinctive moss green body houses a special cross-coil generator, reproducing great bass and dynamics. The elliptical stylus mounted to an aluminum cantilever easily extracts the music in the groove as it effortlessly traces you LPs.

The EH is plug-and-play compatible with MM phono stages found in integrated amplifiers and AV receivers.

Technical Specifications

Body

Material ABS
Finish Painted

Cantilever Assembly

Cantilever Aluminum
Stylus Synthetic Elliptical
Armature Material Permalloy
Armature Shape Cross

Magnetic Circuit

Parts Material Pure Iron
Magnet Alnico
Terminal Plate ABS
Terminal Pin Gold Plated

Coil

Coil Impedance 130O/1kHz
Output 2mv/1kHz
Coil Wire Material 4N Copper
Terminating Impedance >47kO

Treatment

Cryogenic None

Specification

Frequency Response 15-25,000Hz
Output Balance <2dB/1KHz
Channel Separation 25dB/1KHz
Tracking Force Weight 2g
Trackability 70μm/2g
Dynamic Compliance 10 x 10(-6) cm/dyne (100Hz)
estimated 16 x 10(-6) cm/dyne (10Hz)
Cartridge Weight 5g
