Can only ship to USA address!
| Save 10% when purchased with turntable or ANY other brand cartridge trade |
$675.00 |
| Save $150 Trading up from Hana E to S Series |
$600.00 |
| Save 30% re-tip exchange |
$525.00 |
Save on Hana Cartridges from October 1 - January 31, 2023!
| Save $250 Trading up from Hana E Series |
$500.00 |
| 30% re-tip exchange |
$525.00 |
Trade instructions: If you purchase this cartridge with a trade-in, please note when you check out your total will show the normal sale price of this item and NOT the trade in price. However, when we process your order, you will be charged ONLY the trade in price. When you have received your new Hana cartridge, please carefully pack and ship your trade-in cartridge to us (see our website for address)

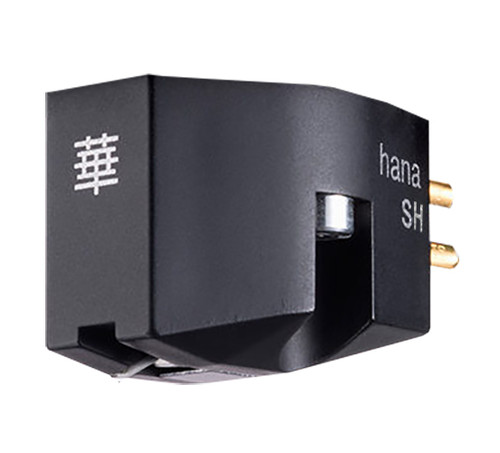

The Hana SH combines high output with high resolution, courtesy of its special coil design and Shibata stylus. Compatible with standard MM phono stages, a high-output MC provides dynamics, drive, and excellent stereo imaging.
With over 50 years experience in cartridge design and manufacture, Excel Sound builds many of the most highly regarded high-output MC cartridges.
Technical Specifications
Body
| Material |
ABS |
| Finish |
Painted |
Cantilever Assembly
| Cantilever |
Aluminum |
| Stylus |
Shibata Nude Diamond |
| Armature Material |
Permalloy |
| Armature Shape |
Cross |
Magnetic Circuit
| Parts Material |
Pure Iron |
| Magnet |
Alnico |
| Terminal Plate |
ABS |
| Terminal Pin |
Gold Plated |
Coil
| Coil Impedance |
130Ω/1kHz |
| Output |
2mv/1KHz |
| Coil Wire Material |
4N Copper |
| Terminating Impedance |
47kΩ |
Treatment
Specification
| Frequency Response |
15-32,000Hz |
| Output Balance |
<1.5dB/1KHz |
| Channel Separation |
28dB/1KHz |
| Tracking Force Weight |
2g |
| Trackability |
70μm/2g |
| Dynamic Compliance |
10 x 10(-6) cm/dyne (100Hz)
estimated 16 x 10(-6) cm/dyne (10Hz) |
| Cartridge Weight |
5g |
